Description

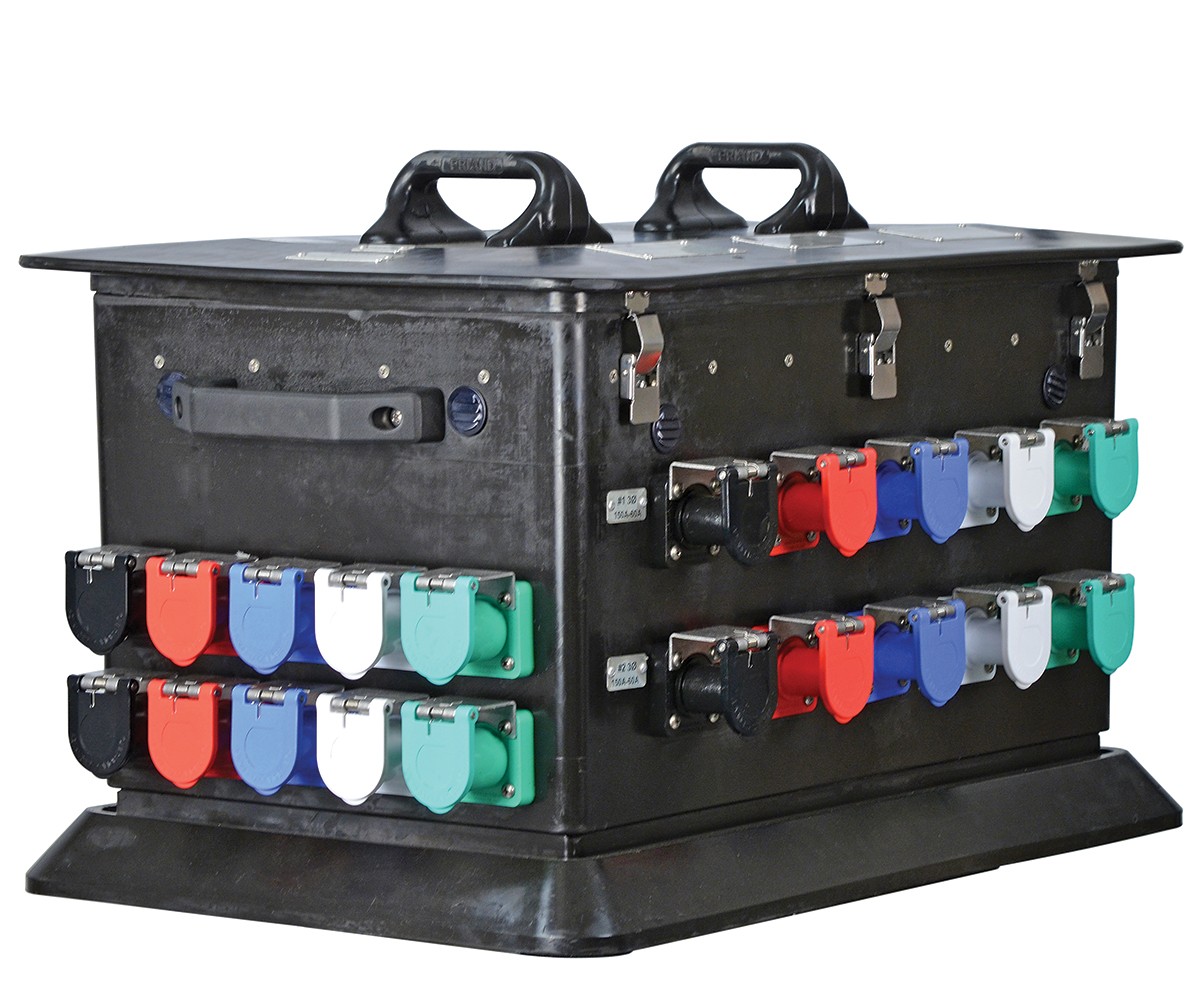

Lex PH800G3-N1J-22AV2AX 800 Amp Powerstation Load Master with Adjustable Output Circuits, Weather Resistant
Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: PH800G3-N1J-22AV2AX
Rating: 800 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
Output: (4) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets
Feed Thru: None
Main Breaker: None

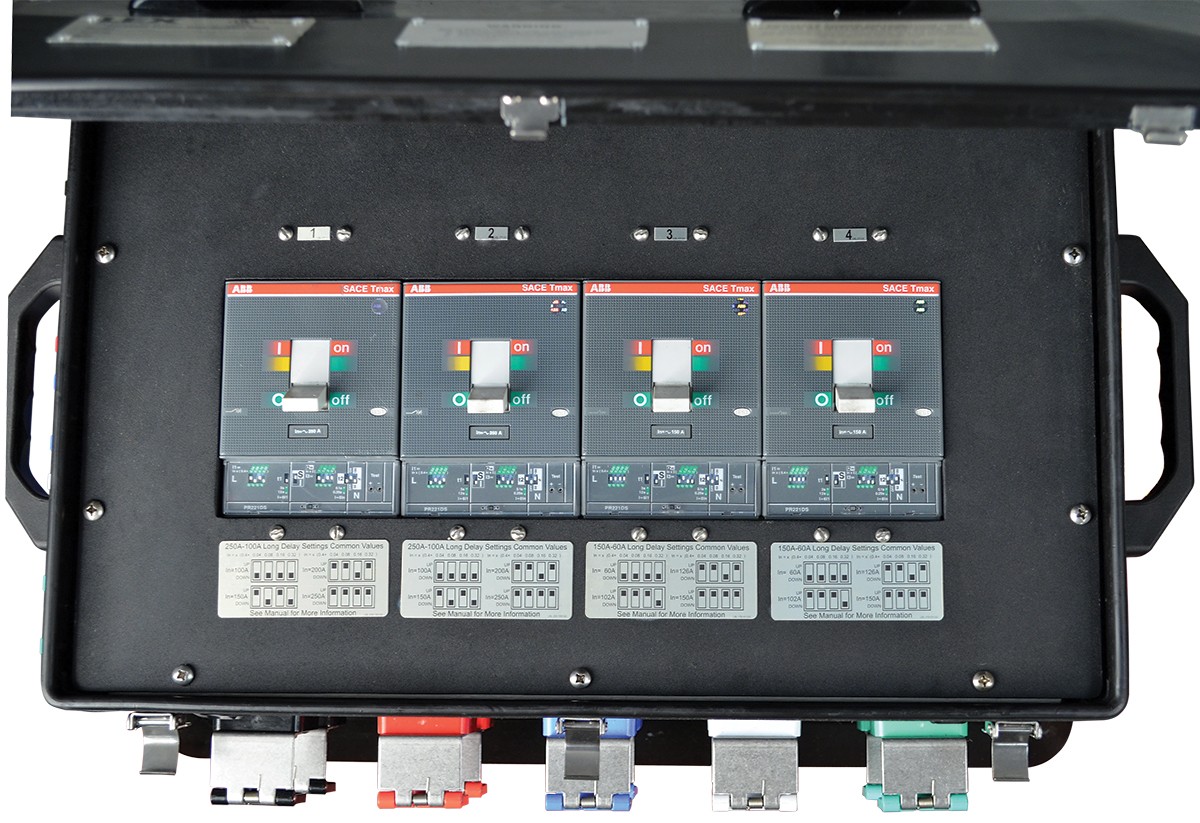

Overcurrent Protection: (2) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker; (2) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
Dimensions: 27.50″L x 18.50″W x 18.00″H
Weight: 164.0 lbs
Agency Approval: cULus Listed
Markets Served: Outdoor Events, Motion Picture and Television Production
Part Number: PH800G3-N1J-22AV2AX
Rating: 800 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (2) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount inlets
Output: (4) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, BRBWG color-coded, panel mount outlets
Feed Thru: None
Main Breaker: None
Overcurrent Protection: (2) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker; (2) 100-250 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
Dimensions: 27.50″L x 18.50″W x 18.00″H
Weight: 164.0 lbs
Agency Approval: cULus Listed
Markets Served: Outdoor Events, Motion Picture and Television Production
Features:
– Fed directly from a power source, the PowerHOUSE™ Load Master™ portable power distribution box distributes up to 800 Amps of 3 Phase power into (3) circuits
– Each circuit provides adjustable overcurrent protection for the output receptacles to match the specific load requirements.
