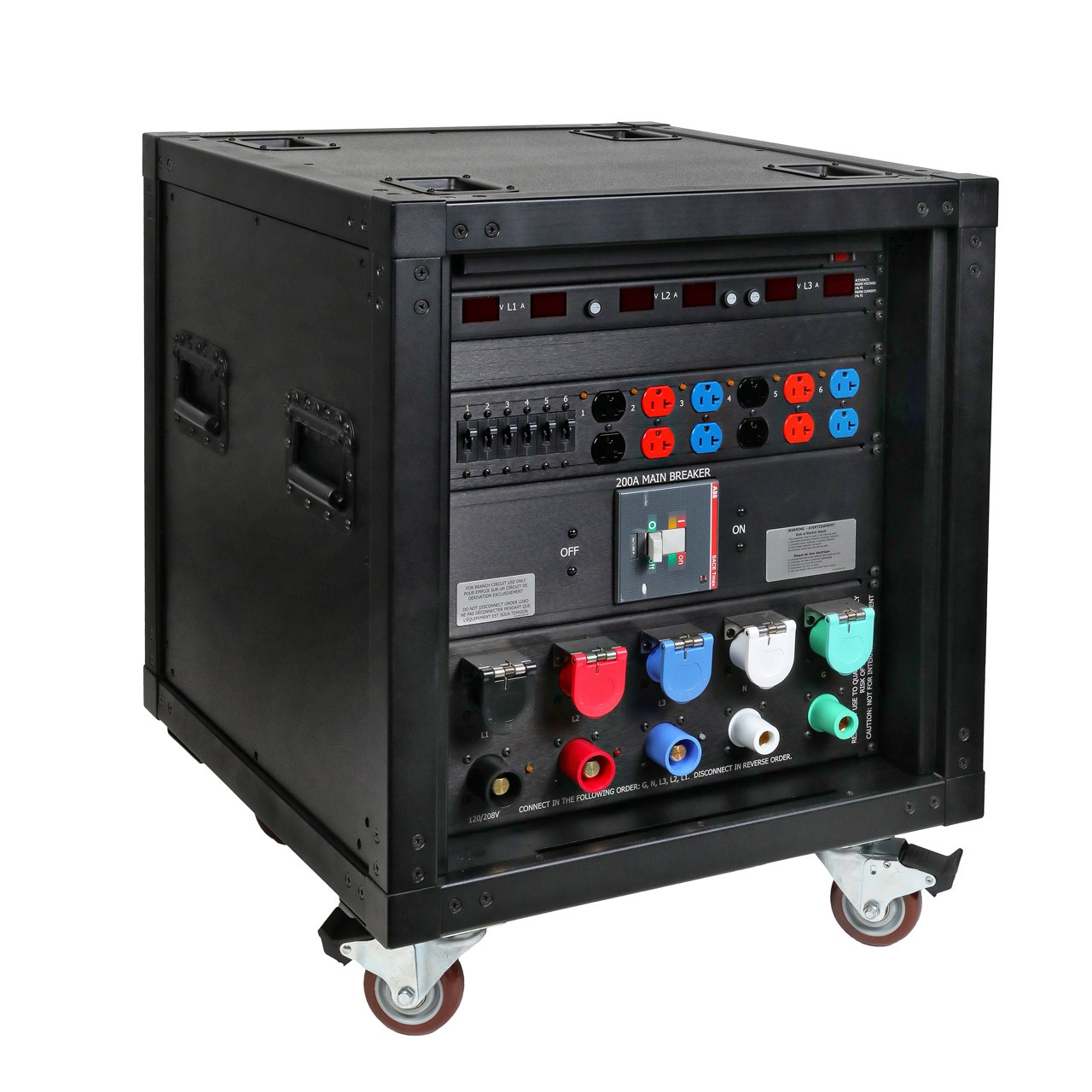

Brand: Lex PowerRACK™
Part Number: PRMK12D-MR4U-2LV
Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cam-type inlets, panel mount
Feed Thru: Yes
Main Breaker: (1) 100-250 Amp, 600 VAC triple-pole, adjustable electronic, branch-rated circuit breaker
Output: (4) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 125 VAC, 19-pin locking receptacle, panel mount, cover doors, paralleled and (4) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 208 VAC, 19-pin locking receptacle, cover doors, panel mount, paralleled; (3) NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking receptacles, panel mount; (6) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
Overcurrent Protection: (24) 20 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breakers; (3) 30 Amp, 120/208 VAC, three-pole, hydraulic magnetic, branch-rated circuit breakers; (6) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Rolling Rack
Dimensions: 26.0″ L x 24.0″ W x 30.0″ H
Weight: 238.0 lbs
Agency Approval: cETLus Listed
Markets Served: Live Event, Motion Picture, Theatre, TV/Film Production, Worship Venues, Convention Centers, Rentals

-Extruded aluminum frames combined with high density polyethylene (HDPE) enclosure panels create lightweight yet remarkably strong and extremely durable rack enclosures
-Front and back rack doors have “snap-in” latches for ease of access
-All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
-All 19″ rack panels are laser engraved for clear and concise identification
-100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
-LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification
