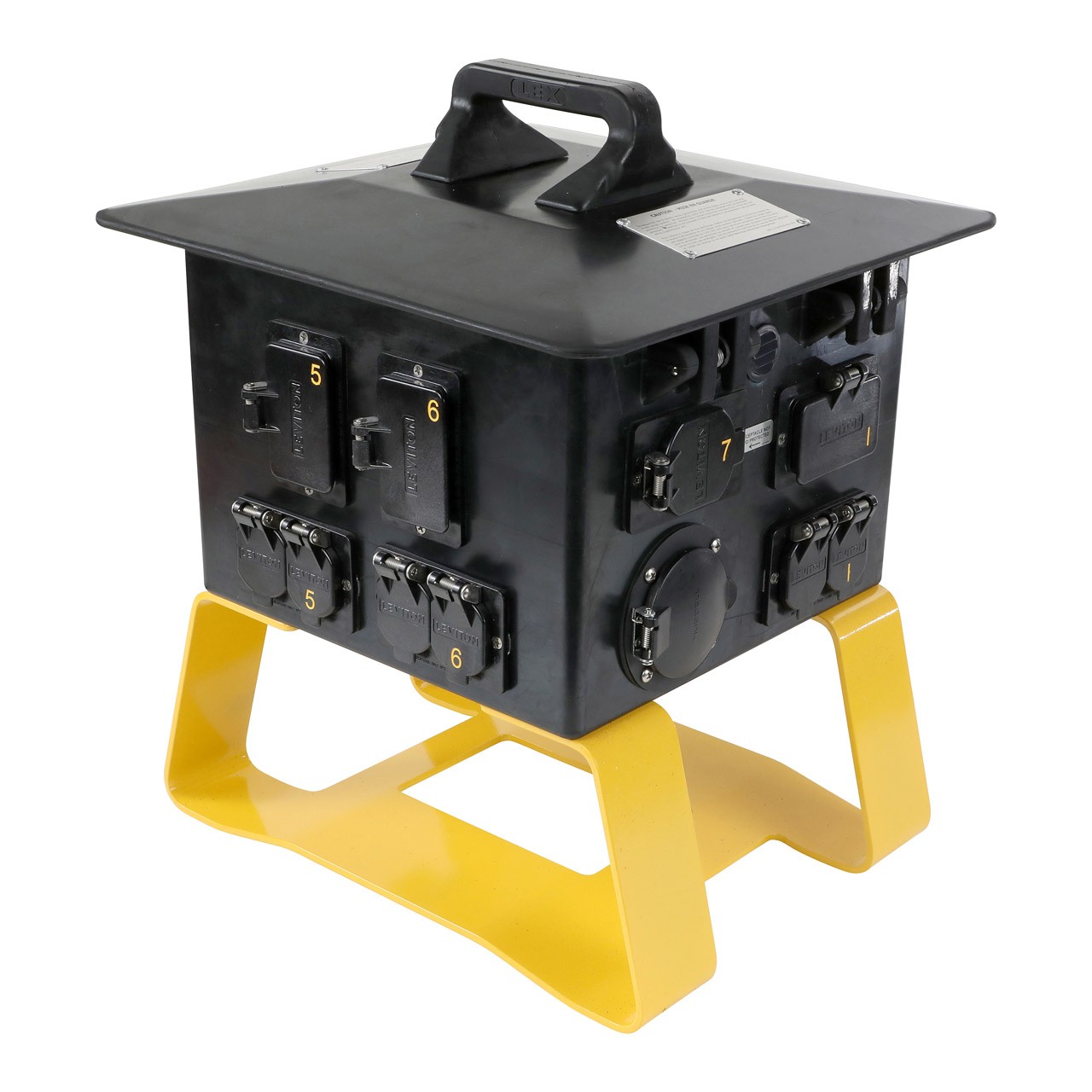

Brand: Lex PowerHOUSE™
Part Number: T2-A2-6B1E
Rating: 50 Amp, Double-phase (H,H,N,G), 3-pole, 4-wire, 125/250Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input:(1) California Style CS63, 50 Amp, 3-pole, 4-wire, 125/250 VAC, locking inlet, cover door, panel mount
Feed Thru: None
Main Breaker: None
Output: (6) NEMA 5-20, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount, GFCI open-neutral protected; (1) NEMA L6-30, 30 Amp, 2-pole, 3-wire, 250 VAC, locking receptacle, cover door, panel mount
Overcurrent Protection: (6) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers; (1) 30 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breaker
Enclosure Type: Terrapin II™
Dimensions: 14.25″L x 14.25″W x 17.50″H
Weight: 29.0lbs
Agency Approval: cULus Listed
Markets Served: Electrical Distribution, Maintenance, Shipbuilding, Generator Rental, Construction, Outdoor Events, Shelters

-Meets UL, NEC and OSHA requirements for events and generator rental
-Meets OSHA Regulation 20 Part 1926, Subpart K standards for open-neutral GFCI protection for enhanced safety
-Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion for years of trouble-free service versus painted metal
-Thermal magnetic circuit breakers are located under a heavy duty rubber, waterproof, self-closing lid for enhanced breaker protection
-Weather resistant GFCI protection helps to prevent unsafe operating conditions and nuisance tripping
-GFCI module possesses LED beacon to indicate device status
-Locking receptacles provide secure connections that prevent accidental separation
-cULus Listed and TYPE 3R Rainproof for outdoor use
-Feed thru feature allows multiple spider box electrical units to be placed along one feed
-Spring-loaded covers protect receptacles and inlets from dirt and moisture intrusion
-Lightweight and compact for easy portability and storage
-Heavy-duty aluminum legs position the box at the NEC regulatory height of 6 inches while allowing for storage and transport stacking
-Molded handle enhances portability while improving stackability of multiple units
