Catalog Number: U3306-X-HSP
UPC: 784572292741
Length (IN): 4.844
Width (IN): 13
Height (IN): 28.25
Brand Name: Milbank
Type: Ringless Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: 600 Volts Alternating Current
Amperage Rating: 200 Continuous Ampere
Phase: 3 Phase
Frequency Rating: 60 Hertz
Size: 4.844L x 13W x 28.25H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry: Overhead or Underground
Terminal: 3/8 Inch Stud
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 7 Terminal

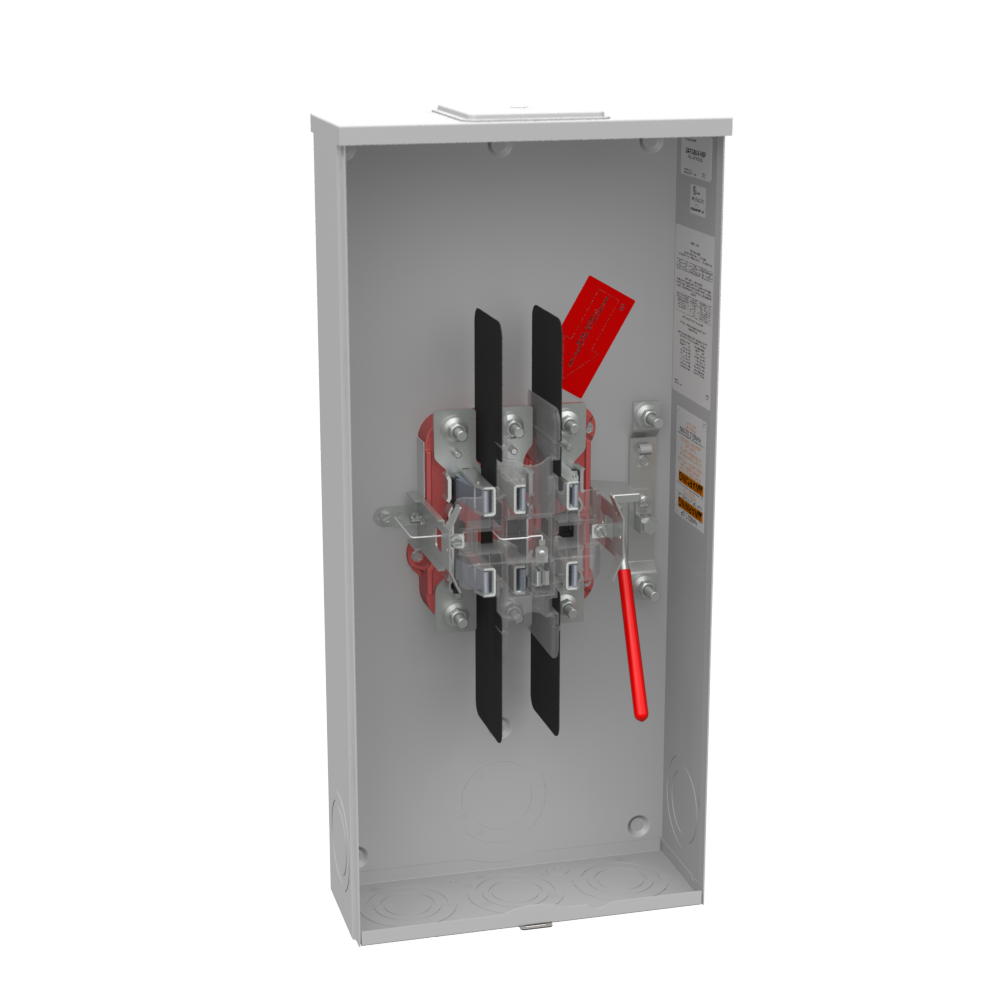

Bypass Type: Lever Bypass
Number of Meter Positions: 1 Position
Equipment: Ground Ground Lug
Hub Opening: Large Closing Plate
Number Of Receptacles: 0
