Catalog Number: U7040-XL-TG-5T-HSP
UPC: 784572768734
Length (IN): 4.125
Width (IN): 11
Height (IN): 14.563
Brand Name: Milbank

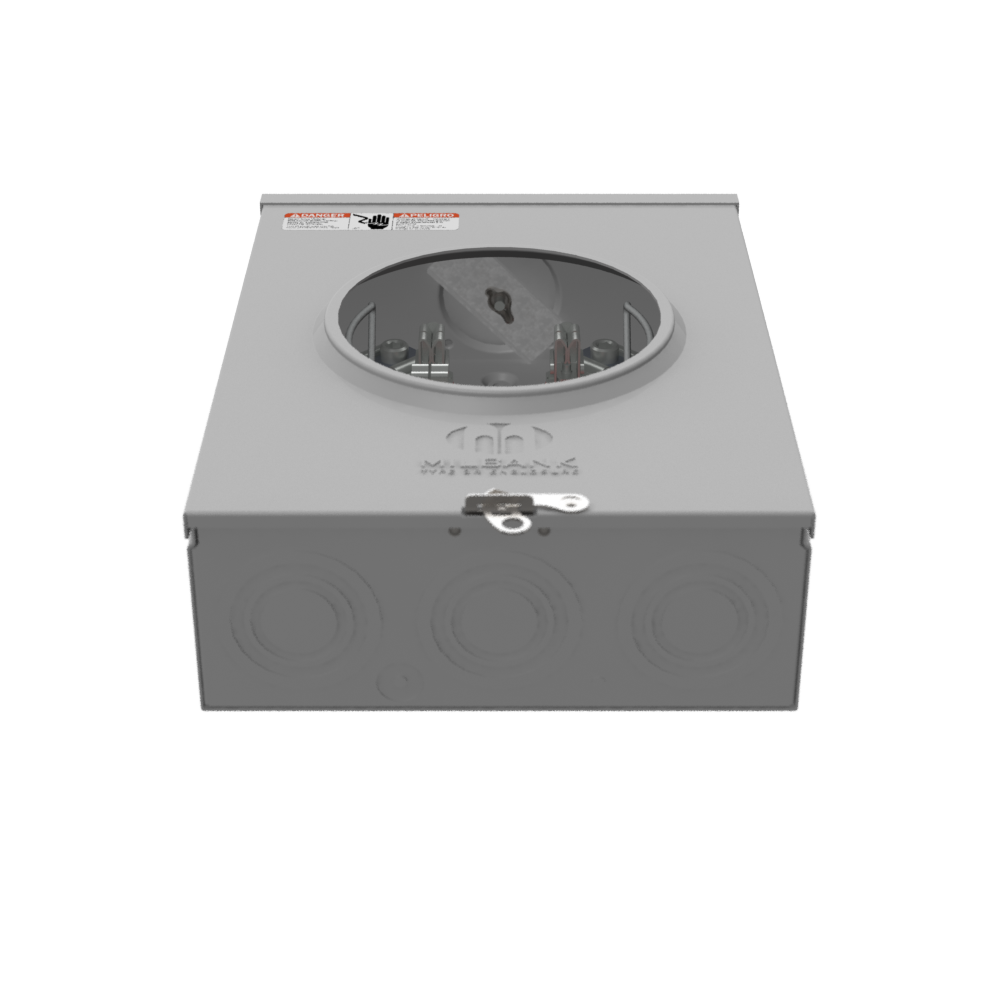

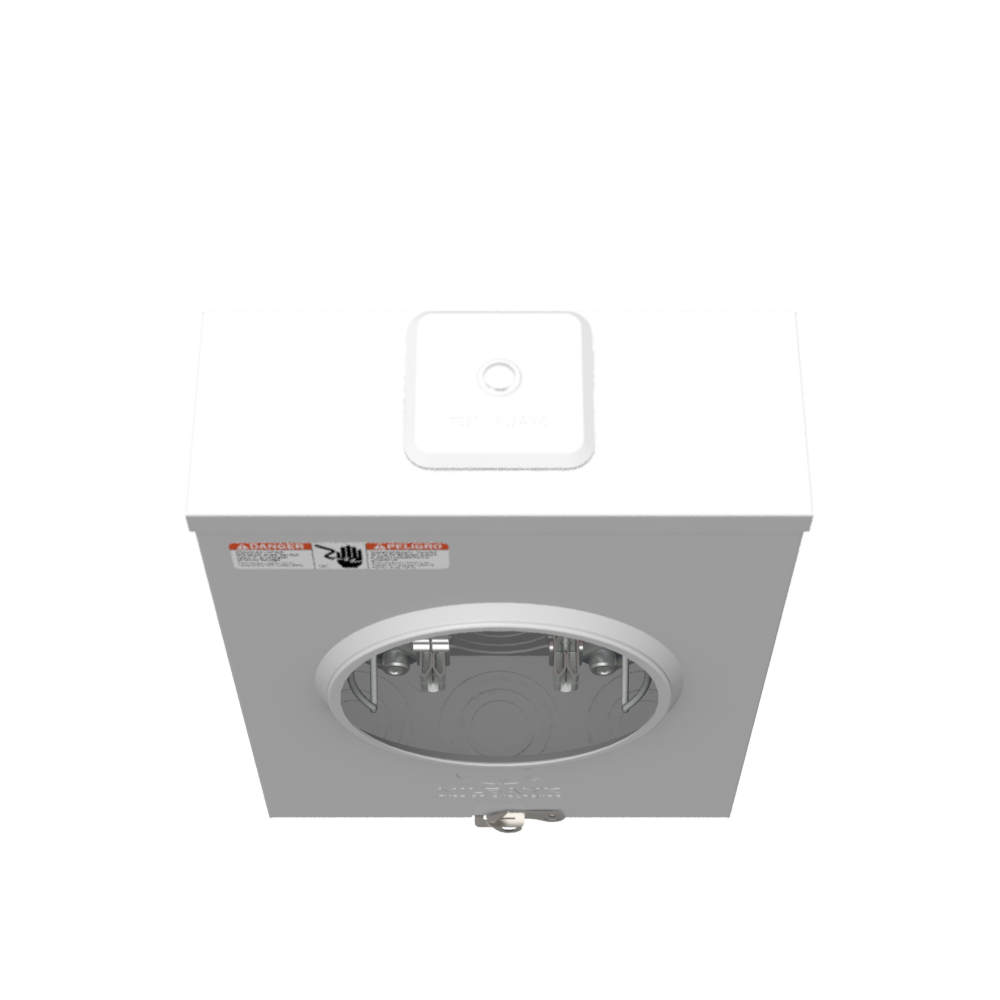

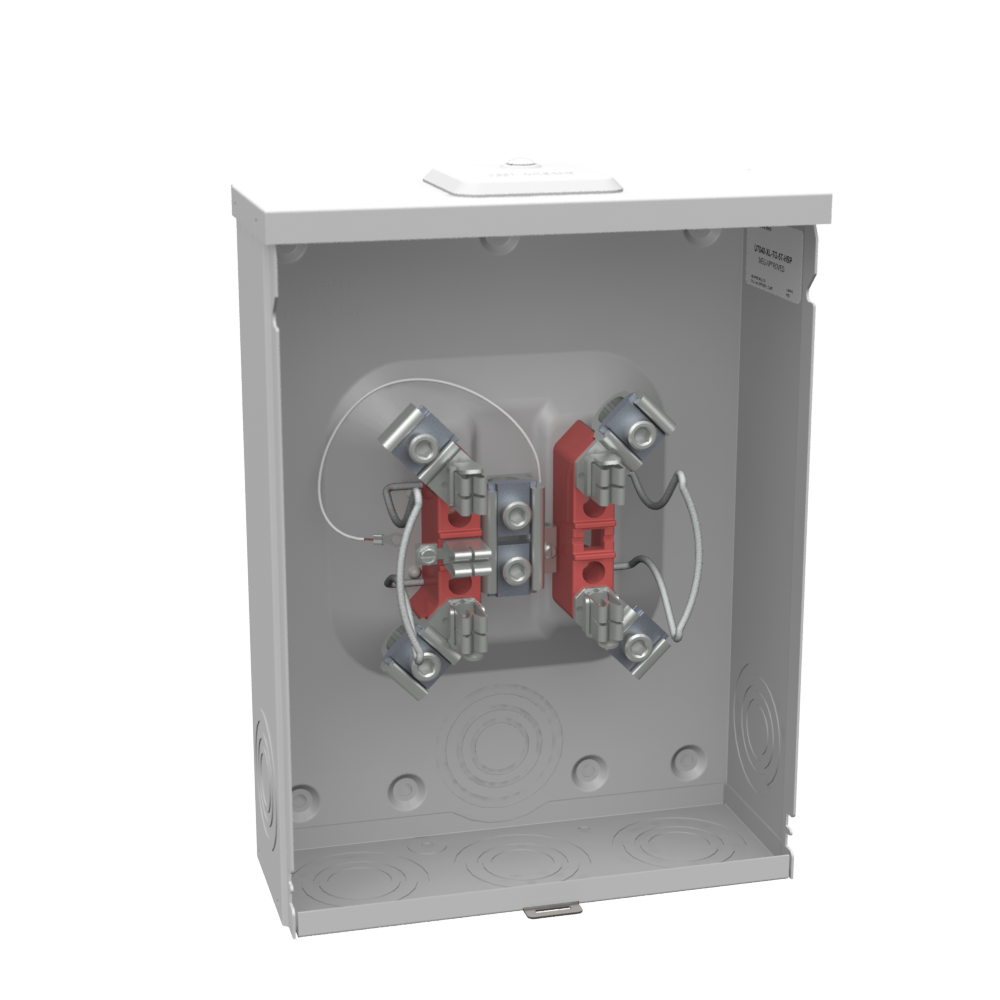

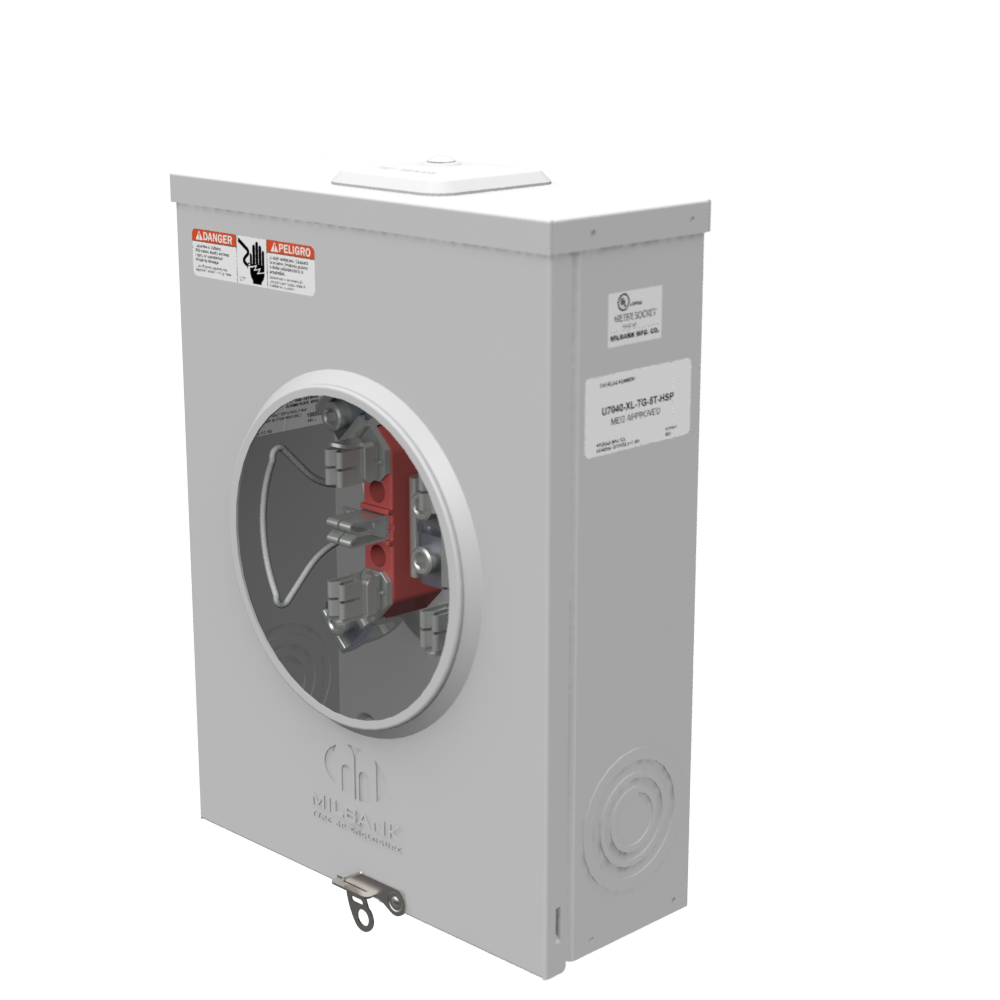

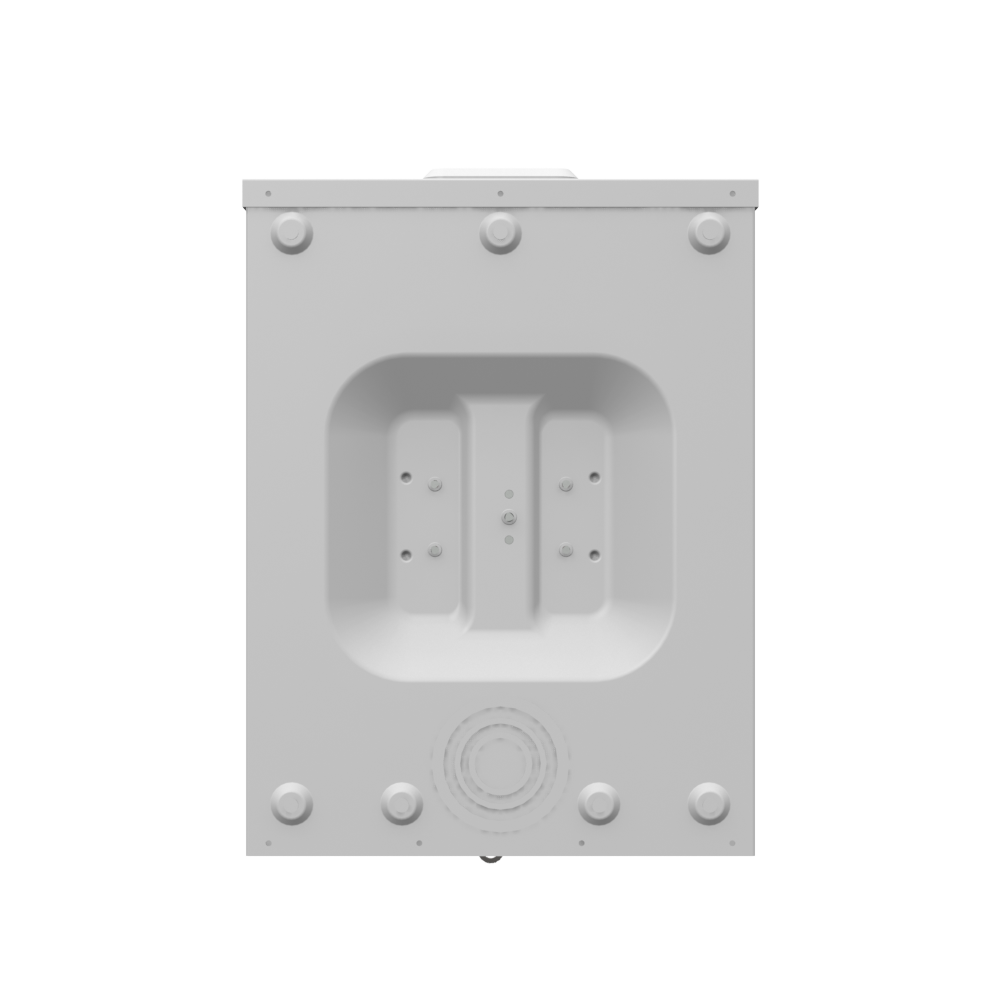

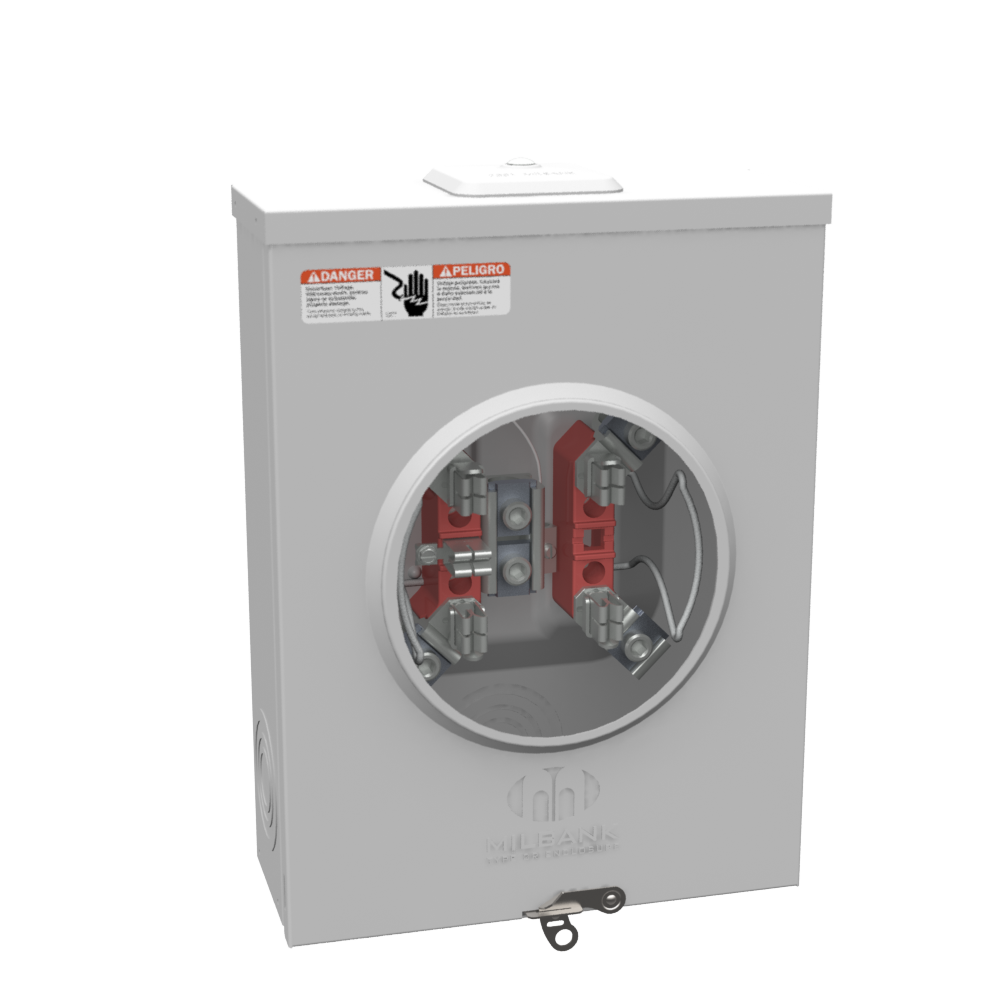

Type: Ringless Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: Up to 600 Volts Alternating Current
Amperage Rating: 200 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 4.125L x 11W x 14.563H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry Overhead or Underground
Terminal: Lay in
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: 1 Position
Equipment: Ground Bonded Neutral
Hub Opening: Small Closing Plate
Line Side Wire Range: 6 AWG – 350 kcmil
Load Side Wire Range: 6 AWG – 350 kcmil
Number Of Receptacles: 0
