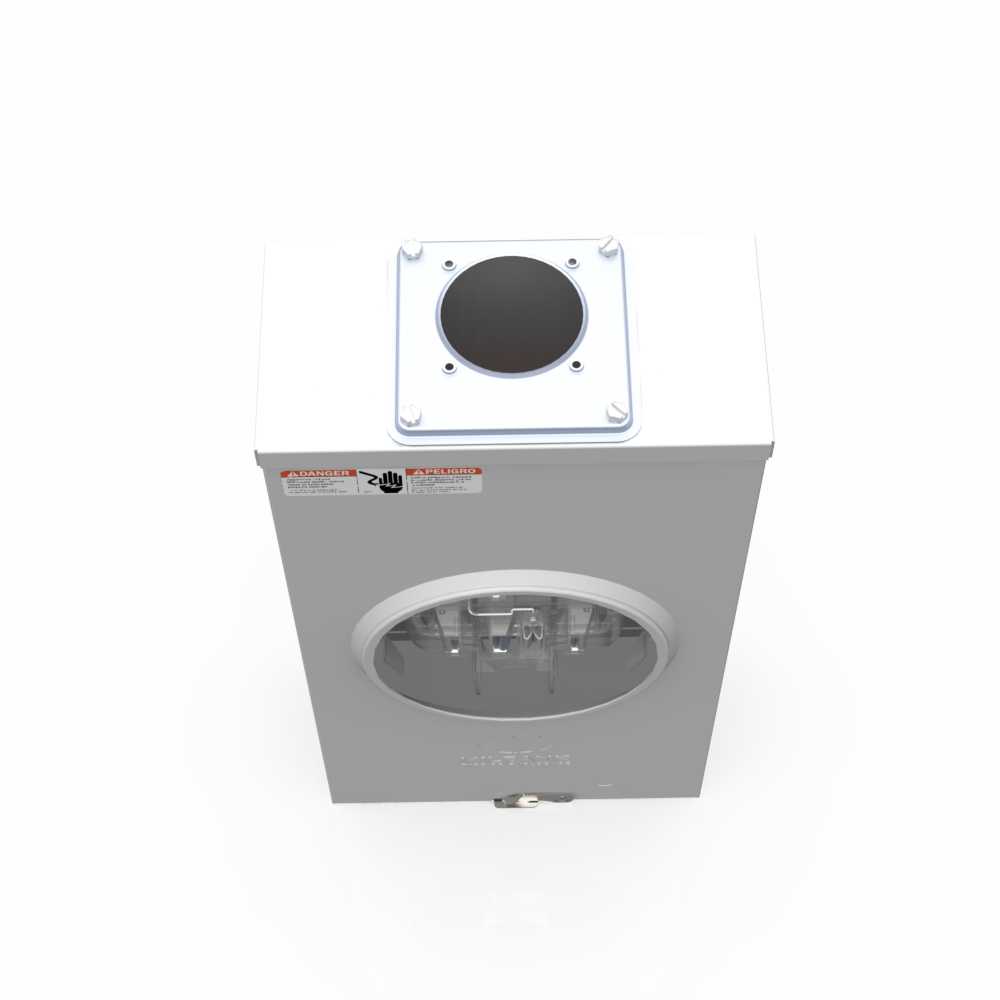

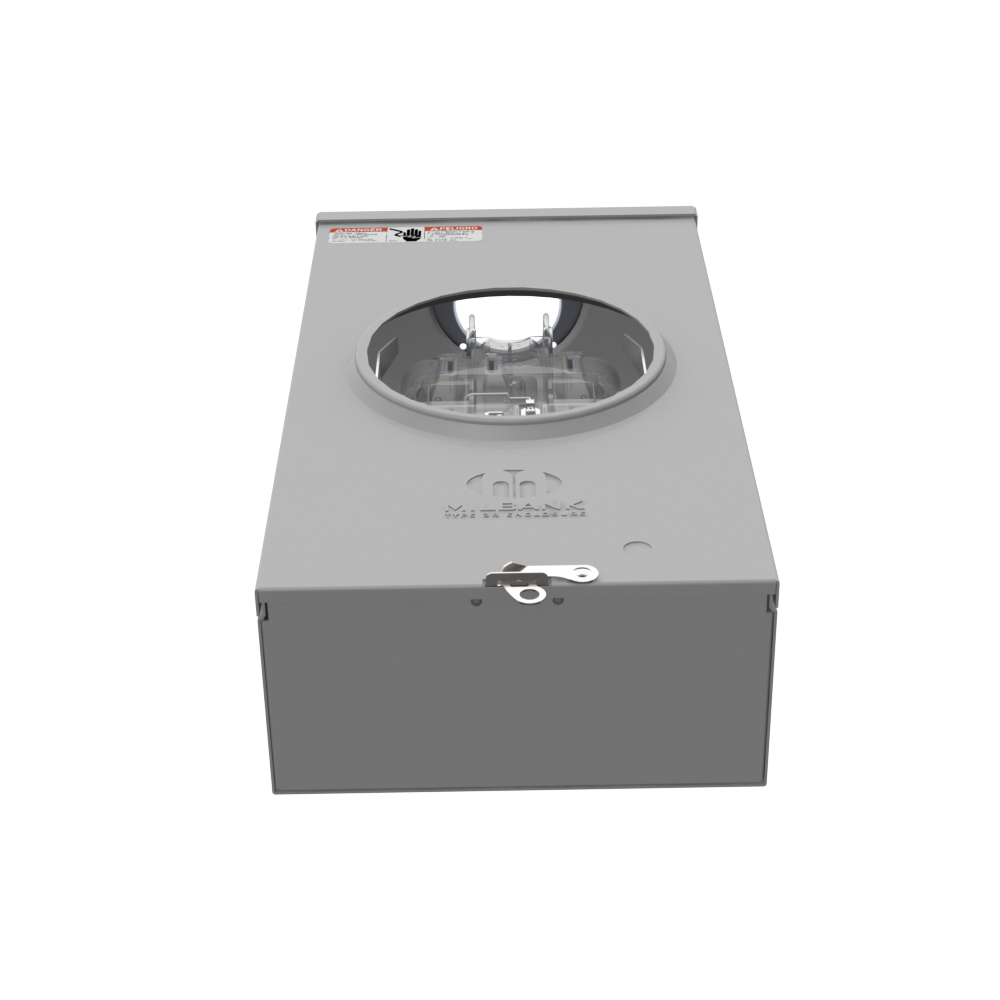

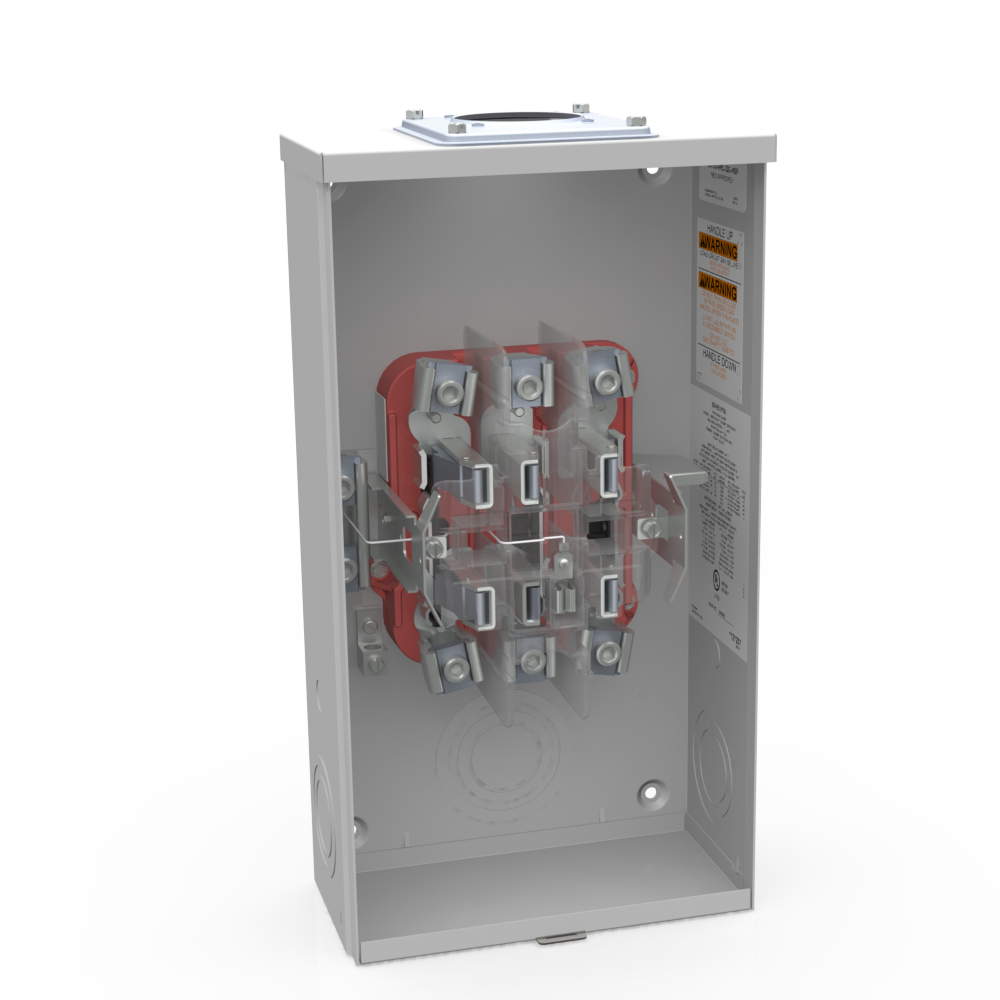

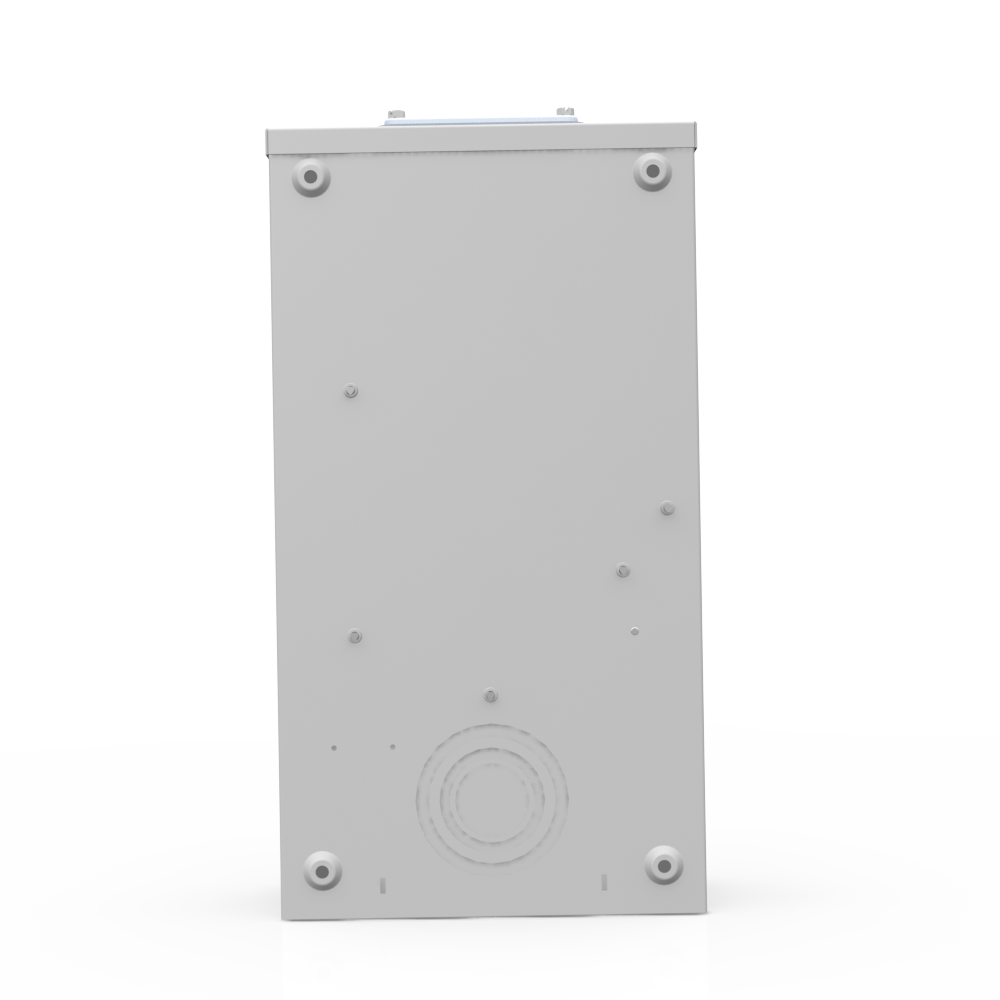

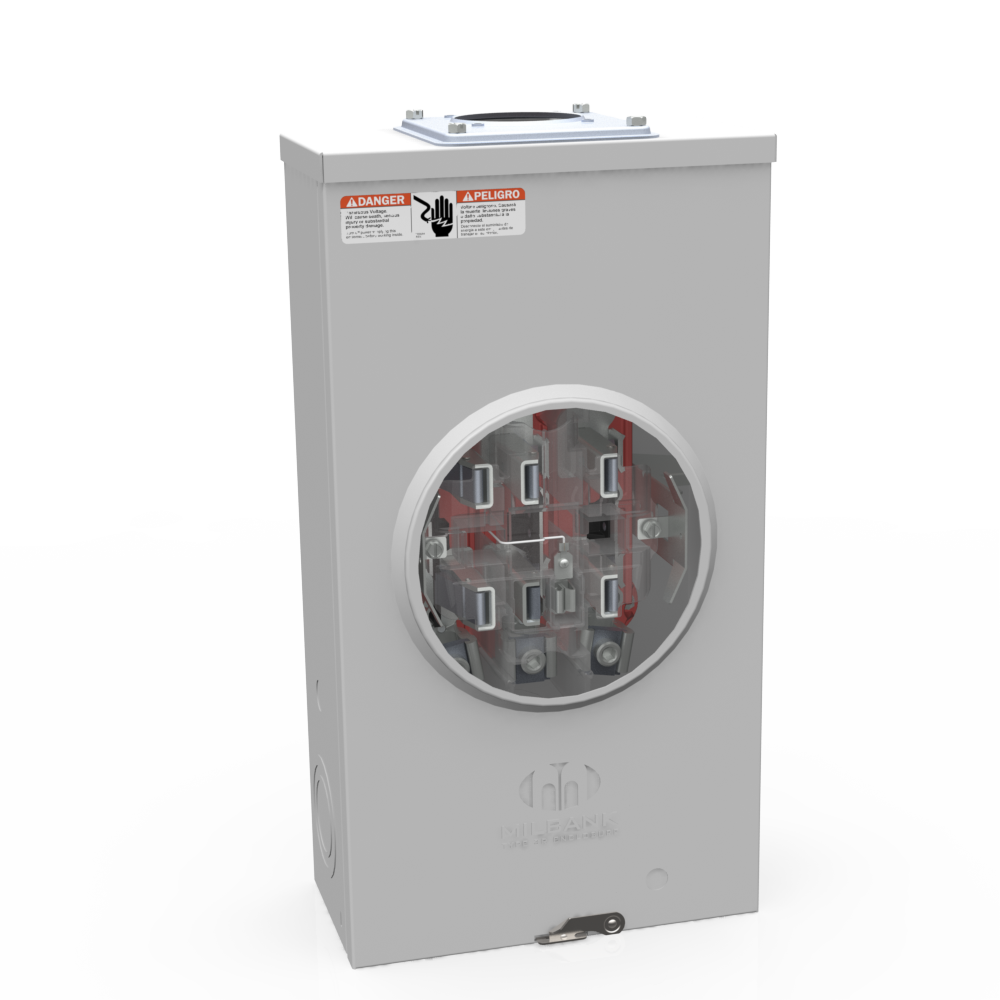

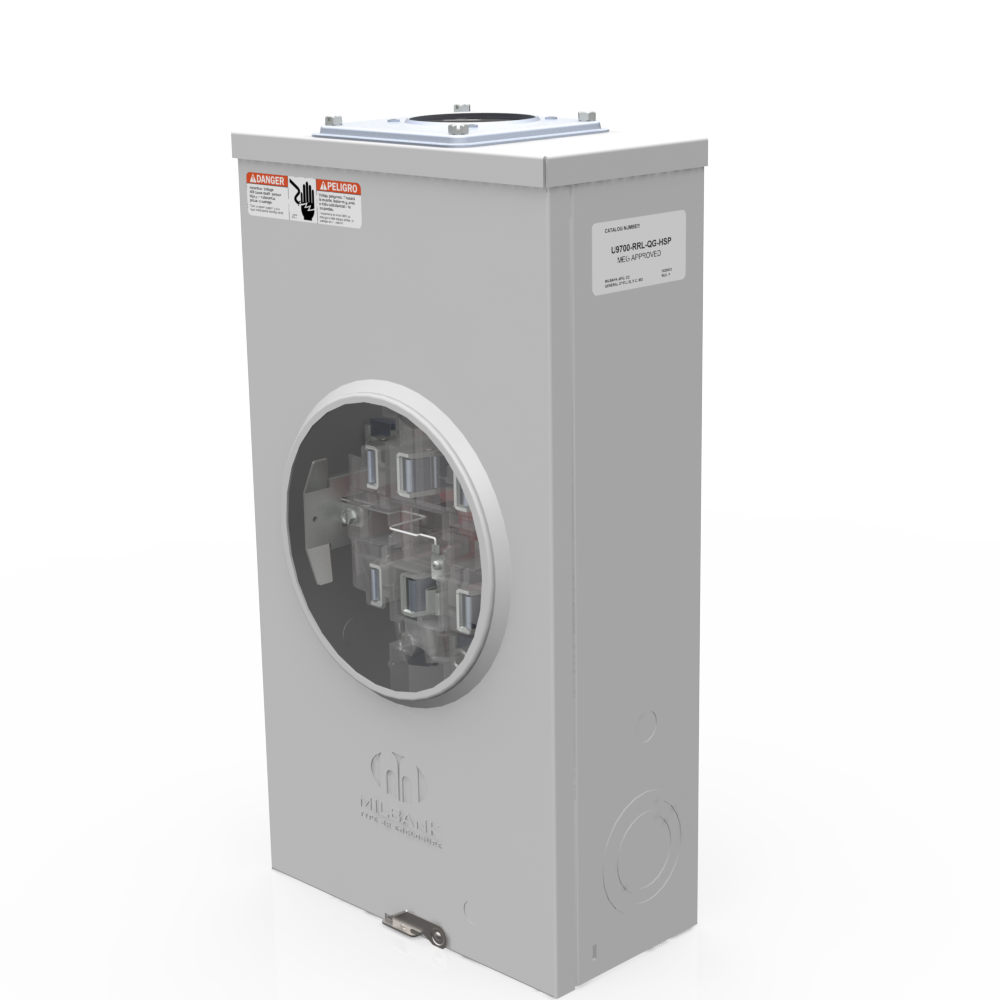

Catalog Number: U9700-RRL-QG-HSP
UPC: 784572218253
Length (IN): 4.844
Width (IN): 10
Height (IN): 18.5
Brand Name: Milbank
Type: Ringless Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: 600 Volts Alternating Current
Amperage Rating: 200 Continuous Ampere
Phase: 3 Phase
Frequency Rating: 60 Hertz
Size: 4.844L x 10W x 18.5H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry: Overhead
Terminal: Lay in
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 7 Terminal
Bypass Type: Lever Bypass
Number of Meter Positions: 1 Position
Equipment: Ground Quadplex Ground
Hub Opening: Large Hub Opening Adapted to Small Hub Opening
Line Side Wire Range: 6 AWG – 350 kcmil
Load Side Wire Range: 6 AWG – 350 kcmil
Number Of Receptacles: 0
