Catalog Number: UA4667-X-8529
UPC: 784572300620
Length (IN): 6
Width (IN): 20.25
Height (IN): 43
Brand Name: Milbank

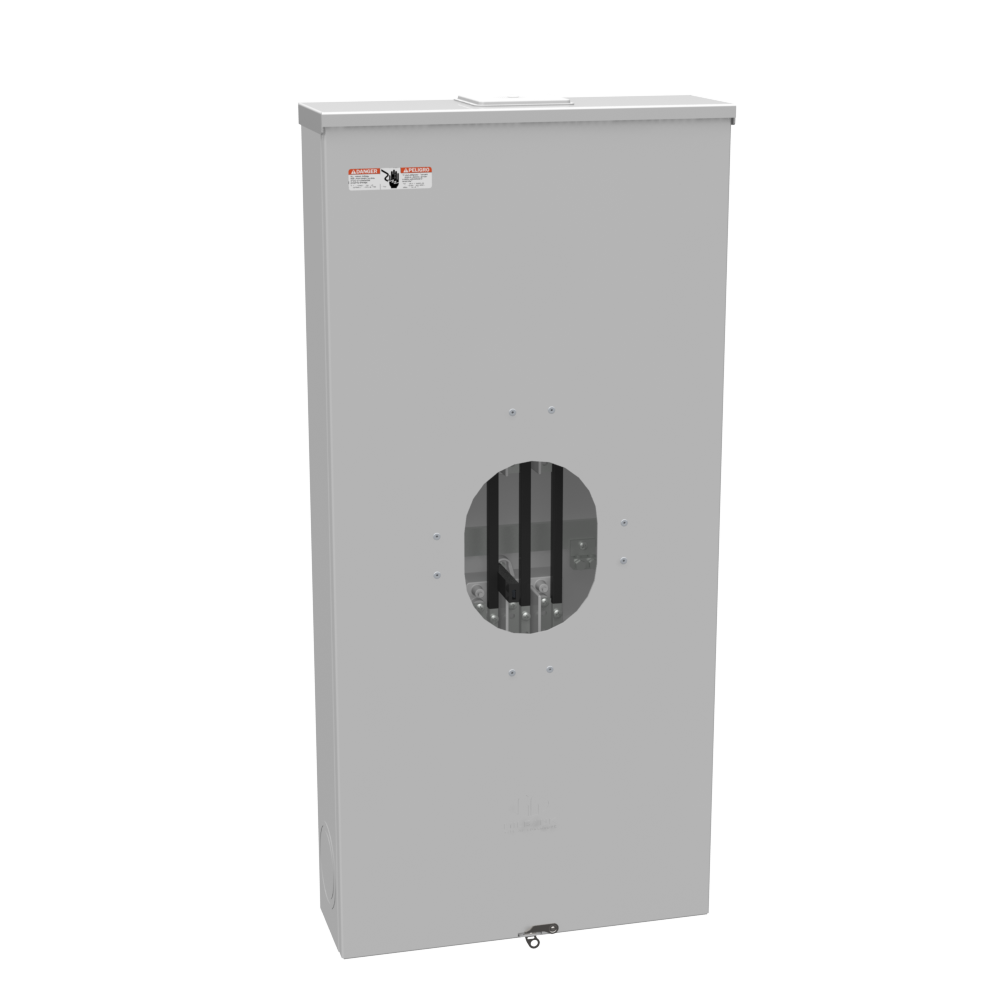

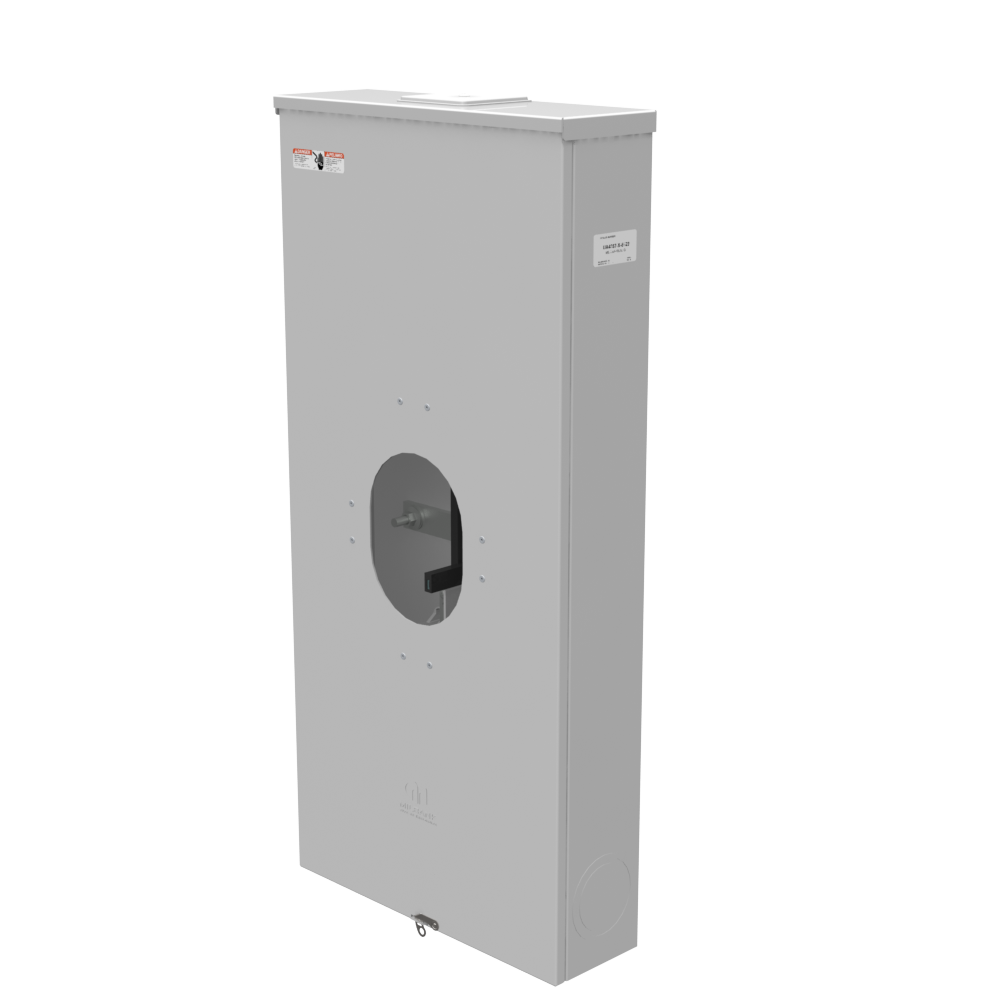

Type: Bolt On Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: 600 Volts Alternating Current
Amperage Rating: 480 Continuous Ampere
Phase: 3 Phase
Frequency Rating: 60 Hertz
Size: 6L x 20.25W x 43H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry: Overhead or Underground
Terminal: 1/2 Inch Stud Line Side
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 7 Terminal

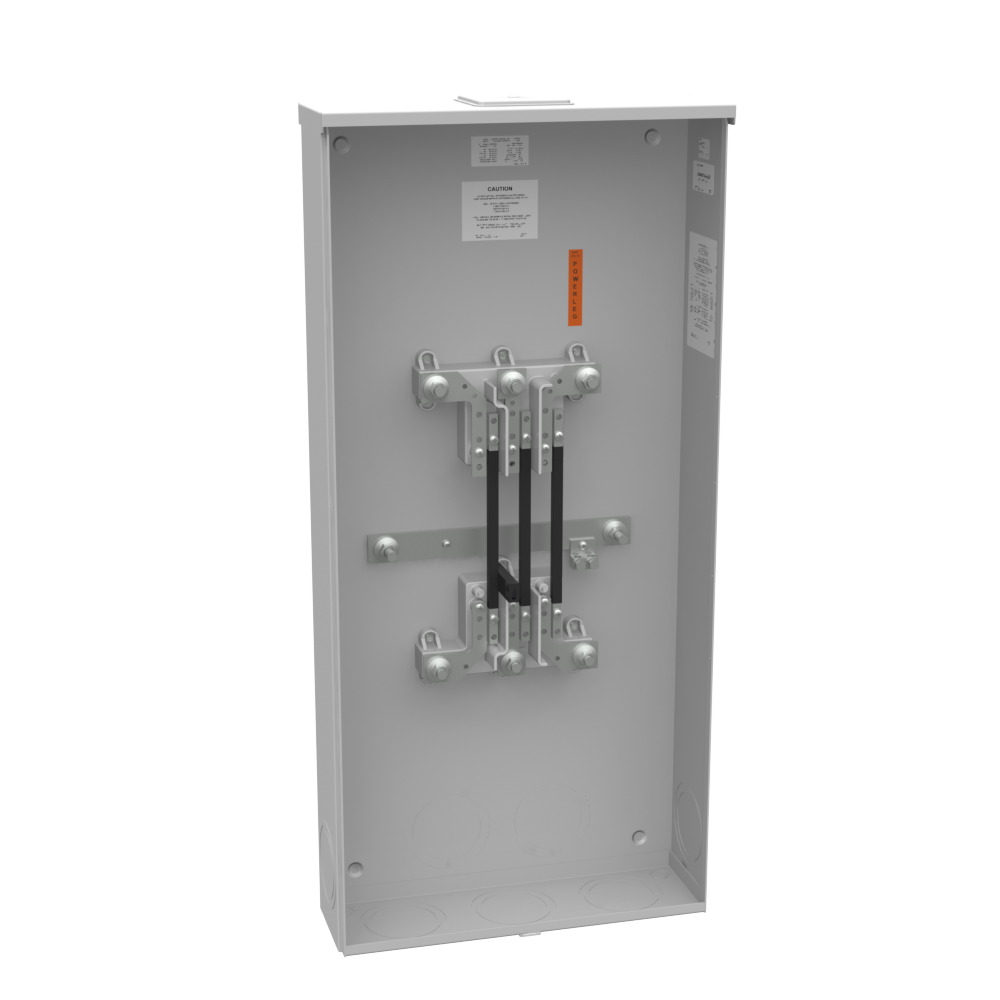

Bypass Type: Link Bypass
Number of Meter Positions: 1 Position
Equipment Ground: 2 Barrel Ground Lug
Hub Opening: Large Closing Plate
Number Of Receptacles: 0
