Catalog Number: UAP5024-XL-FMG
UPC: 7784572532342
Length (IN): 4.5
Width (IN): 14.125
Height (IN): 24
Brand Name: Milbank

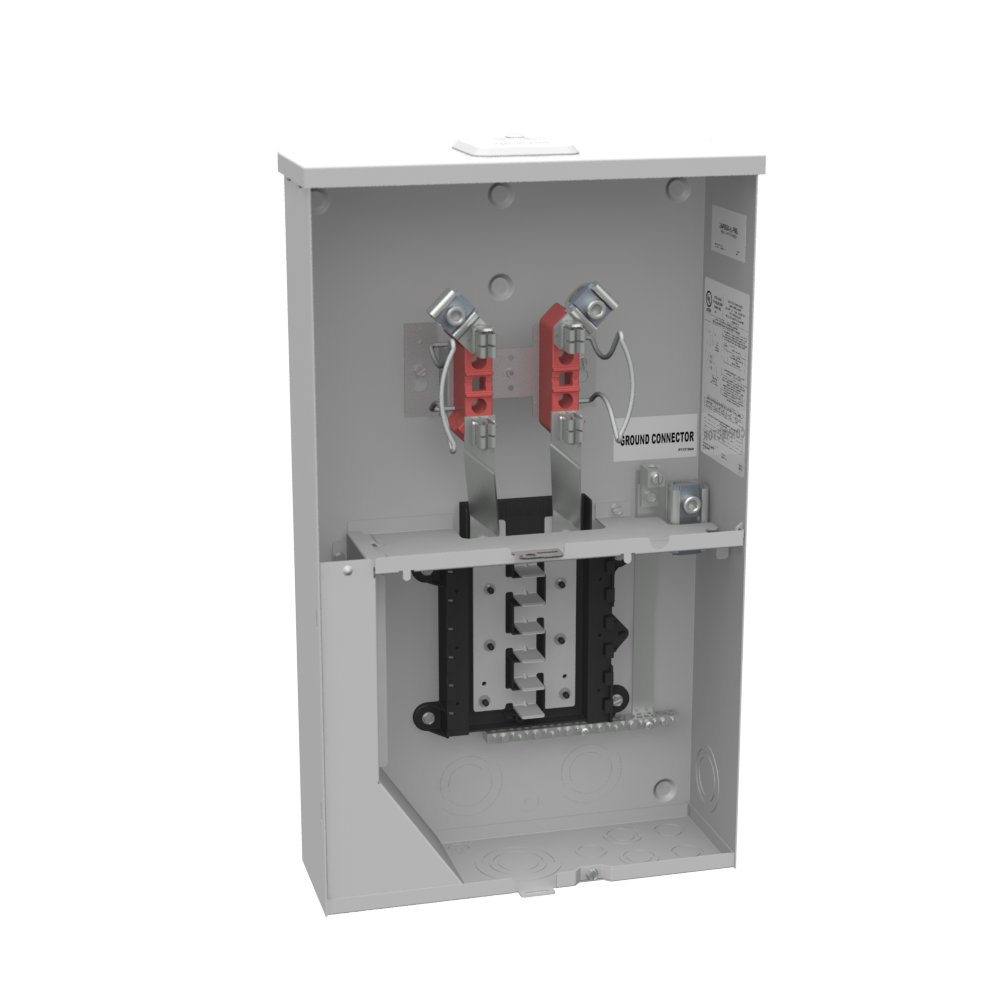

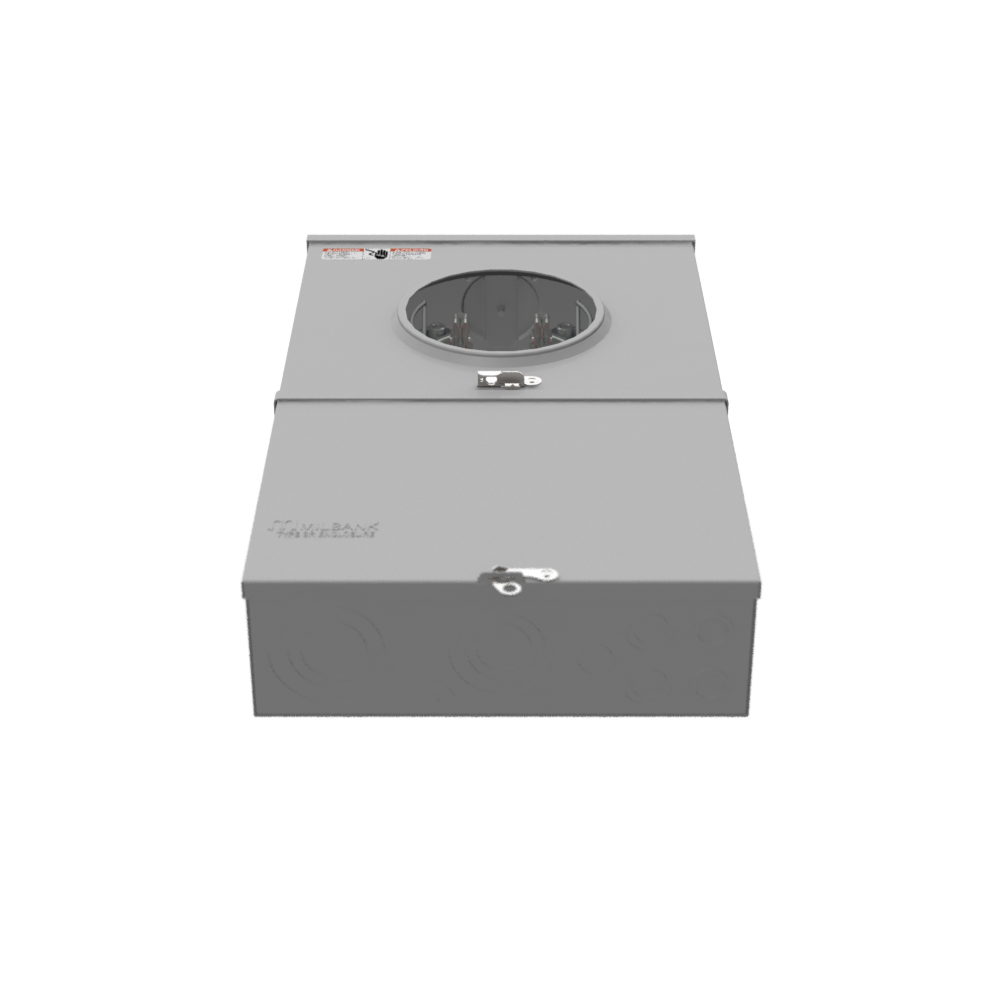

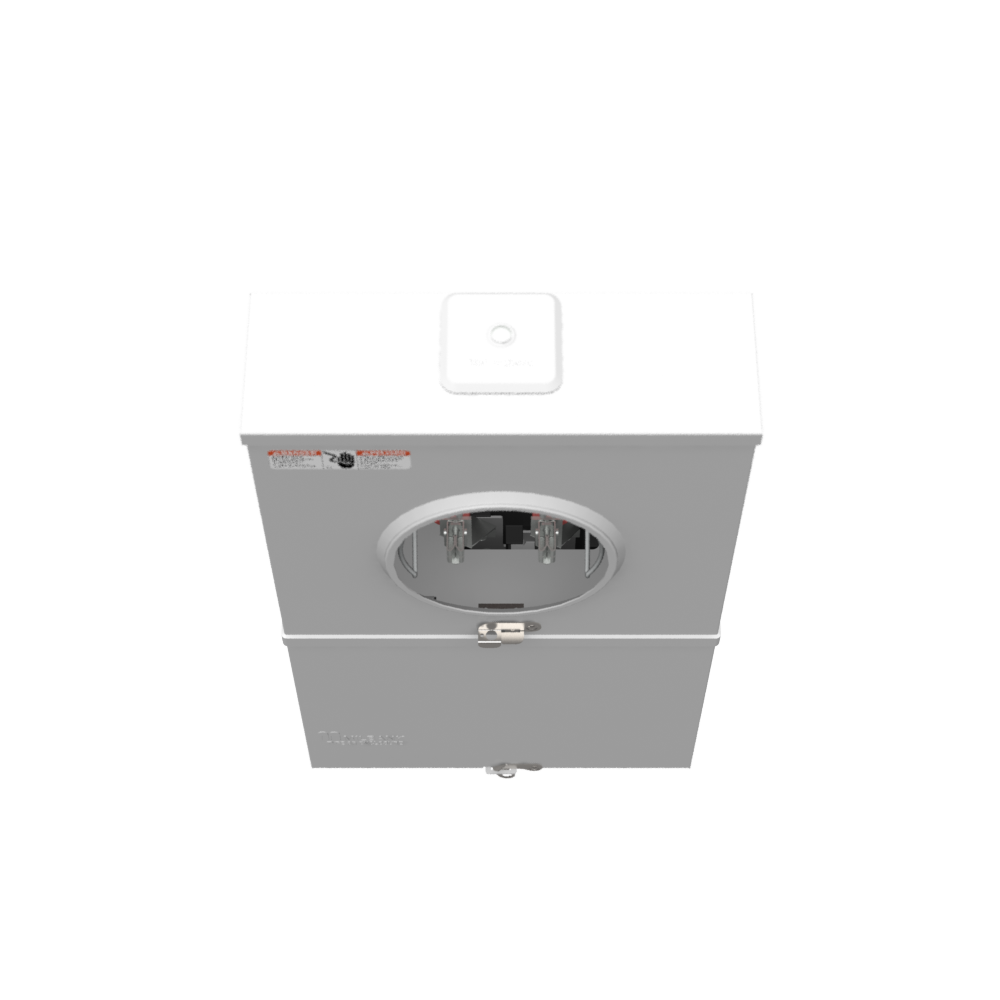

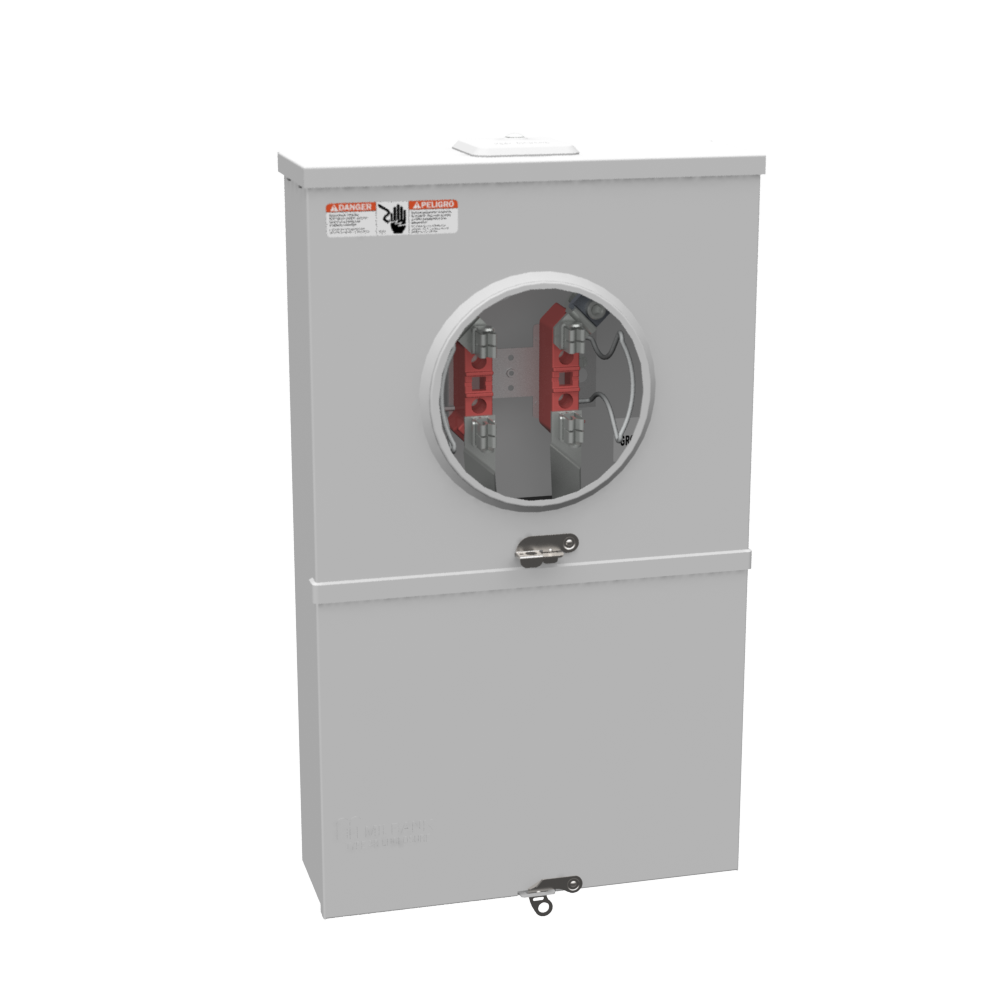

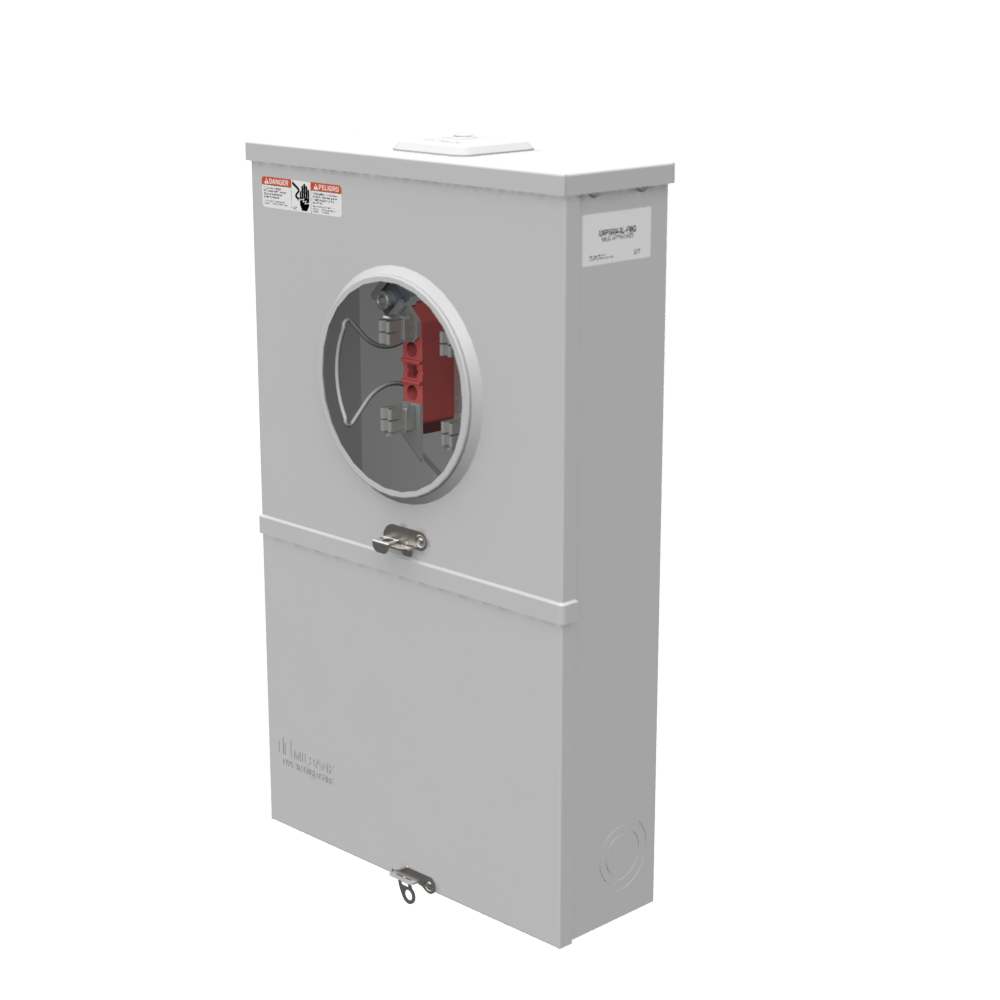

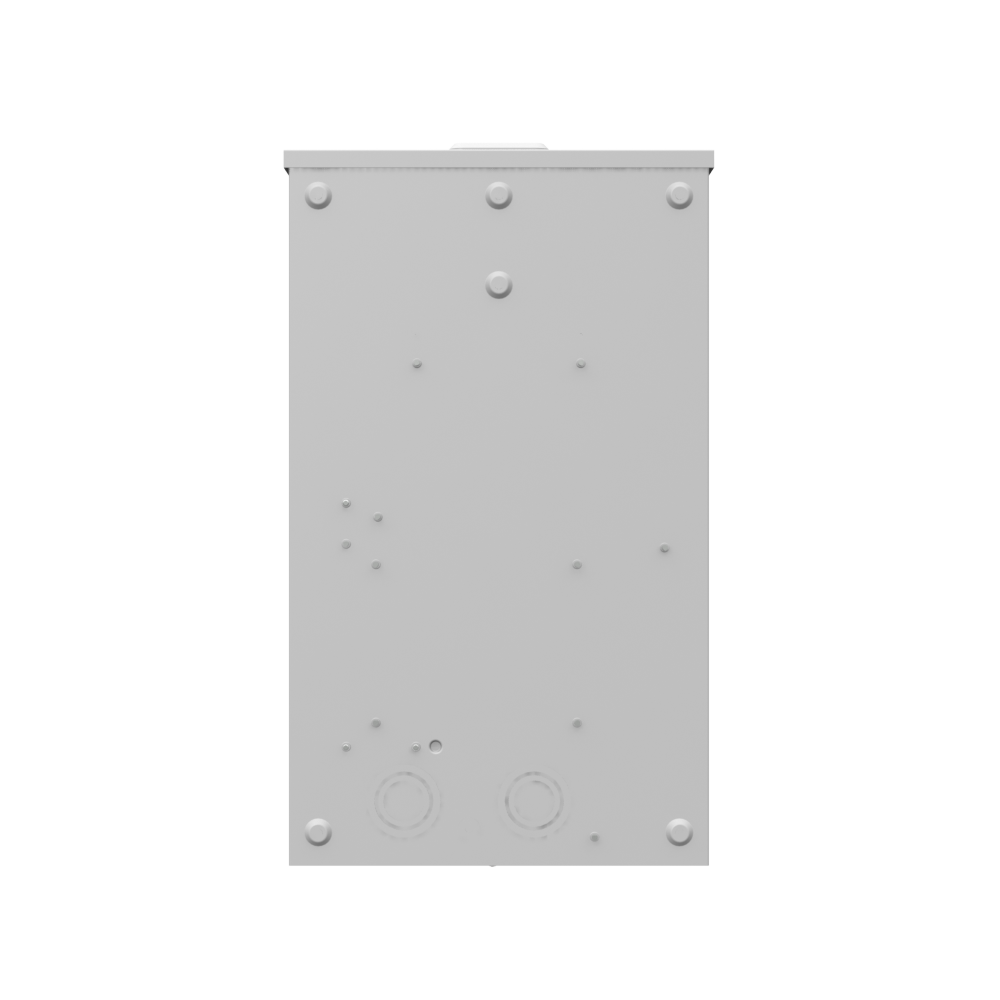

Type: Ringless Meter Socket
Special Features: Florida Meter Group
Application: Meter Socket With Load Center
Standard: UL Listed;Type 3R
Voltage Rating: Up to 240 Volts Alternating Current
Amperage Rating: 200 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 4.5L x 14.125W x 24H
Number Of Cutout:s 0
Cutout Size: Breaker Provision
Cable Entry: Overhead or Underground
Terminal: Lay in
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: Aluminum with Powder Coat Finish
Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: 1 Position
Equipment Ground: Ground Bar
Hub Opening: Small Closing Plate
Line Side Wire Range: 6 AWG – 350 kcmil
Number Branch Circuits: 12
Number Of Receptacles: 0
