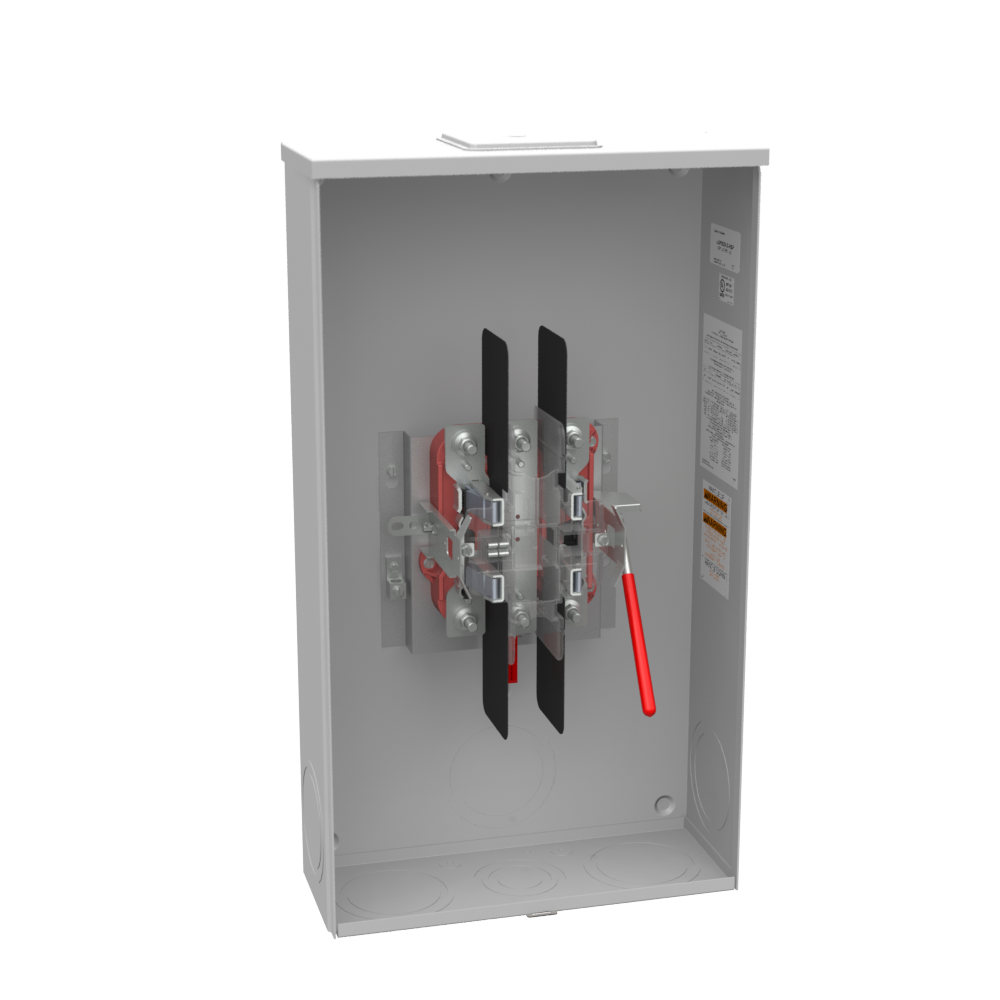

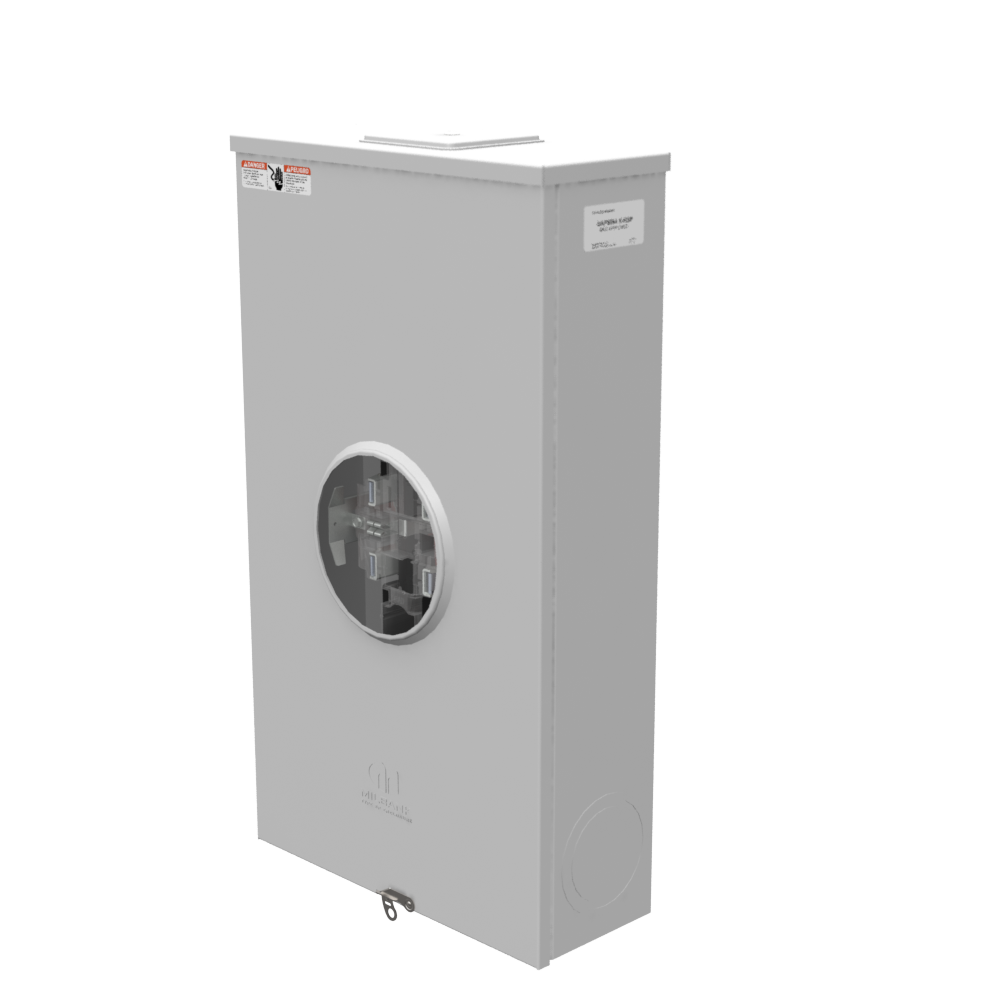

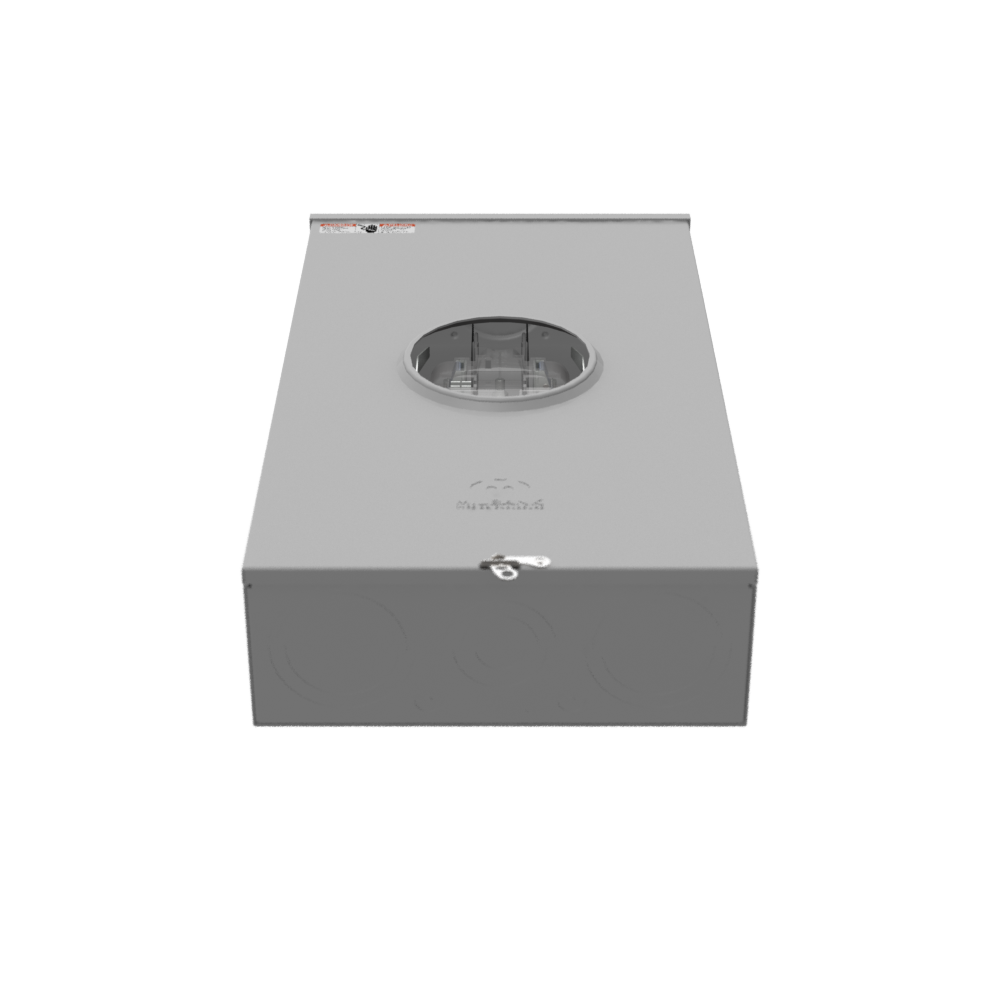

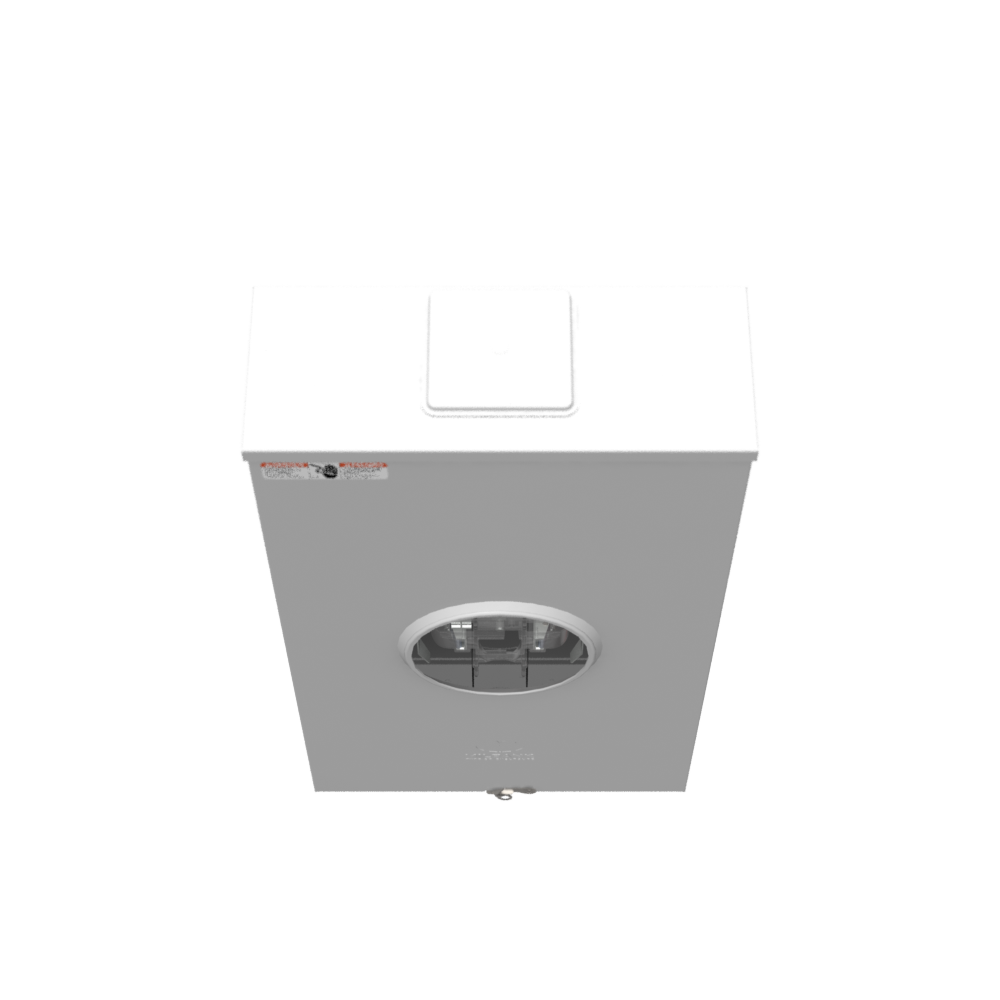

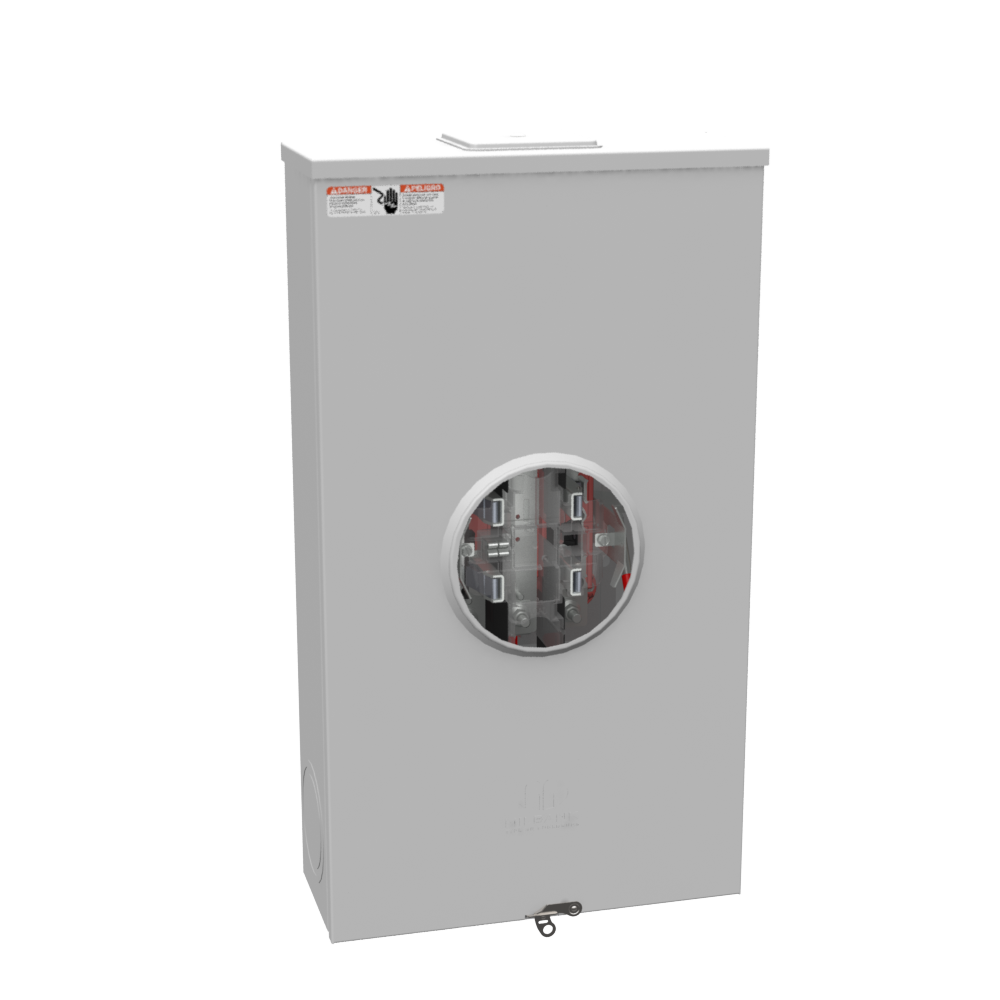

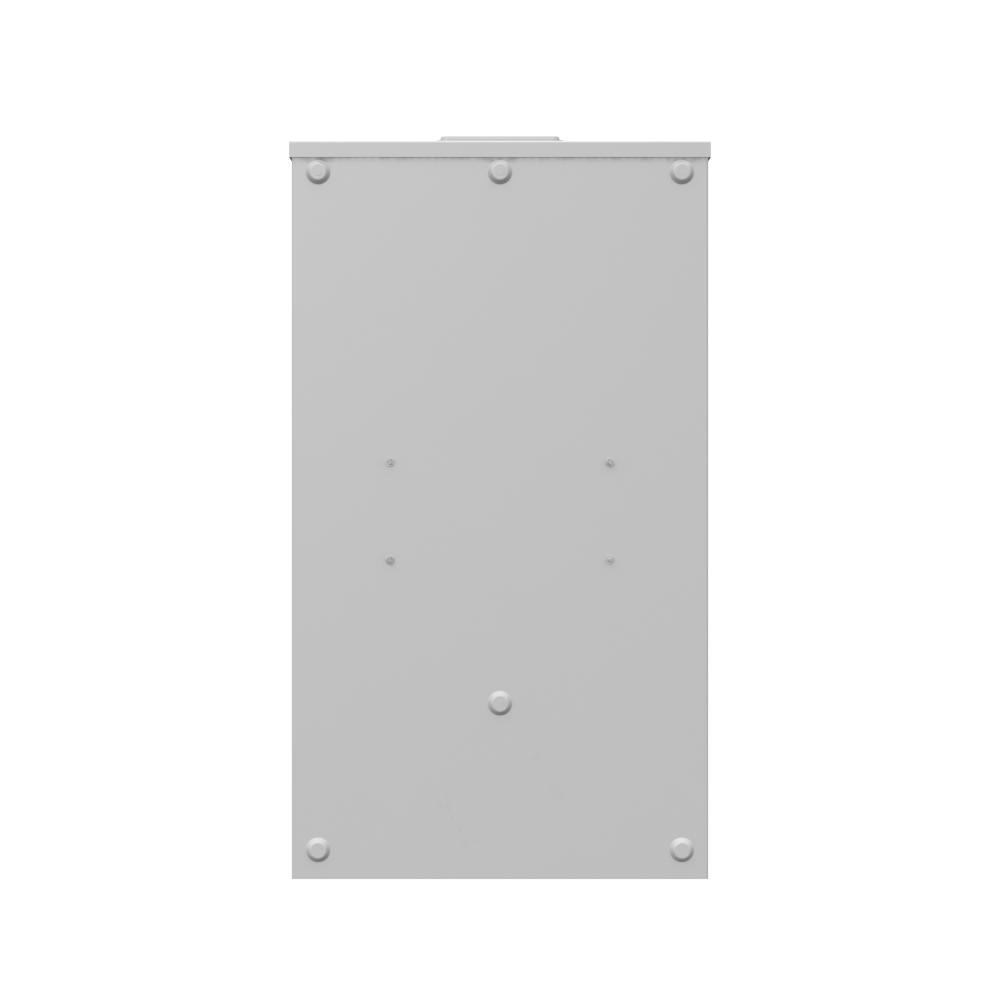

Catalog Number: UAP5864-X-HSP
UPC: 784572515611
Length (IN): 5.98
Width (IN): 16
Height (IN): 28.25
Brand Name: Milbank
Type: Ringless Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: 600 Volts Alternating Current
Amperage Rating: 320 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 5.98L x 16W x 28.25H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry: Overhead
Terminal: 3/8 Inch Stud
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: Aluminum with Powder Coat Finish
Jaw Quantity: 5 Terminal
Bypass Type: Lever Bypass
Number of Meter Positions: 1 Position
Equipment: Ground Bonded Ground Strap
Hub Opening: Large Closing Plate
Number Of Receptacles: 0
