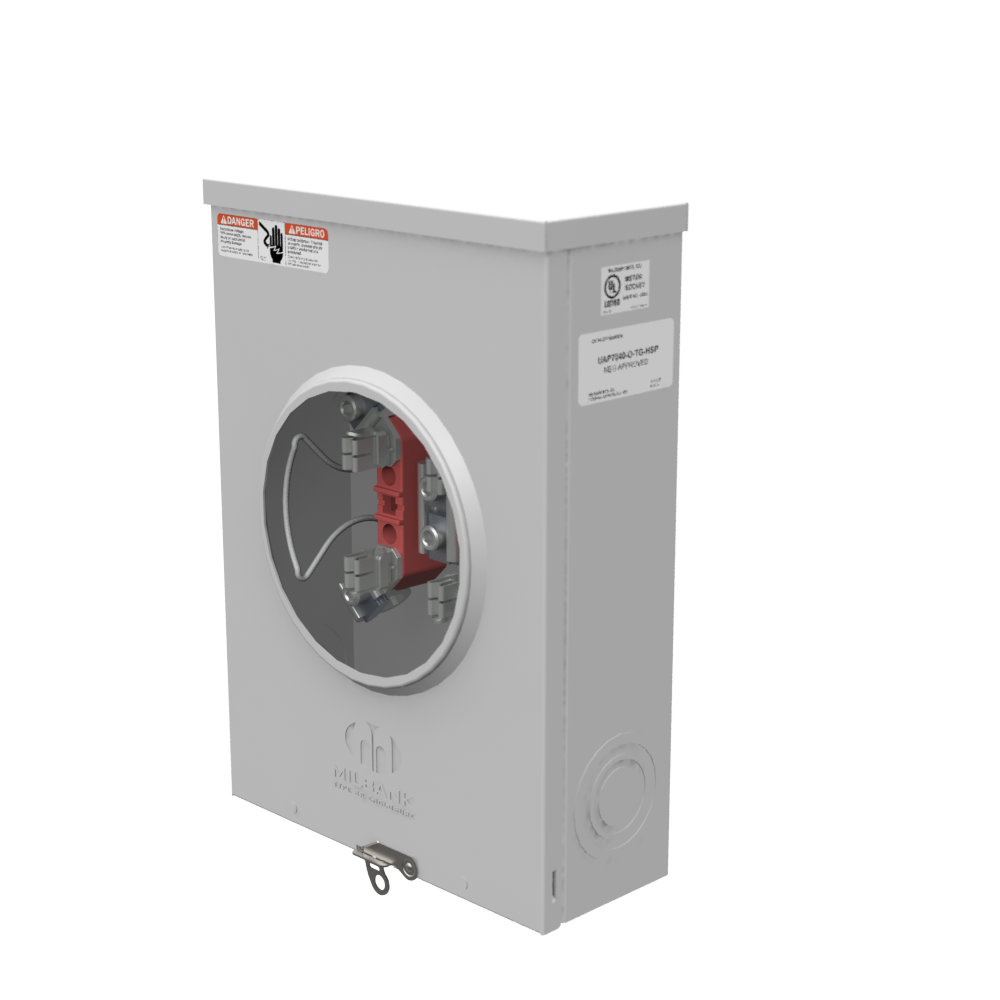

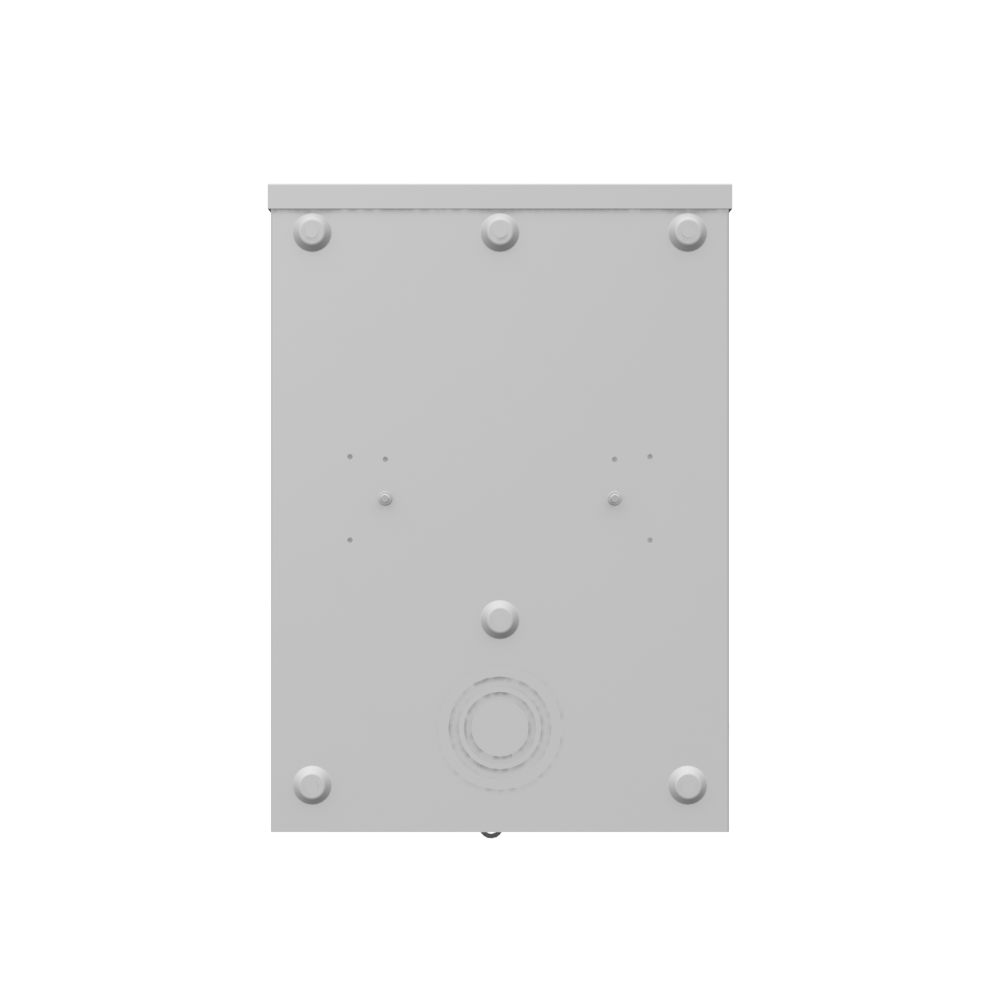

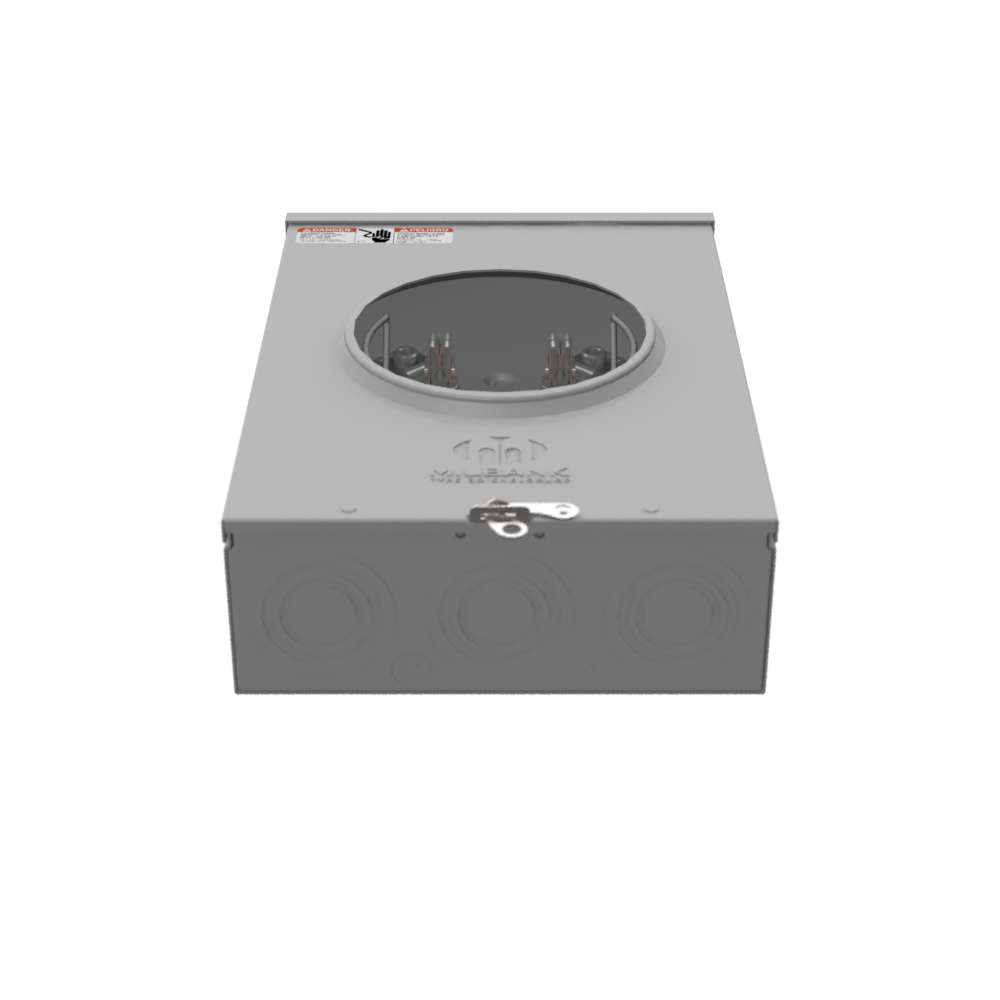

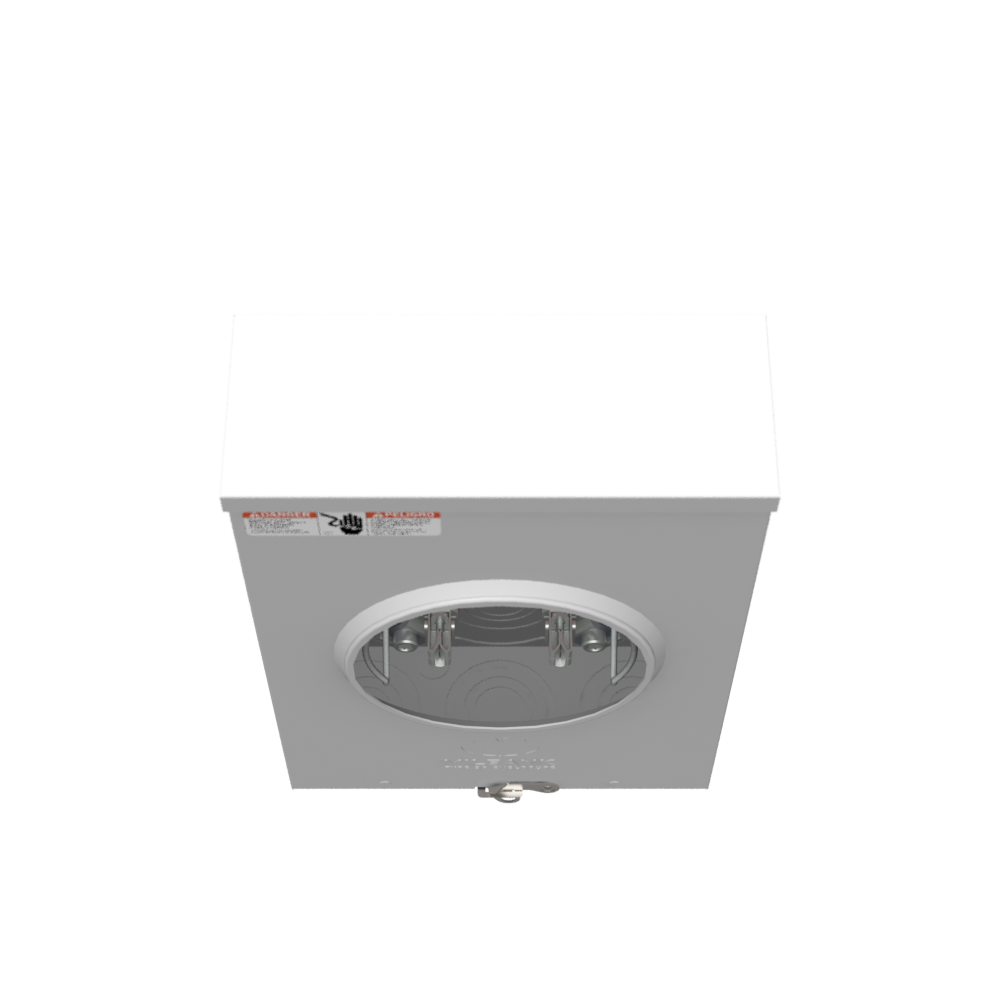

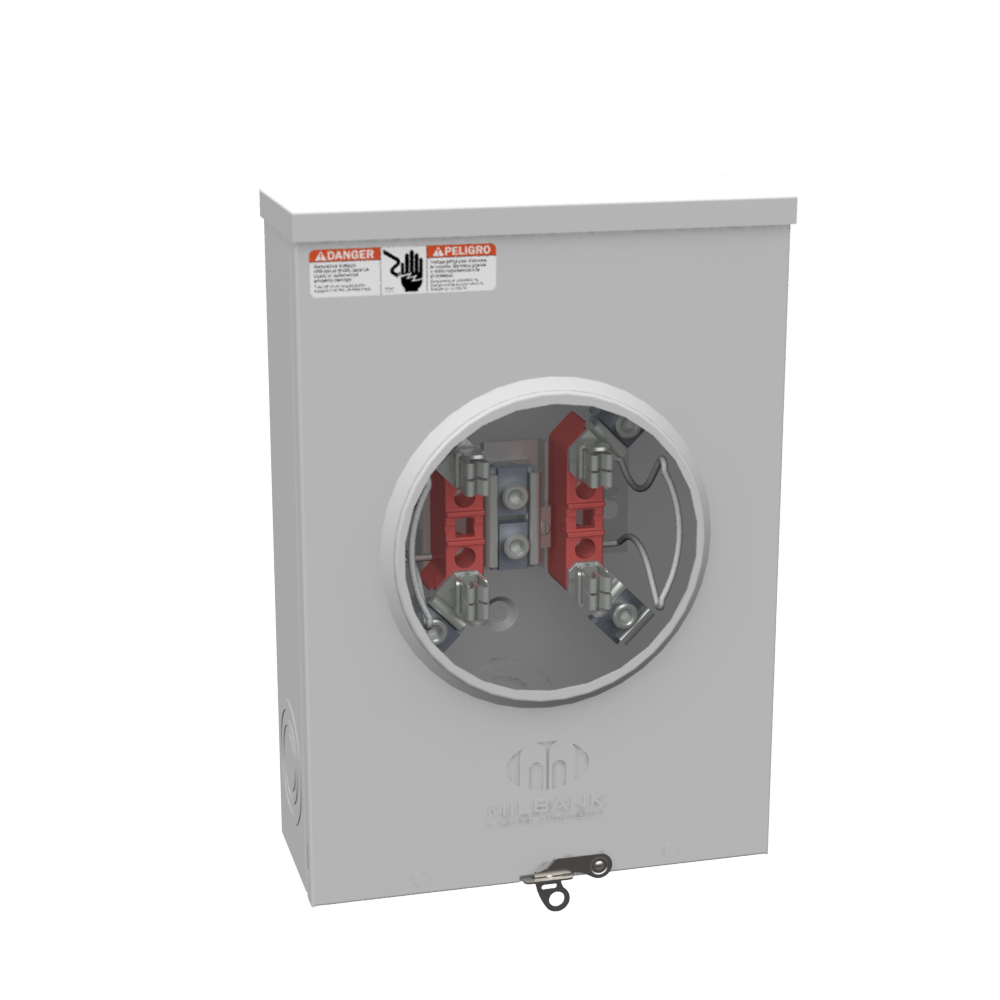

Catalog Number: UAP7040-O-TG-HSP
UPC: 784572216600
Length (IN): 4.125
Width (IN): 11
Height (IN): 15.5
Brand Name: Milbank
Type Ringless: Meter Socket
Application: Meter Socket
Standard: UL Listed;Type 3R
Voltage Rating: 600 Volts Alternating Current
Amperage Rating: 200 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 4.125L x 11W x 15.5H
Number Of Cutouts: 0
Cutout Size: No Main Breaker
Cable Entry: Underground
Terminal: Lay in
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: Aluminum with Powder Coat Finish

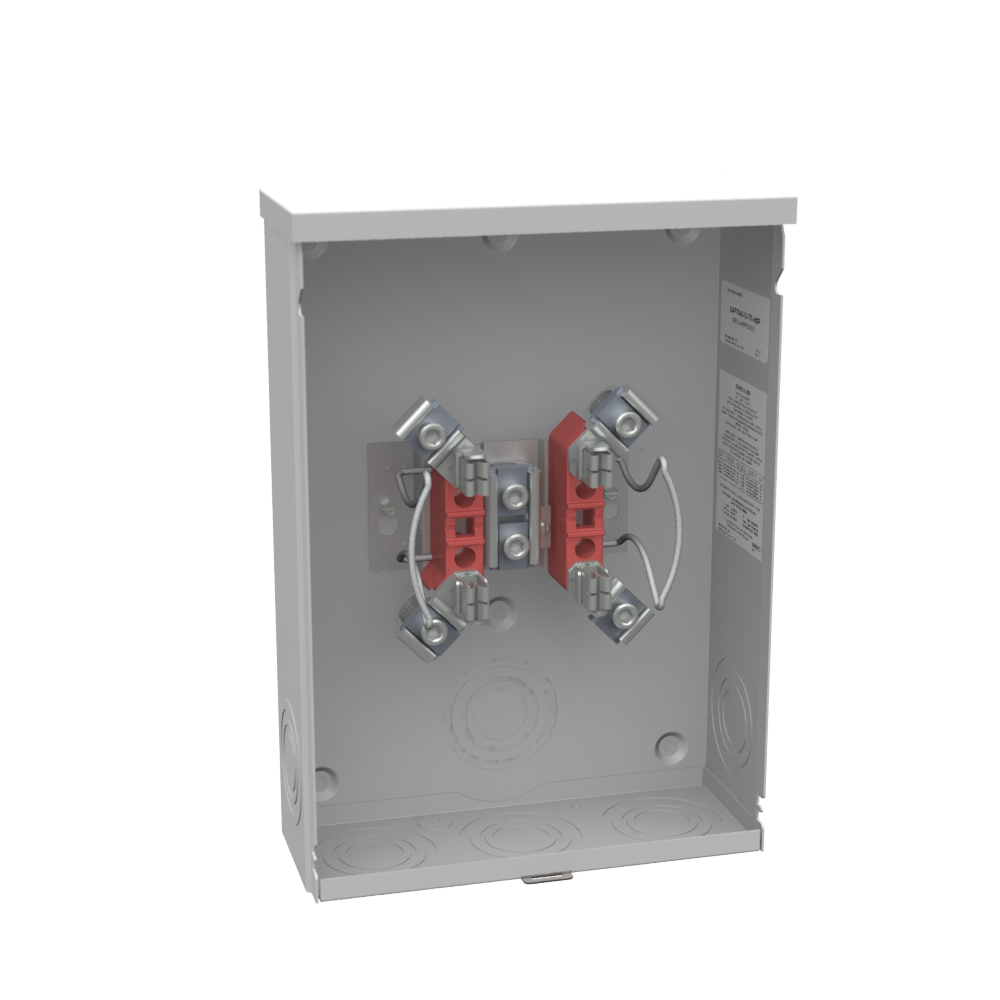

Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: 1 Position
Equipment: Ground Triplex Ground
Hub Opening: Plain Top
Line Side Wire Range: 6 AWG – 350 kcmil
Load Side Wire Range: 6 AWG – 350 kcmil
Number Of Receptacles: 0
