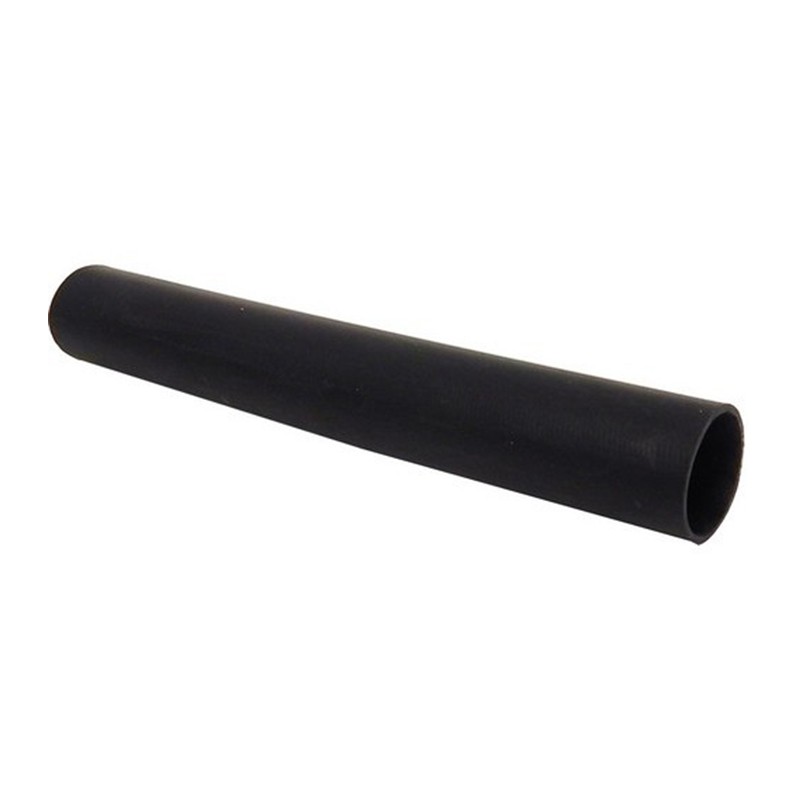

Brand:LS Performance

Part Number: 68024

Cable Range: 1-3/0 AWG

Length: 48″

3:1 Shrink Ratio allows various shapes & contours to be accommodated with one size shrink tube

Insulates & protects electrical splices & terminations where maximum flame retardancy & exceptional insulating & sealing characteristics are required

High impact and abrasion resistance capable of withstanding severe mechanical abuse of U.R.D., submersible and direct burial installations

Will not split or rupture during installation, even when overheated

Thermoplastic meltable adhesive sealant liner provides complete environmental protection and insulation

Flame retardant

Meets: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guides Nos. 2.4, 2.5,MIL-DTL-23053/15, IEEE 383 Vertical Flame Test, ANSI C37.20.2, ICEA S-19-8 and NEMA insulation thickness requirements

Heat shrink tubing is rated for 1000V, 194°F (90°C) continuous use

Continuous operating temperature: -67°F to 230°F (-55°C to 110°C)

Shrink temperature: 248°F (120°C)
