Description

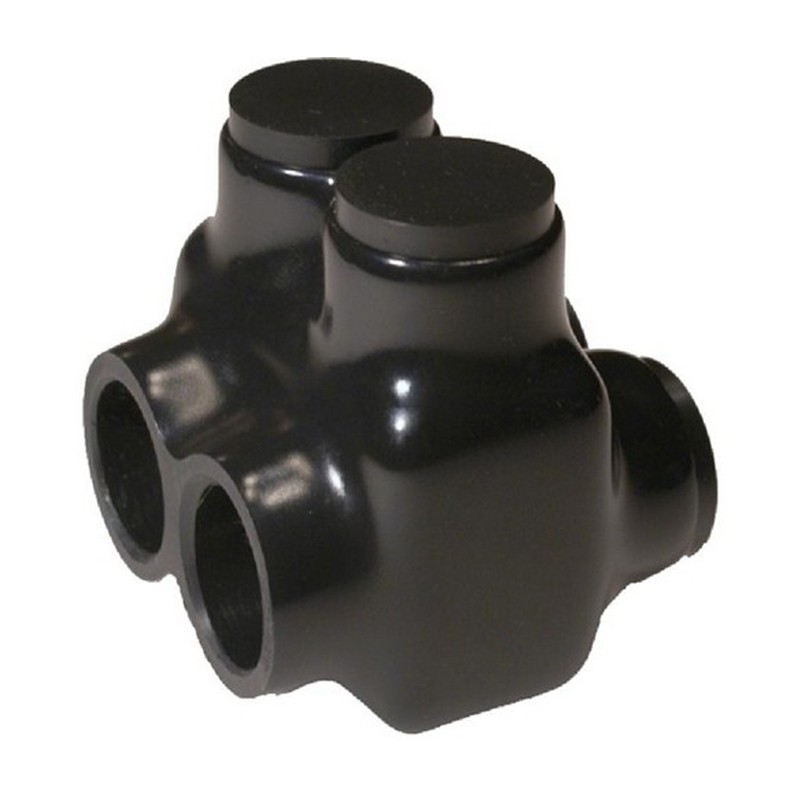

LS Performance 97122 Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 600 – 250
Product Specifications:
Brand: LS Performance
Part Number: 97122
Wire Range: 600 – 250
Optional wire entry from either side
Dual Entry Insulated Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
Insulated Connector has rugged high-dielectric Rubber/Vinyl Coating
Pre-Filled with Oxide Inhibitor
Easy Re-entry for Changes, Inspection or Troubleshooting
Plugs Marked with Connector Max Wire Size for easy identification
Temperature Range of –49°F to 194°F (–45° to 90°C)
ANSI C119.4 & cULus 486b Listed thru 750MCM
UL/CSA Certified through 750MCM size
Rated for use with 194°F(90°C) Cables
600 Volt
One wire per terminal
