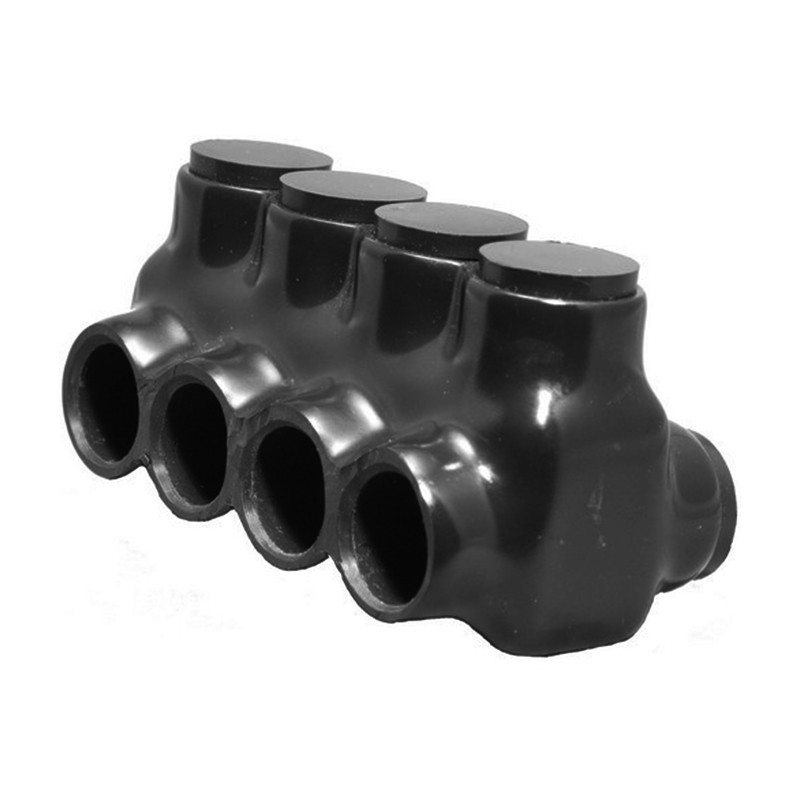

LS Performance 97644 Black Insulated Multi-Cable Connector Dual Entry 4 Ports 250 – 6
Product Specifications:
Brand: LS Performance
Part Number: 97644
Wire Range: 250 – 6
Wire Entry from Either Side of connector
Insulated with rugged high-dielectric Rubber/Vinyl Coating
Pre-Filled with Oxide Inhibitor
Easy Re-entry for Changes, Inspection or Troubleshooting
Plugs Marked with Connector Max Wire Size for easy identification
Dual Entry Cable Connector is CU9AL Dual Rated 6061-T6 Aluminum for use with Copper and/or Aluminum wires
One Wire per Terminal
Temperature Range of –49°F to 194°F (–45° to 90°C)
ANSI C119.4 & cULus 486b Listed thru 750MCM
Rated 194°F(90°C) 600 Volt
