Description

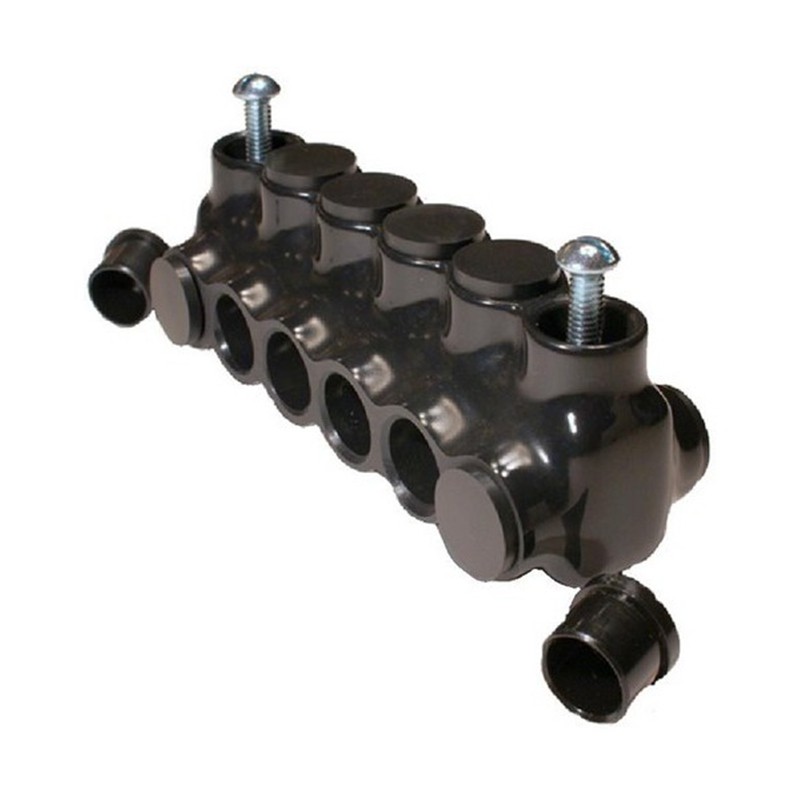

LS Performance 97834 Black Insulated Mountable – Dual Entry 4 Ports 2/0 – 14
Product Specifications:
Brand: LS Performance
Part Number: 97834
Wire Range: 2/0 – 14
Dual Entry Connector has Isolated Bolt Holes for mounting to trough, panel or wireway
Wire Entry from Either Side
Insulated with Rugged high-dielectric Rubber/Vinyl Coating
Pre-filled with Oxide Inhibitor
Plugs Marked with Connector Max Wire Size for easy identification
Dual Entry Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
Temperature Range of –49°F to 194°F (–45° to 90°C)
ANSI C119.4 & UL 486b Listed thru 750MCM
CSA Certified through 600MCM size
Rated for use with 194°F(90°C) Cables
600 Volt
One Wire per Terminal
