Description

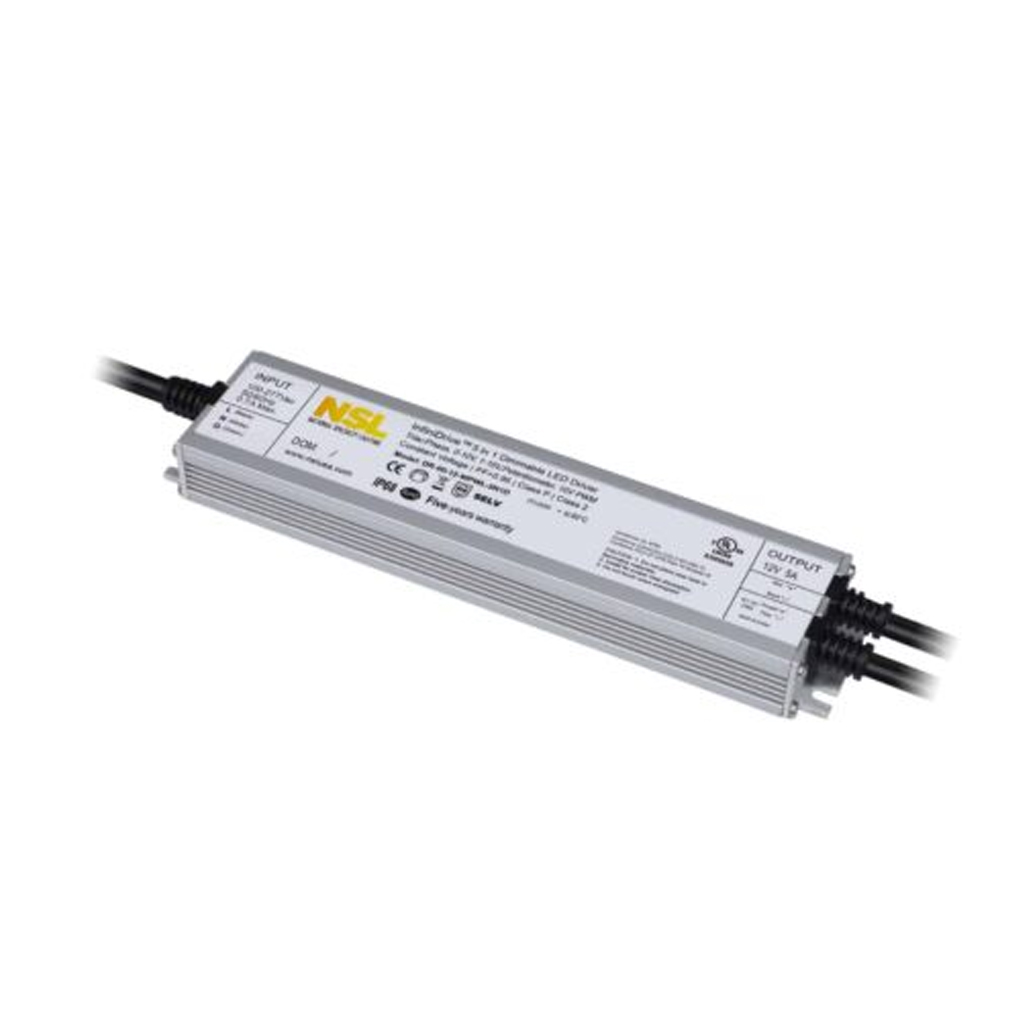

NSL DR-60-12-WPHL-5N1D NSL Infini Drive 12V LED Driver Waterproof & 5-in-1 Dimmable 60W
Product Specifications:
Brand: NSL
Part Number: DR-60-12-WPHL-5N1D
Output Voltage: 12V DC (±0.5V)
Output Power: 60W (5A max)
Input Voltage: 100–277Vac, 50/60Hz
Efficiency: ~85%
Power Factor: ≥0.7
Certifications: UL/cUL, FCC, Class P
IP Rating: IP68 – dry, damp, and wet locations (not immersion)
Lifetime: 50,000 hours (Tc ≤ 80°C)
MTBF: 200,000 hours
Dimensions: 8.23″ Ă— 1.77″ Ă— 0.9″ (209 Ă— 45 Ă— 23 mm)
Weight: 0.4 kg
Part Number: DR-60-12-WPHL-5N1D
Output Voltage: 12V DC (±0.5V)
Output Power: 60W (5A max)
Input Voltage: 100–277Vac, 50/60Hz
Efficiency: ~85%
Power Factor: ≥0.7
Certifications: UL/cUL, FCC, Class P
IP Rating: IP68 – dry, damp, and wet locations (not immersion)
Lifetime: 50,000 hours (Tc ≤ 80°C)
MTBF: 200,000 hours
Dimensions: 8.23″ Ă— 1.77″ Ă— 0.9″ (209 Ă— 45 Ă— 23 mm)
Weight: 0.4 kg
