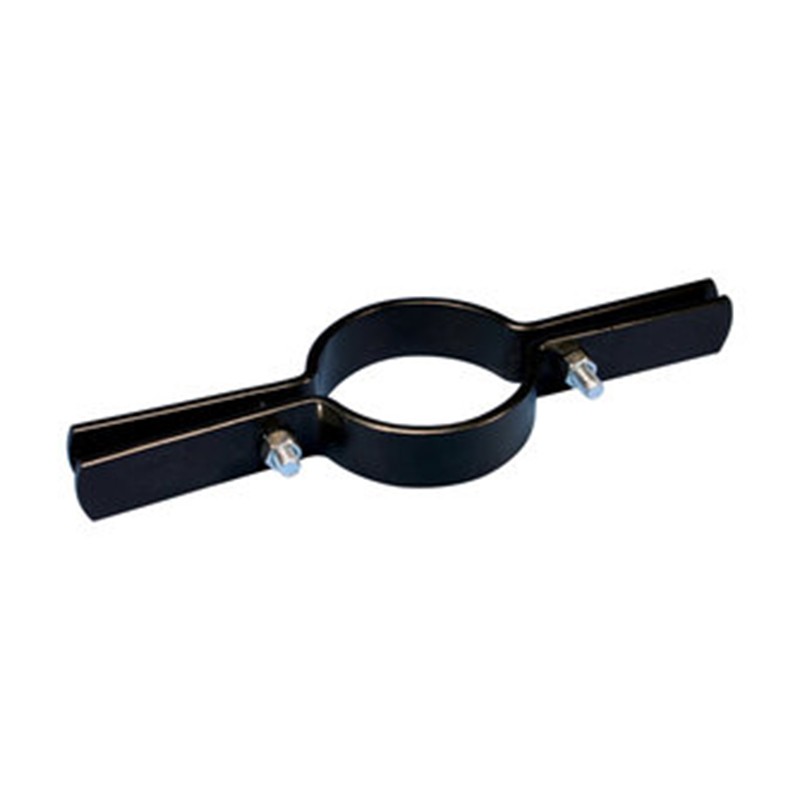

nVent Caddy 5200050EP EZ Riser Epoxy Coated 1/2in Pipe

nVent Caddy 5200050EP EZ Riser Epoxy Coated 1/2in Pipe

$29.95

Recommended for suspending vertical steel pipe risers where it is undesirable to have the steel of the hanger in direct contact with the pipe
Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
Slotted holes make assembly easy, eliminating loose hardware
Bolts are accessible from the front, serrated washer head design means no wrench required on back side for tightening

SKU # : 5200050EP

List Price: $33.95

In stock

Add to wishlist
Compare
SKU: 5200050EP Categories: , Tags: , , , , ,
Caddy Erico

Description

nVent Caddy 5200050EP EZ Riser Epoxy Coated 1/2in Pipe

Product Specifications:
Brand: nVent Caddy
Part Number: 5200050EP
Material: Steel
Finish: Epoxy Powder Coated;Electrogalvanized
Pipe Size: 1/2″
Outer Diameter: 0.840″
Hole Size: 7/16″
A: 8 1/2″
B: 1″
Screw Diameter: 3/8″
Screw Length: 1 1/4″
Static Load: 255 lb

Brand

Caddy Erico

Caddy Erico
