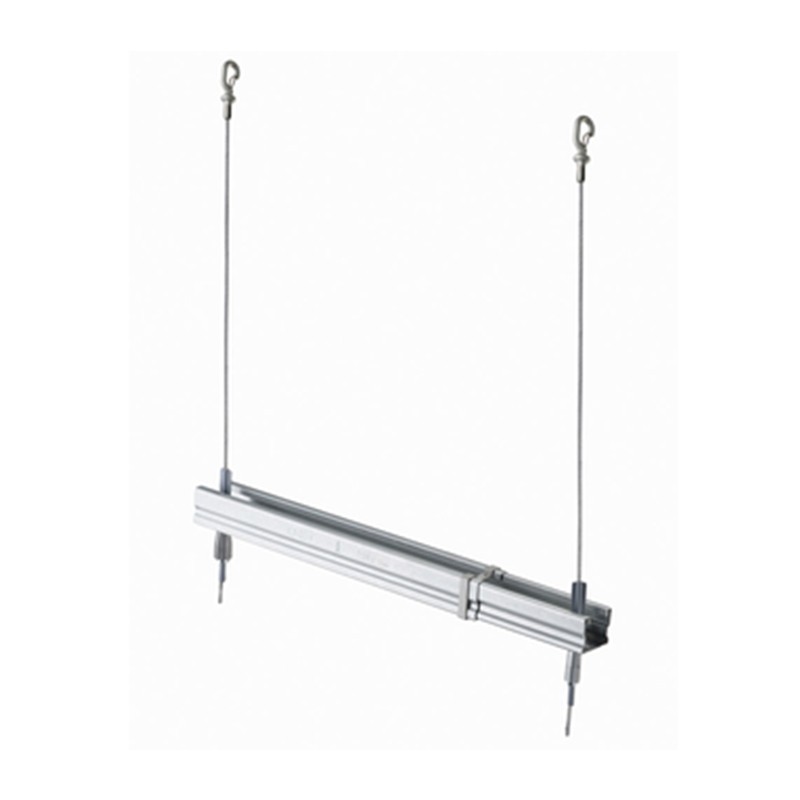

nVent Caddy TSR1220SLS3 Speed Link SLS Trapeze Kit

nVent Caddy TSR1220SLS3 Speed Link SLS Trapeze Kit

$38.95

Out of the box trapeze solution includes Telescoping Strut Replacement, wire rope with pre-assembled hook end-fitting, and two nVent CADDY Speed Link SLS locking devices
Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
Standard strut profile runs the entire length of the Telescoping Strut Replacement, allowing most standard fittings to be placed anywhere between the wire rope supports
Supports up to seven 2″ (50 DN) conduits, six 2″ (50 DN) water filled pipes at 10′ (3 m) spacing, or up to 18” (450 mm) cable tray

SKU #: TSR1220SLS3

List Price: $ 43.95

In stock

Add to wishlist
Compare
SKU: TSR1220SLS3 Categories: , , Tags: , , , , ,
Caddy Erico

Description

nVent Caddy TSR1220SLS3 Speed Link SLS Trapeze Kit

Product Specifications:
Brand: nVent Caddy
Part Number: TSR1220SLS3
Material: Steel;Zinc Alloy;Polyamide
Finish: Electrogalvanized;Pregalvanized
Complies With: SMACNA HVAC-DCS
Wire Rope Diameter: 3 mm
Wire Rope Length: 9.9′
Length 1: 14″ – 21 1/2″
Length 2: 12 1/2″ – 20″
Width: 1 5/8″
Height: 1 3/8″
Thickness: 0.040″
E: 1.800″
D: 7/8″
C: 0.240″
B: 0.910″
A: 2.270″
Static Load 1: 300 lb
Static Load 2: 200 lb

Brand

Caddy Erico

Caddy Erico
