Description

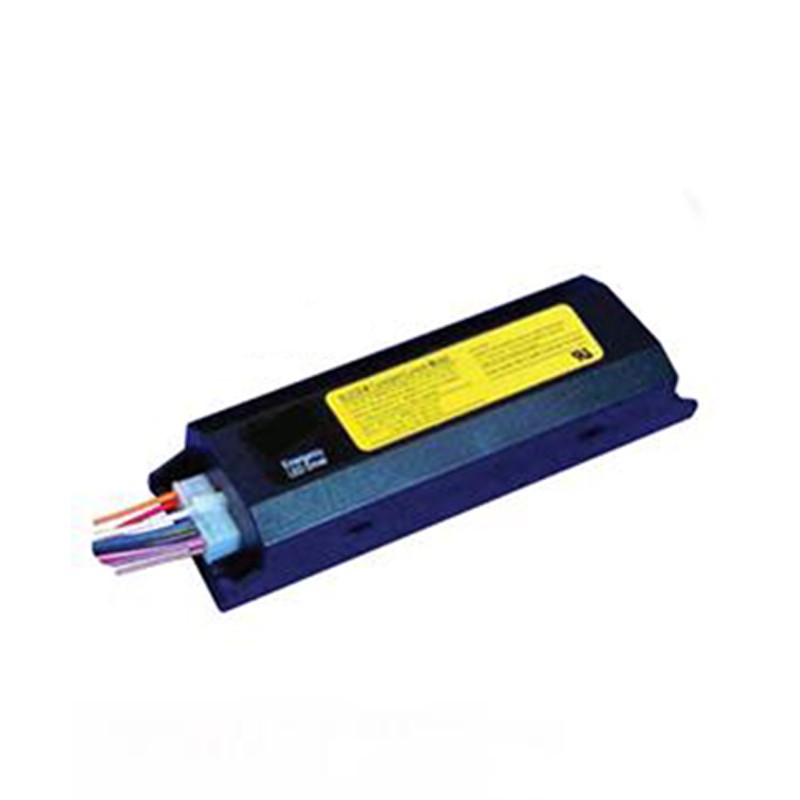

Profusion LED BLEDEM-CC-1450/350-CEC 350mA Constant Current Title 20 LED Emergency Driver
Product Specifications:
Brand: Profusion LED
Part Number: BLEDEM-CC-1450/350-CEC
Output Current: 350mA
Output Voltage: 14-50VDC
Universal 120-277V, 50/60 Hz input.
Charge/Power ” ON” LED indicator light and push-to-test switch for mandated code compliance testing.
Long-life, maintenance free, rechargeable NiCad battery.
Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault.
90 Minute minimum emergency operating time over full temperature range.
24 Hour maximum battery recharge time.
LED emergency driver is equipped with a switch to choose 350mA or 500mA constant current output.
Output classification: Class 2 Compliant.
Surge protection: Per C62.41 (TVS).
Input overcurrent protection: Fusible link
LED illuminated and remote mounted test switch.
Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in a black finish.
UL Recognized for factory installation.
Suitable for damp locations (0°C – 50°C).
5 year warranty
