Description

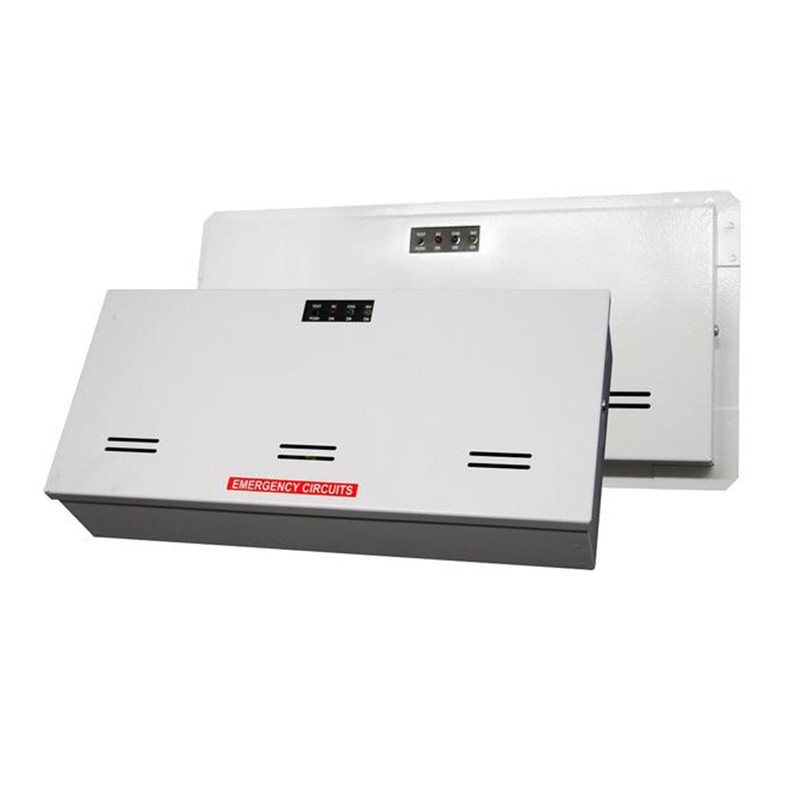

Profusion LED MPS-32-S-SDT 32W Surface Mount Self-Testing Emergency Micro Power Inverter System
Product Specifications:
Brand: Profusion LED
Part Number: MPS-32-S-SDT
Wattage: 32W
Input Voltages: 120 or 277VAC ±10%
Input Frequencies: 60Hz ±2%
Input Protection: Provided by Service Panel, Rated 20A max.
Output Voltages: 120 or 277VAC (60Hz)
Efficiency Rating: 98% at full rated load (line)
Waveform: Sinusoidal (digitally controlled, PWM design)
Static Voltage: ±5% during battery discharge. 0-100% linear load.
Output Frequencies: 60Hz. ±0.3Hz during emergency cycle
Output Distortion: Less than 3% THD (linear load)
Transfer Time: Less than 1.0 second
Load Power Factor Range: 0.44 Lead to 0.44 Lag
Minimum Loading: 0% of rated system capacity
Output Protection: Inverter fuse
Heavy duty steel cabinet is finished in white baked-on powder paint providing scratch and corrosion resistance
UL924 Listed and meet NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes
UL Listed for damp locations (0°– 50°C for NiCad models and 20°- 30°C for lead-calcium models)
Unit: (excluding lamps) Full coverage against defects in materials and workmanship for 3 years from date of shipment.
Battery: 3 years Lead-Acid, 5 yrs NiCd full warranty plus an additional 7 years of pro-rata coverage
