Brand: ProFusionLED

Part Number:PRO-TT22-CCT-D

Wattage:30/35/40 Watts

Color Temperature: CCT (3000K/3500K/4000K) by DIP switch

Input Voltage: AC100V-277V, 50/60Hz
Lumens: 30W-3000LM / 35W-3500LM / 40W-4000LM

CRI: Ra>80

Driver Output:DC42V 1.35 A

Input Voltage:100-277V AC

Input Current:0.47A

THD: <20%(at 277V)

Power Factor:>0.9(277V )

Standard Lifetime: Designed to L70 minimum 50,000 hours

Mounting: Recessed

Dimming: 0-10W dimming

Dimensions: L 23.7″x W 23.7″ x H 3.54″

Signal Current: ＜2mA

Recommended Dimmers: DVTV (LUTRON), IP710-DL(LEVITON)

UL Listed: YES

Damp Rated:YES

DL C Qualifications: YES

LM79 Report: YES

5 Year Warranty

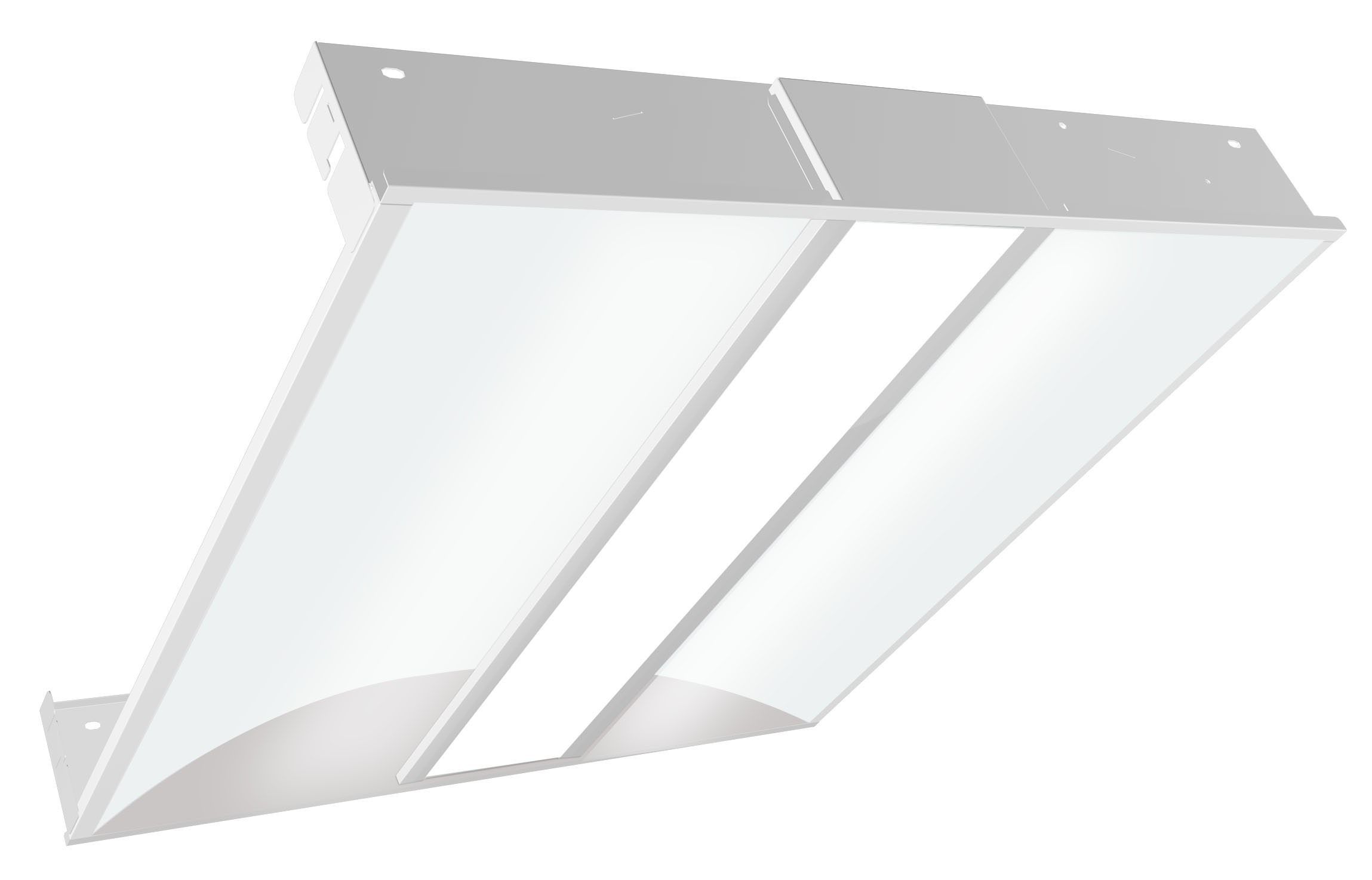

The 2×2 indirect recessed troffer offers a traditional & modern design with the latest lighting technology.

Transparent optics engineered specifically for LED sources are integrated with minimalist design and architectural materials to create a broad range of solutions with superior optical and energy performance.

High performing optics allows for maximum energy savings and optimal illumination in a ultra-minimalistic shallow recessed fixture, provides a unique translucent appearance without sacrificing performance.

Long-life LED system coupled with electrical driver to deliver optimal performance. Standard drivers are 0-10 volt continuous dimming that work with 0-10V control/dimmer.

Tunable white and adjustable power functions are available for your choice.

Color Temperature Chart:
