Description

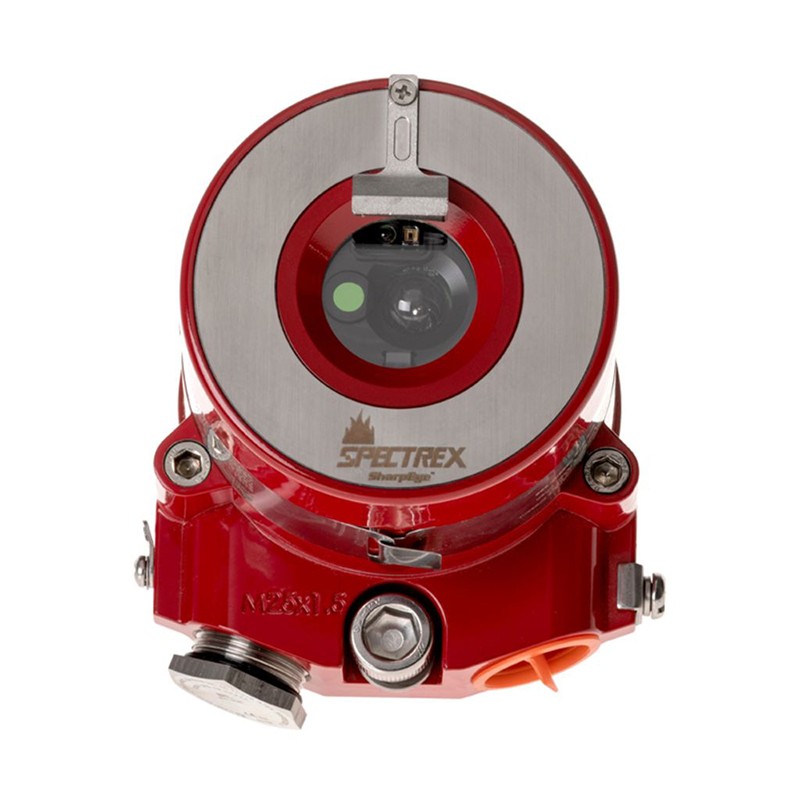

Spectrex SharpEye 40/40C-L4B-642AFY7 Integrated UV/IR Flame Detector
This part number includes both the detector and the Tilt Mount
Features:
Fast detection under five seconds
Proven false alarm immunity
Unparalled reliability – 150,000 hours MTBF
Wide temperature range: -40 to +185 °F (-40 to +75 °C)
Worldwide and regionally certified for hazardous areas
Performance and reliability approved by recognable certification bodies
SIL3 compatible
Enhanced durability backed up by with three-year warranty
Smart field of view integrity test, allowing flawless operation
Innovative UV and IR Built-In-Test – continuously validating the optical integrity and the electronic circuitry
Multiple output options for maximum compatibility with standard infrastructures
Plug-and-Play – factory calibrated for immediate use in any fire detection system
Universal wiring option for fast ordering process
Three sensitivity levels, adapting to any application
Two mode heated optics for impeccable performance in challenging environmental conditions
Internal log event recorder to analyze past events
The specific 40/40C-L4B-642AFY7 model replaces the previous models listed below:
-40/40L4B-112SF
-40/40L4B-212SF
-40/40L4B-312SF
-40/40L4B-412SF
-40/40L4B-512SF
