Description

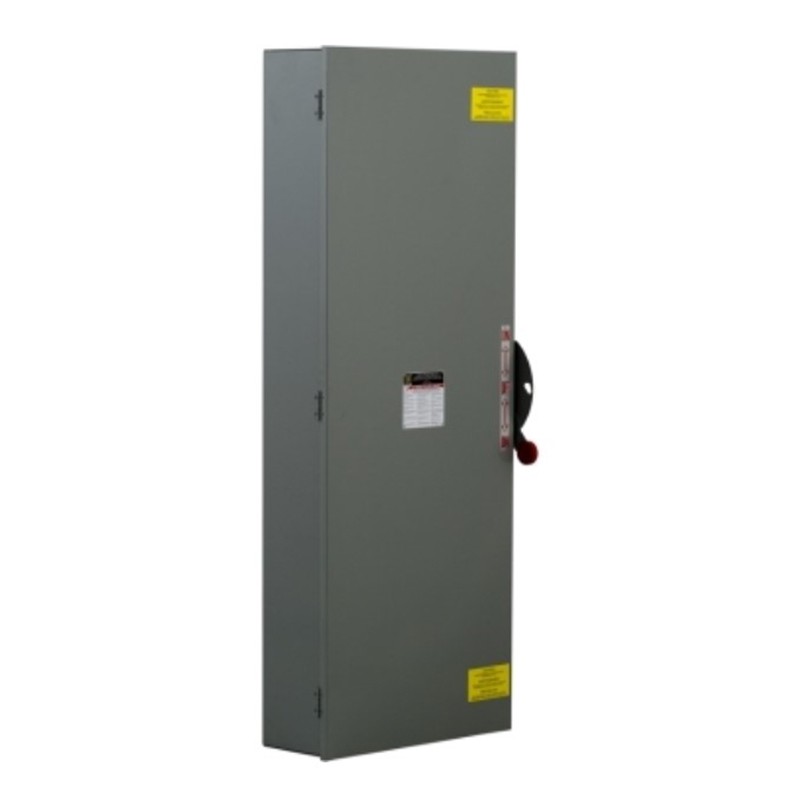

Square D DTU366R Double Throw, Non-Fusible, 600A, 600 VAC/VDC, 3 Poles Safety Switch
Product Specifications:
Brand: Square D
Part Number: DTU366R
Product: Double Throw Safety Switch
Duty Rating: General duty
Disconnect Type: Non-fusible disconnect switch
Number of Poles: 3
Current Rating: 600 A
Voltage Rating: 600 V AC / 600 V DC
Enclosure Rating: NEMA 3R
Motor power HP:
125 hp at 240 V AC 50-60 Hz for 3 phase motors
250 hp at 480 V AC 50-60 Hz for 3 phase motors
350 hp at 600 V AC 50-60 Hz for 3 phase motors
50 hp at 250 V DC
Short-circuit current: 10 kA H or K / 100 kA R, J or T
Fuse type: H or K / R, J or T
Mounting Type: Surface
Wire Size: 250…500 kcmil copper or aluminium
Tightening torque:
200 lbf.in (22.60 N.m)
275 lbf.in (31.07 N.m)
375 lbf.in (42.37 N.m)
500 lbf.in (56.49 N.m) (250…500 kcmil)
Depth: 8.88 in (225.55 mm)
Width: 23.66 in (600.96 mm)
Height: 63.76 in (1619.50 mm)
Net Weight: 175.05 lb(US) (79.4 kg)
Certifications: UL Listed
