Description

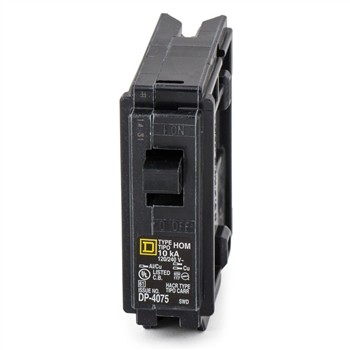

Square D HOM115 Mini circuit breaker Homeline 15A 1 pole 120/240 VAC 10 kA AIR standard type plug in mount
Product Specifications:
Brand: Square D
Part Number: HOM115
Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 15 A
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR and Switching Duty rated
Electrical Connection: Clamp terminal for 2 cables
Inturrupt Rating: 10 kA
Number of Panel Spaces: 1
Wire Size: AWG 14…AWG 8 aluminium/cooper)1 AWG 14…AWG 10 cooper)2
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) AWG 14…AWG 8)
height: 3.13 in (76.20 mm)
depth: 2.98 in (73.91 mm)
width: 1 in (19.05 mm)
Certifications: UL listed CSA
Ambient Rating: 104 °F (40 °C)
