Description

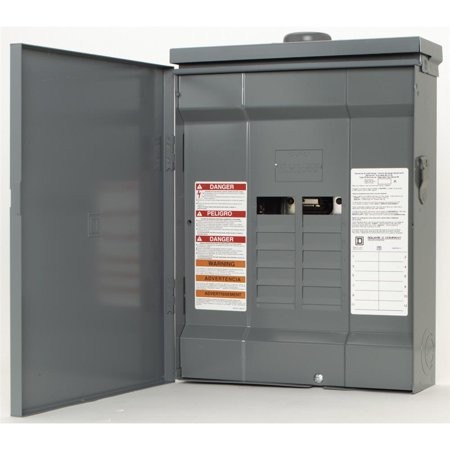

SQUARE D HOM1224L125PRB Load Center Homeline LC 100 A 120/240 V 1 PH ML fixed 6 SP N3R surf CP
Product Specifications:
Brand: Square D
Part Number: HOM1224L125PRB
Product: Load Center
Marketing Trade Name: Homeline
load center type: Main lugs
Line Rated Current: 125 A
number of spaces: 12
number of circuits: 24
Enclosure Rating: NEMA 3R outdoor
cover type: Surface cover
electrical connection: Lugs
short-circuit current: 10 kA
Number of Tandem Breakers: 6
Number of Phases: 1 phase
[Ue] rated operational voltage: 120/240 V AC
Wire Size: AWG 6…AWG 2/0 aluminium AWG 6…AWG 1 copper
wiring configuration: 3-wire
cover finish: Gray baked enamel
Busbar Material: Tin plated aluminium busbar
enclosure material: Welded galvannealed steel
surface finish: Baked enamel grey
box number: 2R
height: 18.94 in (481 mm)
width: 14.76 in (375 mm)
depth: 4.25 in (108 mm)
ambient air temperature for operation: 23 °F (-5 °C)/104 °F (40 °C)
