Description

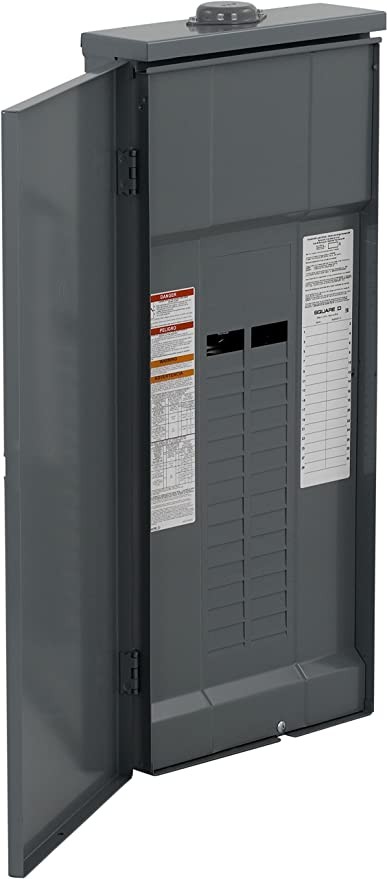

SQUARE D HOM3060L225PRB Load Center Homeline LC 225 A 120/240 V 1 PH MLO PoN 30 SP N3R surf
Product Specifications:
Brand: Square D
Part Number: HOM3060L225PRB
Product: Load Center
Marketing Trade Name: Homeline
load center type: Main lugs
Line Rated Current: 225 A
number of spaces: 30
number of circuits: 60
Enclosure Rating: NEMA 3R outdoor
cover type: Surface cover
electrical connection: Lugs
short-circuit current: 10 kA
Number of Tandem Breakers: 30
Number of Phases: 1 phase
[Ue] rated operational voltage: 120/240 V AC
Wire Size: AWG 4…250 kcmil copper AWG 4…300 kcmil aluminium
wiring configuration: 3-wire
cover finish: Gray baked enamel
Busbar Material: Tin plated aluminium busbar
enclosure material: Welded galvannealed steel
surface finish: Baked enamel grey
box number: 7R
height: 33.78 in (858 mm)
width: 14.76 in (375 mm)
depth: 4.53 in (115 mm)
ambient air temperature for operation: 23 °F (-5 °C)/104 °F (40 °C)
