Description

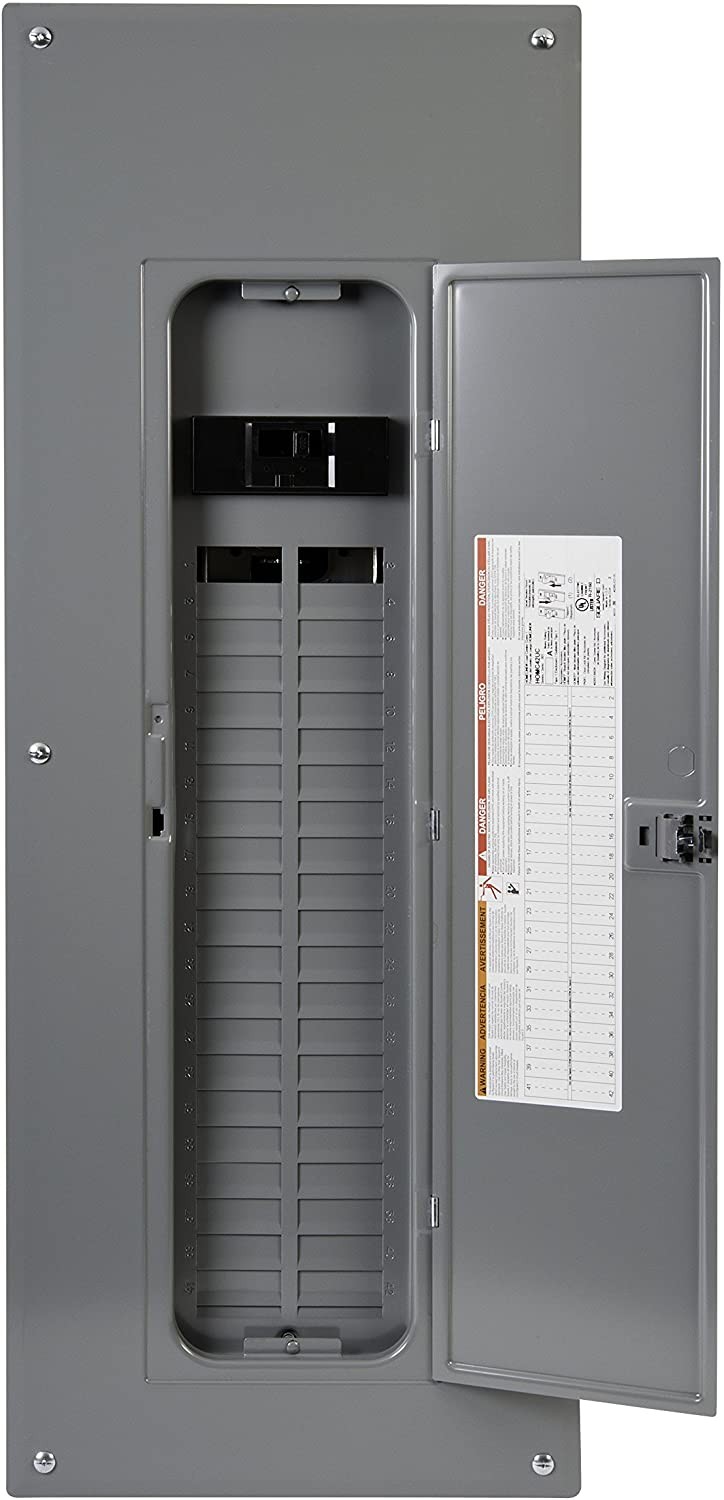

SQUARE D HOM4284M225PC Load Center Homeline LC 225 A 120/240 V 1 PH MB PoN 42 SP N1 combo
Product Specifications:
Brand: Square D
Part Number: HOM4284M225PC
Product: Load Center
Marketing Trade Name: Homeline
load center type: Main breaker
Line Rated Current: 225 A
number of spaces: 42
number of circuits: 84
Enclosure Rating: NEMA 1 indoor
cover type: Combination flush/surface cover
electrical connection: Lugs
Included Options: Circuit breaker 1) 2P 225 A 120/240 V AC main supply ready assembled
short-circuit current: 22 kA
Number of Tandem Breakers: 42
Number of Phases: 1 phase
[Ue] rated operational voltage: 120/240 V AC
Wire Size: AWG 4…250 kcmil copper AWG 4…300 kcmil aluminium
wiring configuration: 3-wire
cover finish: Gray baked enamel
Busbar Material: Tin plated aluminium busbar
enclosure material: Welded sheet steel
surface finish: Baked enamel grey
box number: 12
height: 39.37 in (1000 mm)
width: 14.25 in (362 mm)
depth: 3.74 in (95 mm)
ambient air temperature for operation: 23 °F (-5 °C)/104 °F (40 °C)
