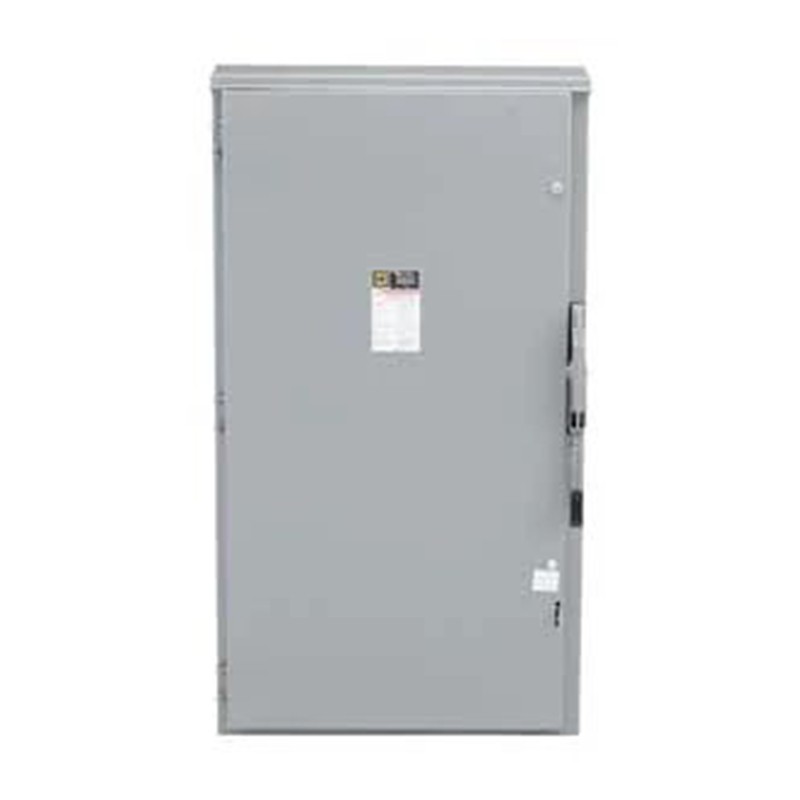

Brand: Square D

Part Number: HU365R

Duty Rating: Heavy Duty

Device Application: Heavy Application

Disconnect Type: Non-Fusible Disconnect

Phase: 3 Phase

Number of Poles: 3

Current Rating: 400 A

Voltage Rating: 600 V AC/DC

Enclosure Rating: NEMA 3R Galvanized Steel

Mounting Type: Surface

Electrical Connection: Lugs

Wiring Configuration: 3-wire

Wire Size: AWG 1/0…750 kcmil Copper or Aluminium

Tightening Torque: 550 lbf.in (62.14 N.m) (AWG 1/0…750 kcmil)

Depth: 10.13 in (257.30 mm)

Width: 27.88 in (708.15 mm)

Height: 50.31 in (1277.87 mm)

Net Weight: 186.95 lb(US) (84.8 kg)

Certifications: UL listed file E2875

RoHS Compliant

Warranty: 18 Months

Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required.

All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle.

They are suitable for use as service equipment when equipped with a field- or factory-installed neutral assembly or equipment grounding kit, unless a 600Y/347V or 480Y/277V, 1000A or greater, solidly grounded WYE system is used, per NEC 215-10.

Heavy duty safety switches are UL Listed File E2875 and 154828 and meet or exceed the NEMA Standard KS1.
