Description

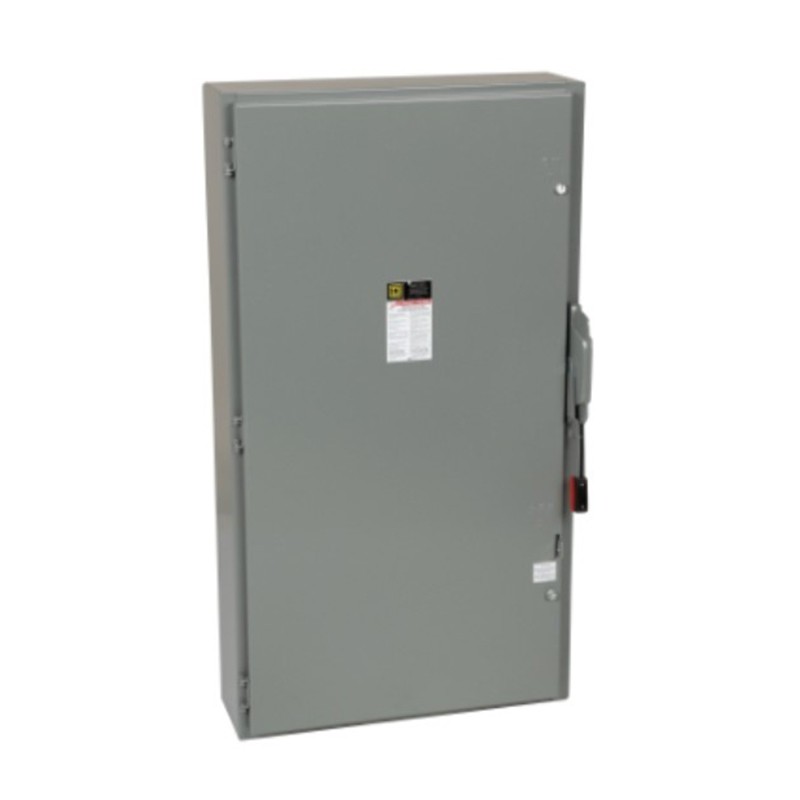

Square D HU366 Heavy Duty Non Fusible, 600A, 3 Poles, 500 HP Safety Switch
Product Specifications:
Brand: Square D
Part Number: HU366
Device Application: Heavy application
Disconnect Type: Non-fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 600 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 1 steel
Maximum Horse Power Rating:
200 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
400 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
500 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
50 hp 250 V at DC conforming to NEC 430.52
50 hp 600 V at DC
Mounting Type: Surface
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Wire Size: AWG 3/0 500 kcmil copper or aluminium
Tightening torque: 375 lbf.in (42.37 N.m) (AWG 3/0 500 kcmil)
Depth: 10.13 in (257.30 mm)
Width: 27.63 in (701.80 mm)
Height: 50.25 in (1276.35 mm)
UL listed
Warranty: 18 months
