Description

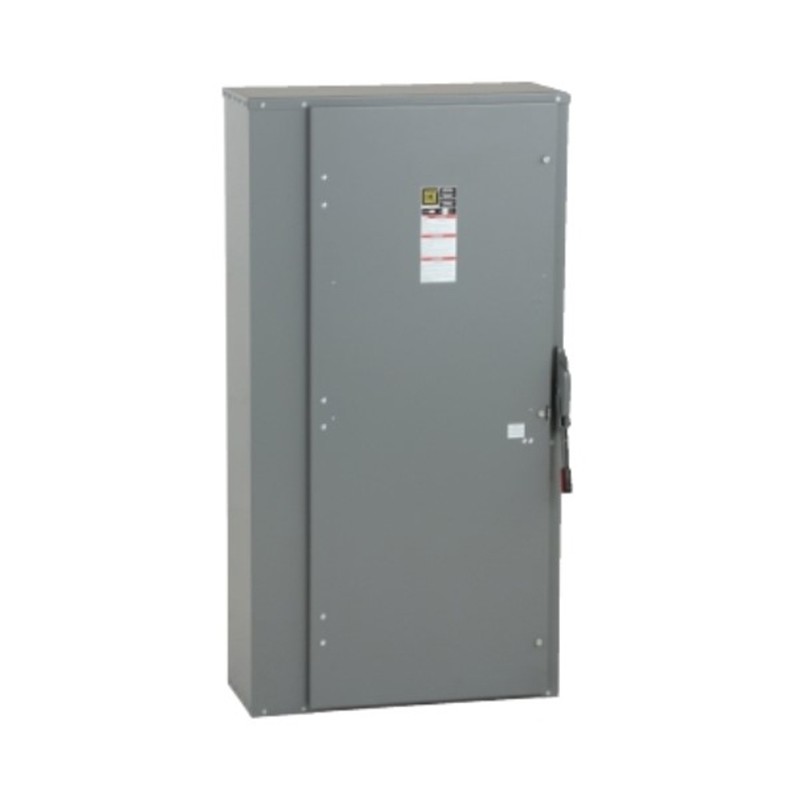

Square D HU367 Heavy Duty non fusible, 800A, 3 poles, 500 hp Safety Switch
Product Specifications:
Brand: Square D
Part Number: HU367
Device Application: Heavy application
Disconnect Type: Non-fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 3
Current Rating: 800 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 1 steel
Maximum Horse Power Rating:
500 hp 480 V AC 50…60 Hz 3 phases NEC 430.52
50 hp 600 V AC 50…60 Hz 1 phase NEC 430.52
500 hp 600 V AC 50…60 Hz 3 phases NEC 430.52
50 hp 600 V DC
Mounting Type: Surface
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Wire Size: AWG 3/0 500 kcmil copper or aluminium
Tightening torque: 375 lbf.in (42.37 N.m) (AWG 3/0 500 kcmil)
Depth: 17.75 in
Width: 36.62 in
Height: 69.13 in
UL listed
Warranty: 18 months
Warranty: 18 months
