Description

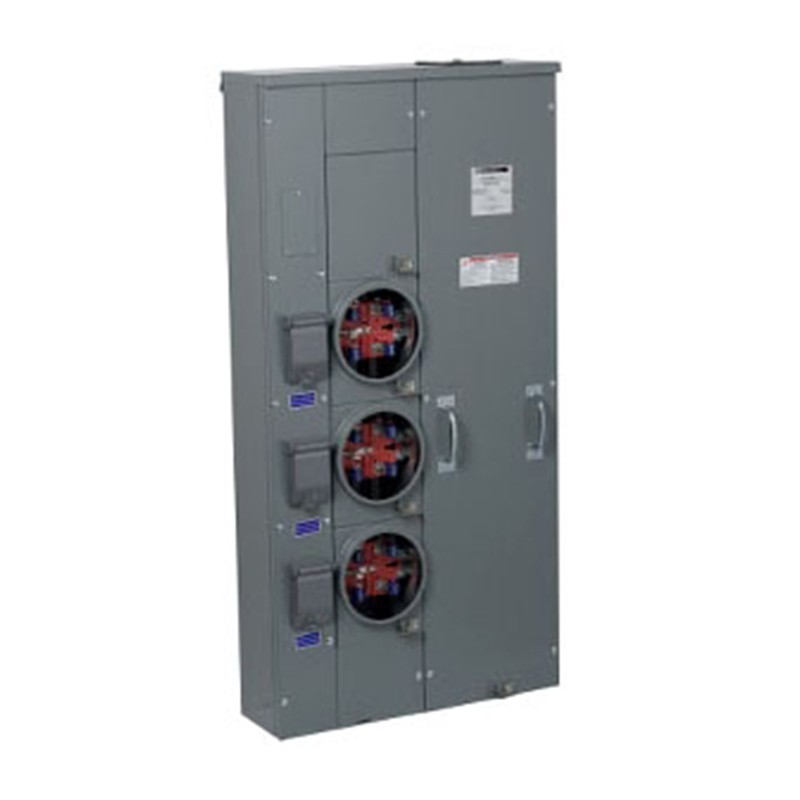

Square D MPR33125 125A 3 Position Meter MP Ringless Device
Product Specifications:
Brand: Square D
Part Number: MPR33125
Bus Material: Aluminum
Number of Sockets: 3
Socket Current Rating: 125 Ampere
Socket Cover Style: Ringless
Number of Jaws: 5
Wire Size: (1) 1/0 AWG to 600 KCMIL/(2) 1/0 AWG to 250 KCMIL (Aluminum/Copper, Phase/Neutral)
Enclosure Type: NEMA 3R
Enclosure Material: ANSI Gray Baked Powder Coated Epoxy Electrodeposited Phosphatized Steel
Mounting: Surface
Size: 24.34 Inch W x 7.28 Inch D x 48.12 Inch H
Approval: UL
Additional Information: Service Type Overhead/Underground
Brand Name: Meter-Pak[R]
Model: MP
Type: Service Entrance
Breaker Type: QO/QO-VH/QOH
Voltage Rating: 120/240 VAC
Circuit Configuration: 1-Phase 3 Wire
Bus Current Rating: 300 Ampere
