Description

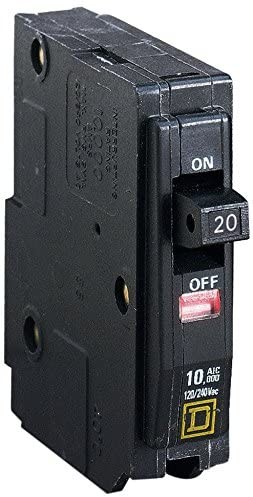

Square D QO120 QO mini breaker 20 A 1 pole 120/240 V 10 kA plug in
Product Specifications:
Brand: Square D
Part Number: QO120
Product: Miniature circuit-breaker
Range: QO
Current Rating: 20 A
Voltage Rating: 120/240 V AC 120 V AC 48 V DC
Mounting Type: Plug-in
Number of Poles: 1P
Circuit Breaker Type: Standard
Ratings: HACR and Switching Duty rated
Electrical Connection: Pressure plate
Inturrupt Rating: 10 kA 120/240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC
Number of Panel Spaces: 1
Wire Size: AWG 14…AWG 8 copper or aluminium
tightening torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) AWG 8…AWG 2)
height: 3 in (76.20 mm)
depth: 2.91 in (73.91 mm)
width: 0.75 in (19.05 mm)
Certifications: UL listed CSA
Ambient Rating: 104 °F (40 °C)
