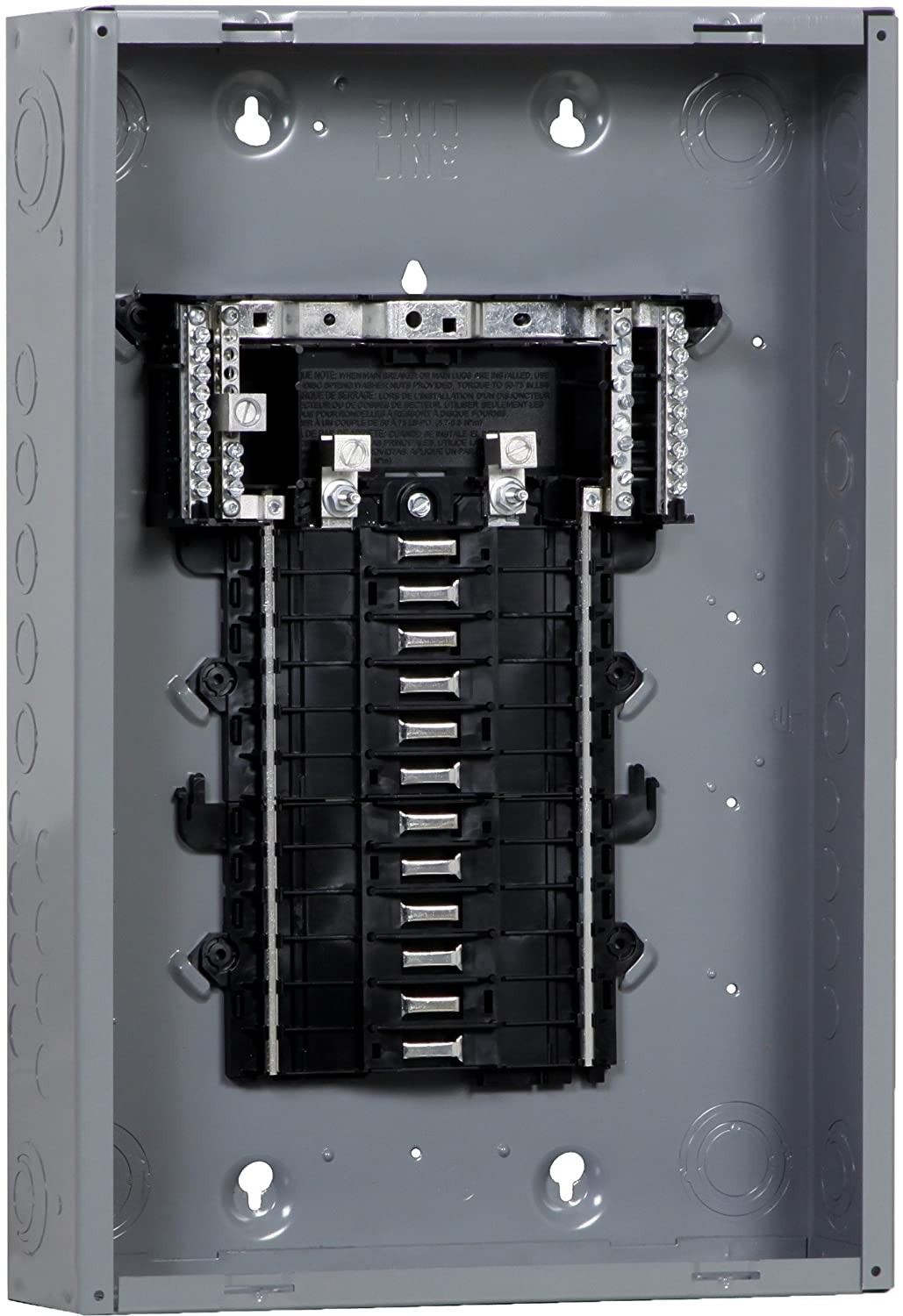

SQUARE D QO124L125PG QO 125A 1 Phase 24 Space Plug On Neutral Main Lug Load Center 24 1 Pole
Product Specifications:
Brand: Square D
Part Number: QO124L125PG
Product: Load Center
cover type: Order separately
tightening torque: Main lugs 50 lb.in, AWG 6…AWG 2/0, aluminium/copper
Cover 20 lb.in
Load Center Type: Main lugs
Line Rated Current: 125 A
number of spaces: 24
Short Circuit Current Rating: 65 kA
Maximum Number of Single Pole Circuits: 24
Maximum Number of Tandem Breakers: 0
Number of Phases: 1 phase
Voltage Rating: 120/240 V AC
Wire Size: AWG 6…AWG 2/0 aluminium/copper
Electrical Connection: Lugs
Grounding Bar: Grounding bar included (not installed)
electrical connection: Lugs
wiring configuration: 3-wire
Busbar Material: Tin plated copper busbar
Enclosure Material: Welded sheet steel
Cover Finish: Baked enamel grey
box number: 7
height: 20.91 in (531 mm)
width: 14.25 in (362 mm)
Enclosure Rating: NEMA 1 indoor
ambient air temperature for operation: 23 °F (-5 °C)/104 °F (40 °C)
