Description

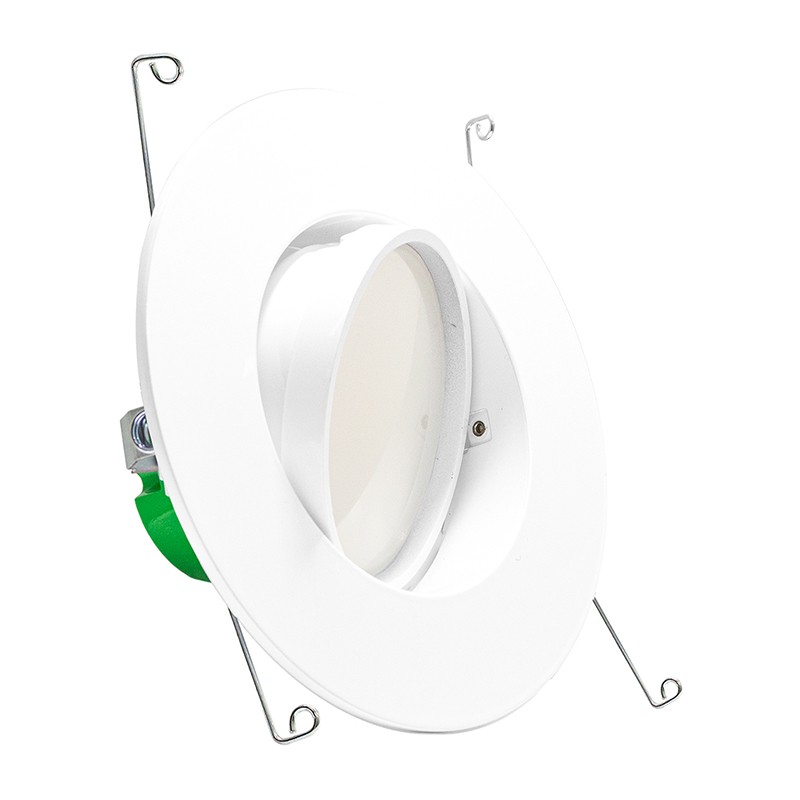

Westgate RDL6-ADJ-MCT5 LED 6in 14W Adjustable Color Temperature Recessed Trim
Product Specifications:
Brand: Westgate
Part Number: RDL6-ADJ-MCT5
Voltage: 120V AC
Output Voltage: 36VDC
Power Factor: >0.90
Wattage: 11W
Efficacy: 81 LPW
Total Harmonic Distortion: ≤15 %
Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
LED: Epistar Chip (COB) and Driver—35,000-hour Design Life
Can Rotate after Installation to Align
Adjustable Lens” & “Tilts 45°
Optics: White Translucent Acrylic Lens
Total Lumens: 1400LM Max.

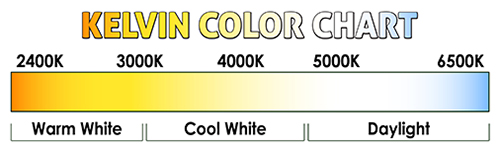

Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
Multi CCT (Selectable Switch on the Back of the driver )
Color Rendering Index: CRI ≥ 90
Spun Aluminum with White Powder Coat Finish
Includes 8” Medium Base E-26 Screw-in Adapter That
Fits any Standard Incandescent Down-light
Maximum Ambient Temperature: 104°F
Fits in Standard 6” Recessed Housings
Rated life: 50,000 hrs
Damp Location
5-Year Warranty
Features:
6” Smooth Recessed Trim
Multi CCT (Selectable Switch on the Back of the driver )
Isolated Driver for Improved Thermal Management
Can Rotate after Installation to Align
Spun Aluminum White Powder Coat Finish
Tilts to 45º
Applications:
LED retrofit trim have been designed to be a flexible
lighting solution for retrofit and new construction
applications, Ideal for closets,storage areas, attics,
corridors, or general lighting solutions for residential
and commercial applications
