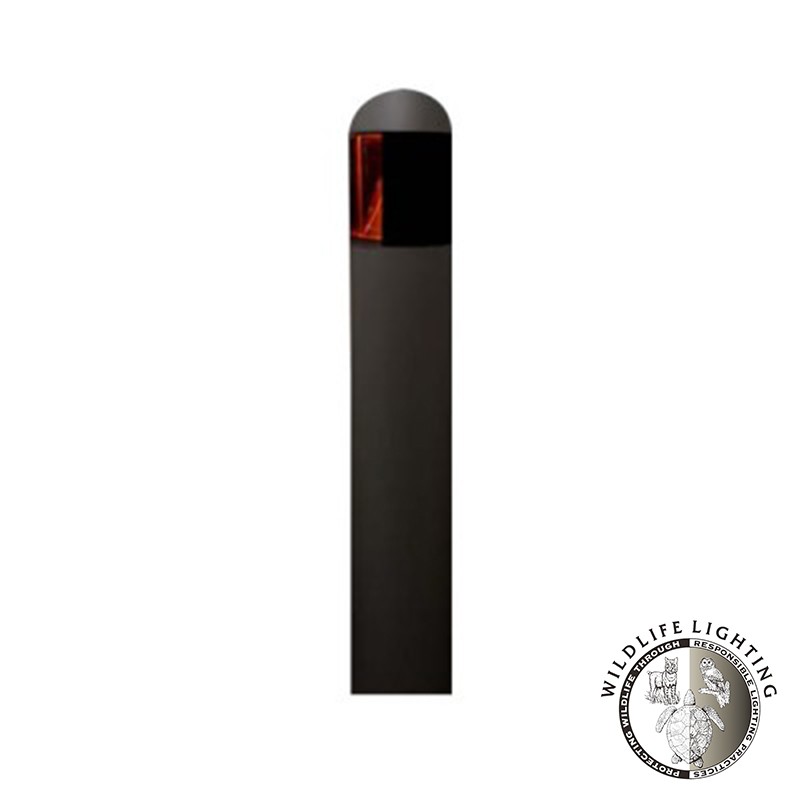

Atlantic Industrial AIBOWRLQF1X15 15W Amber Round Dome Bollard with Cone Reflectors
Product Specifications:
Brand: Atlantic Industrial
Part Number: AIBOWRLQF1X15
Housing: Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws,
Domed Top, Internal Ballast Tray for Easy Maintenance. Includes 270° Shield Required
to Maintain FWC Certification. Bollards Can Be Cut to Custom Lengths Upon Request.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion
Coating. Custom Colors Available Upon Request.
Style: Specially Designed Aluminum Cone Reflector or Internal Louvers
Lens: Clear Polycarbonate Vandal-Resistant Lens
Mounting Options: Mounting Kit with 8Ëť Anchor Bolts, Included.
Amber LED: Aluminum Boards
Wattage: Array: 14.5w, System: 17w; (70w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard
Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100%
to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for
Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface
of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory.
Fixtures are Tested with Atlantic Controls and May Not Function Properly With Controls
Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty: 5-Year Warranty for -40°C to +40°C Environment
