Description

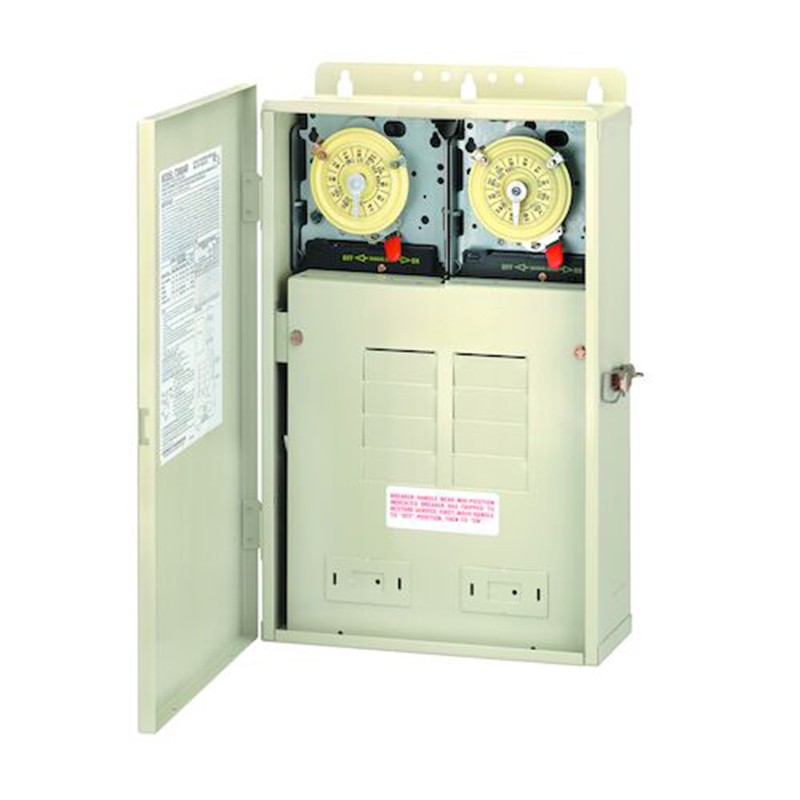

Intermatic T30401R 100 A Load Center with T104M & T101M Mechanisms, 8-Breaker Spaces
Product Specifications:
Brand: Intermatic
Part Number: T30401R
Inductive Load Ratings: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Knockout Dimensions Back/Side: (5) 1/2″ – 3/4″
Knockout Dimensions Bottom: (4) 1/2″ – 3/4″, (3) 1/2″, (2) 3/4″ – 1″
Knockout Dimensions Left: (1) 3/4″ – 1″
Knockout Dimensions Right: (1) 1 3/4″ x 2 3/4″
Dimensions: 4.75″ x 16.875″ x 10.875″
Maximum Power Consumption: 3W
Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz / 5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 2
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Switch Type: DPST/SPST
Tungsten: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Warranty: 1-Year
Eight breaker spaces
Reduces installation costs
Eliminates the need for additional service panels
Fits most of our hard-wired T100 mechanical and PE digital timers
Control two-speed pumps with the T30604R
Fully compatible with all electrical requirements for pool/spa installations
Load center dead front has two knockouts and one on the side for switches or GFCIs
Wiring devices may be installed in these load centers with the use of Standoffs, sold separately
Applications:
Pumps
Lighting
