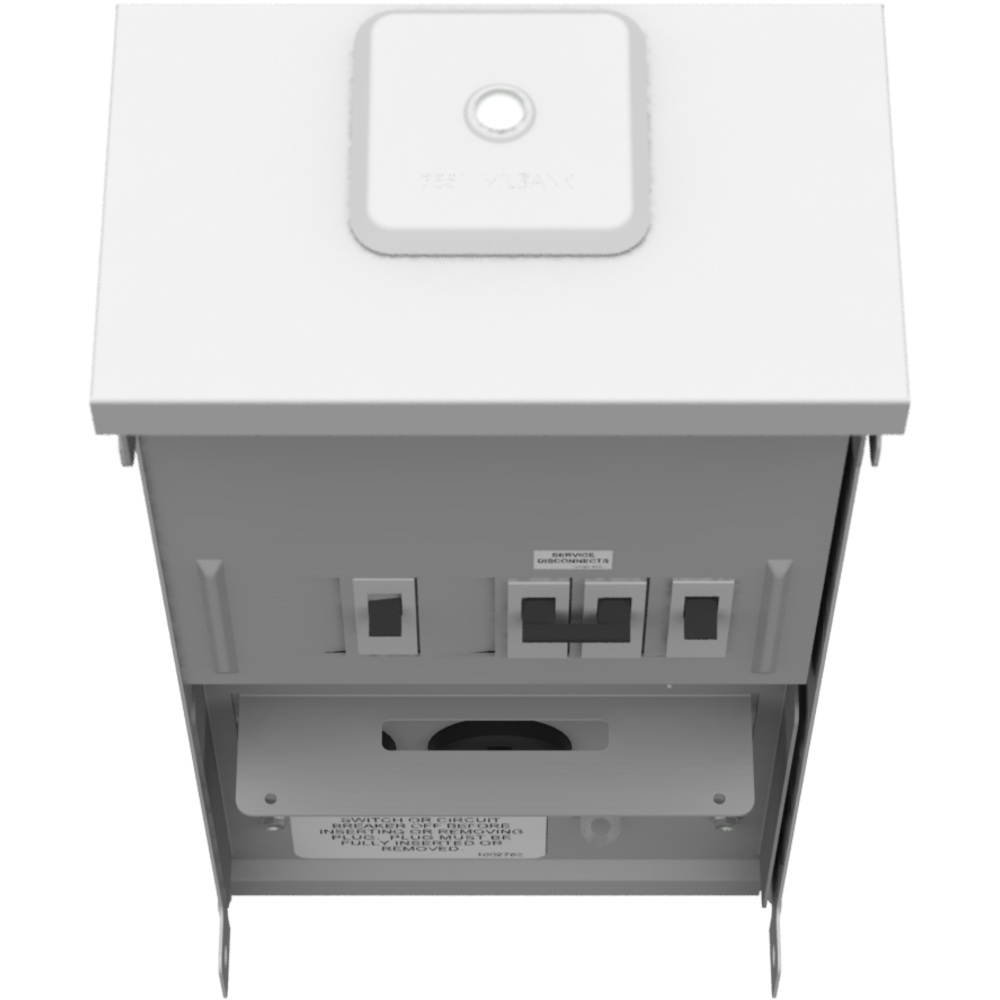

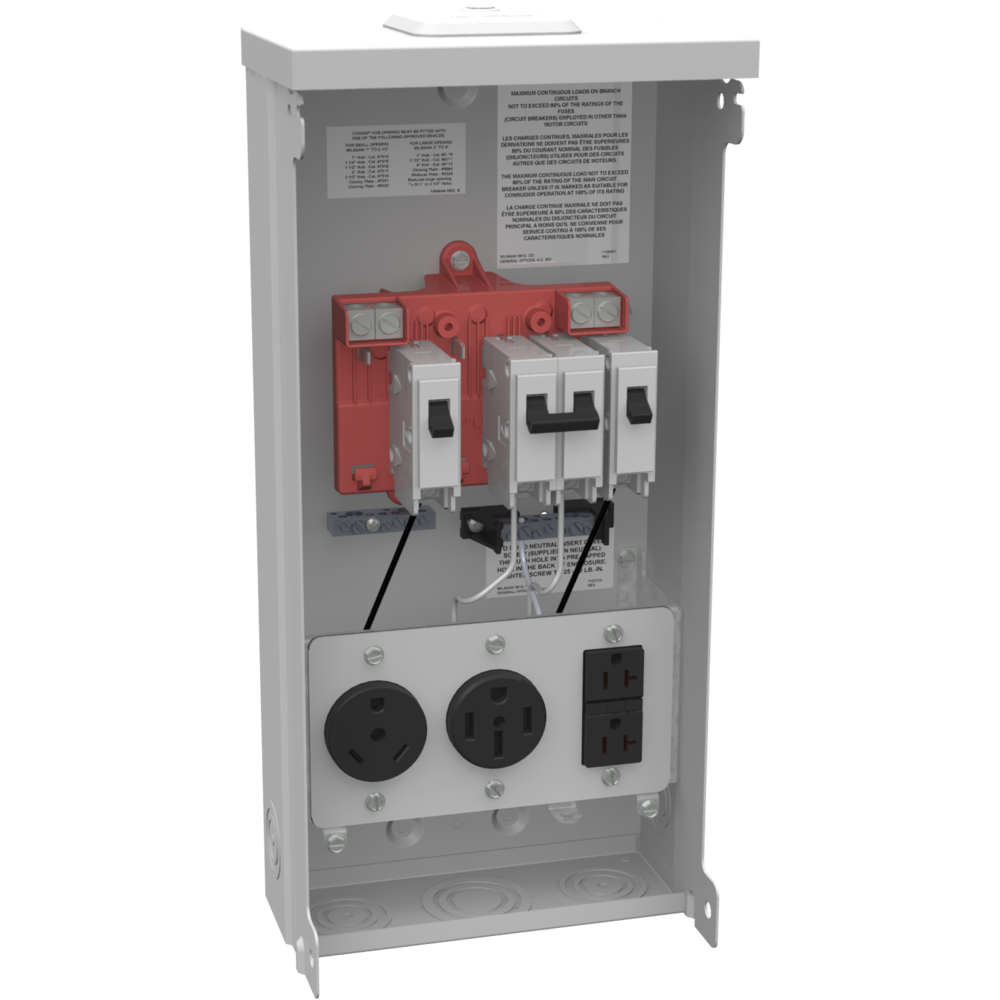

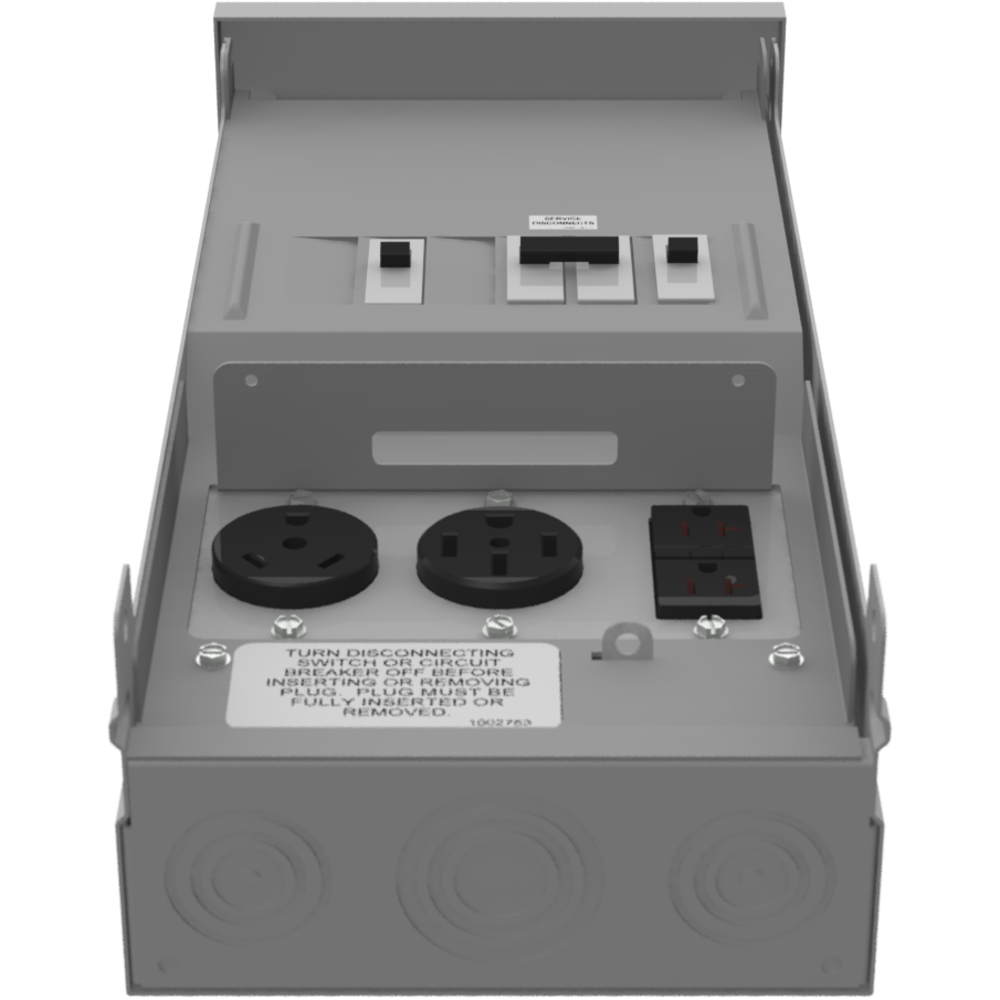

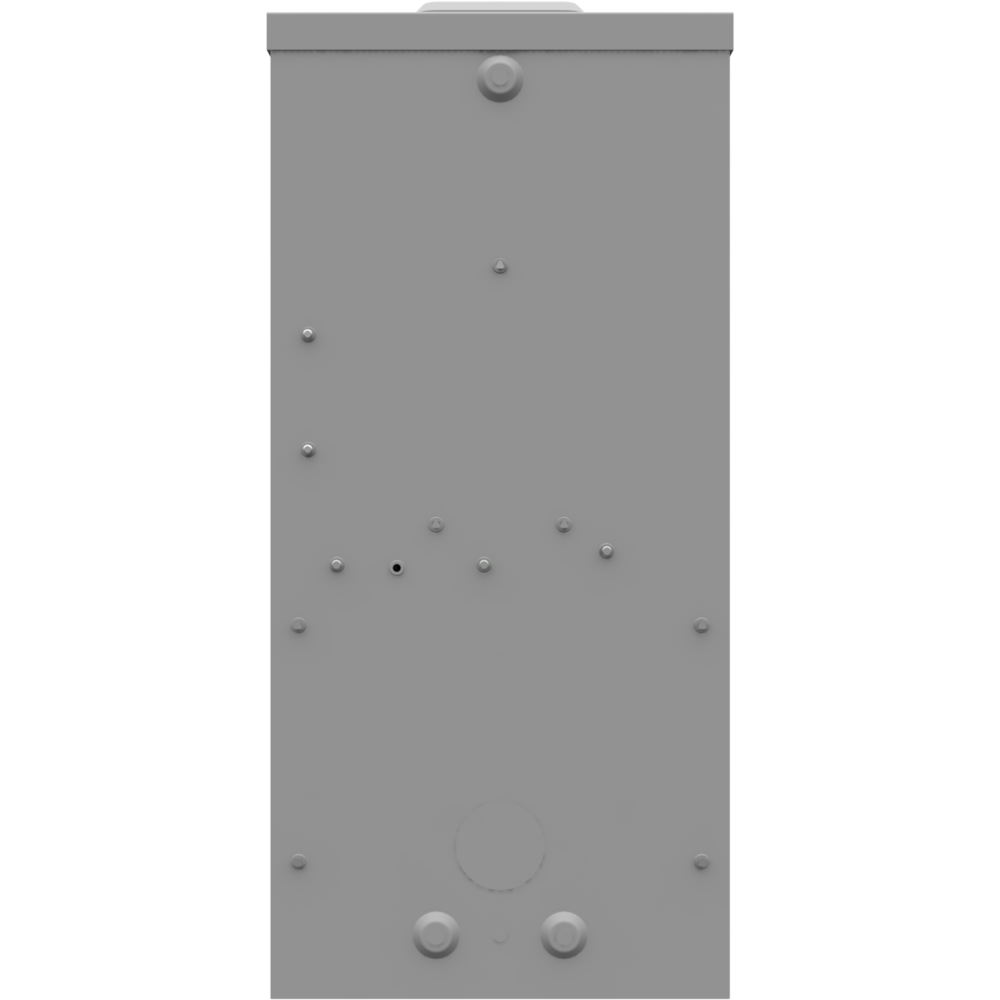

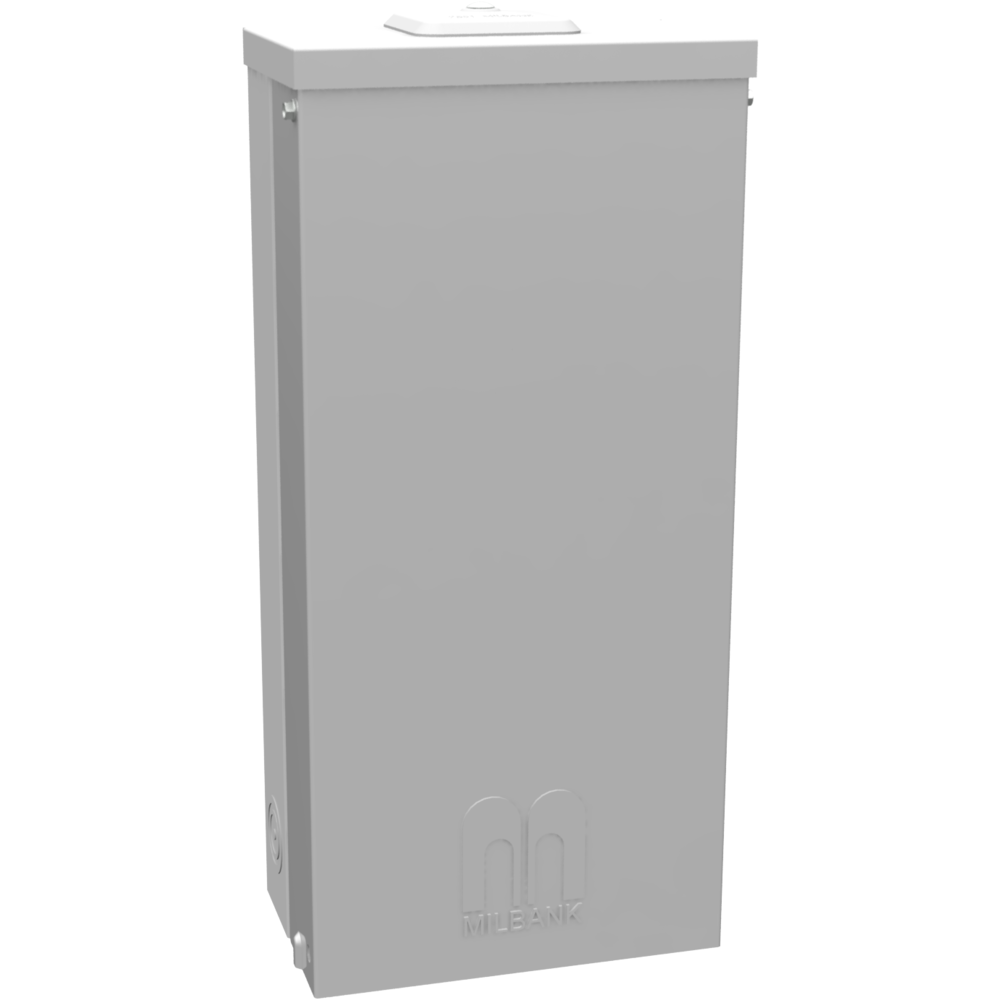

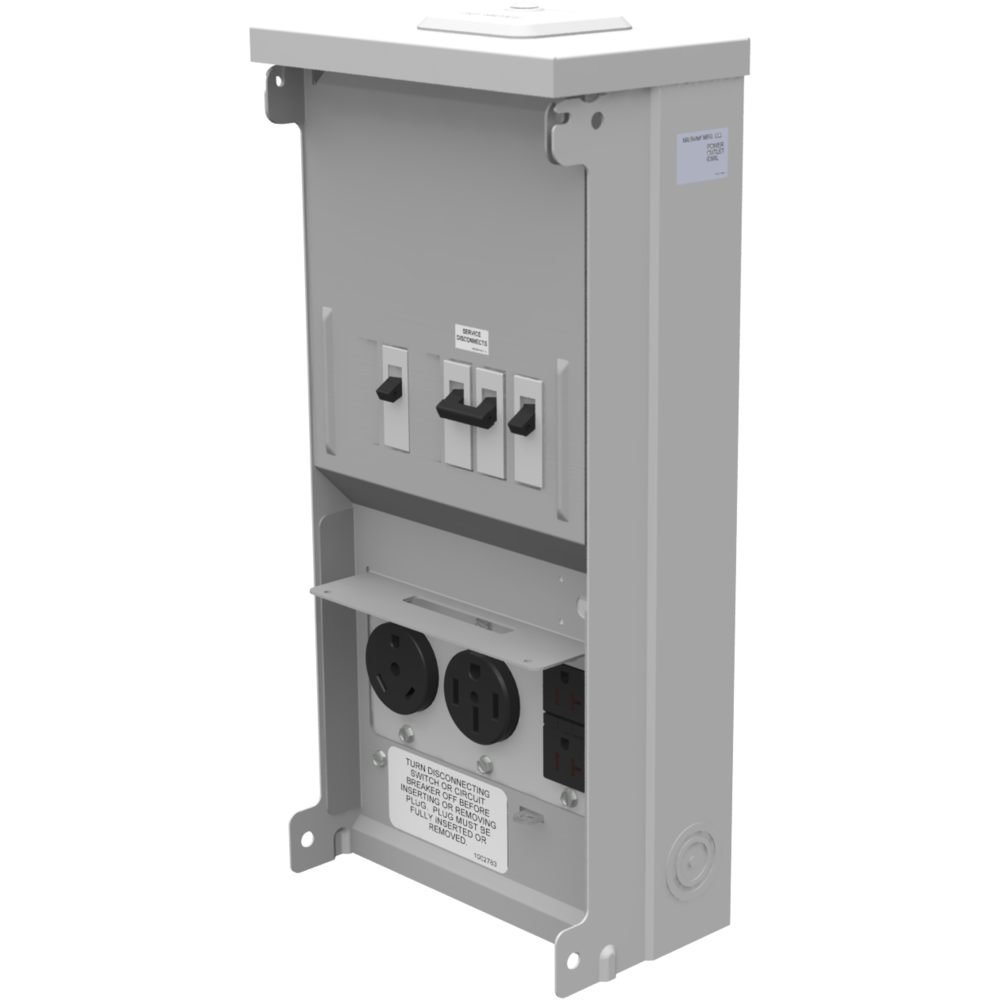

Catalog Number: U5000-XL-75
UPC: 784572258785
Length (IN): 5.188
Width (IN): 8.875
Height (IN): 19.25
Brand Name: Milbank
Type: Unmetered Power Supply
Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker
Application: RV Power
Standard: UL Listed;Type 3R
Voltage Rating: Up to 240 Volts Alternating Current
Amperage Rating: 125 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 5.188L x 8.875W x 19.25H
Number Of Cutouts: 3
Cutout Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampere Breaker
Cable Entry: Overhead or Underground
Terminal: Lay in
Insulation: Glass Polyester
Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 0 Terminals
Bypass Type: No Bypass
Number of Meter Positions: Single Power Head
Equipment Ground: Ground Bar
Hub Opening: Small Closing Plate
Line Side Wire Range: 14 – 2/0 AWG
Number Branch Circuits: 2
Number Of Receptacles: 3
Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
