Catalog Number:  U5100-XL
UPC: 784572258808
Length (IN): 5.188
Width (IN): 8.875
Height (IN): 25
Brand Name: Milbank

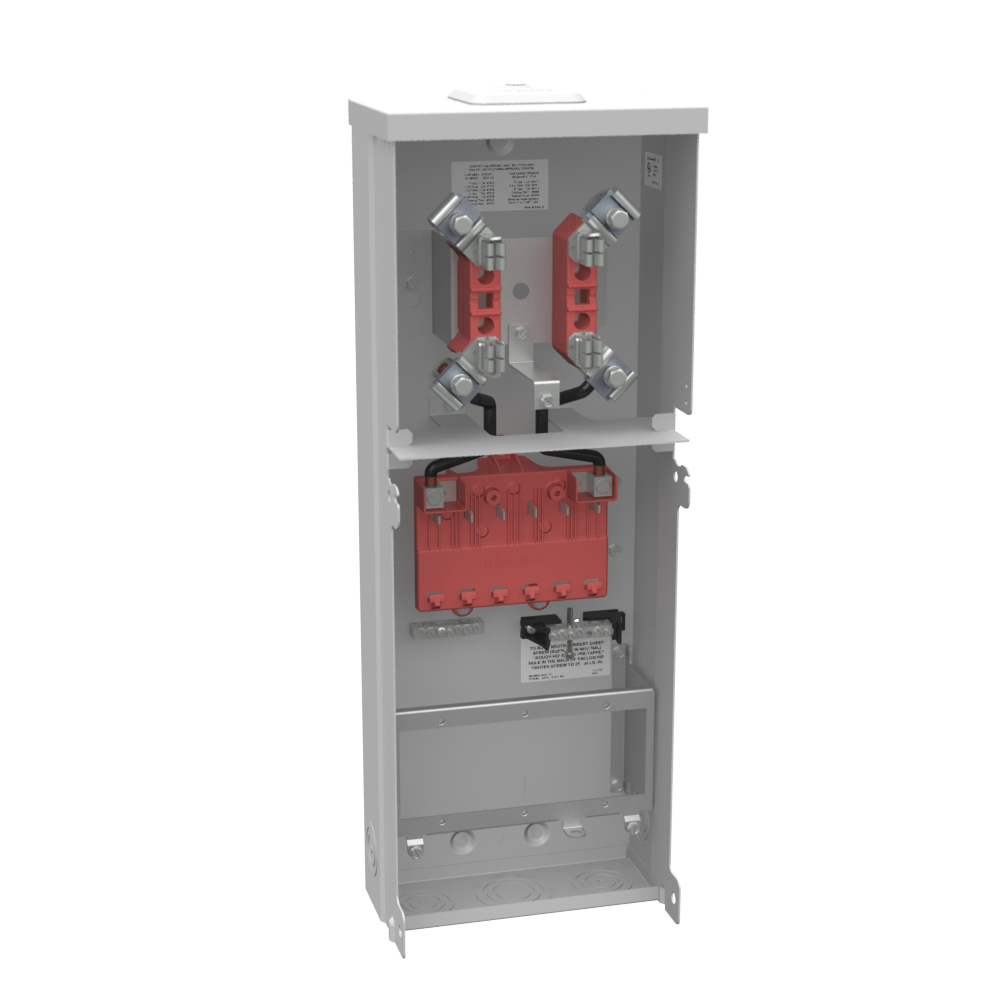

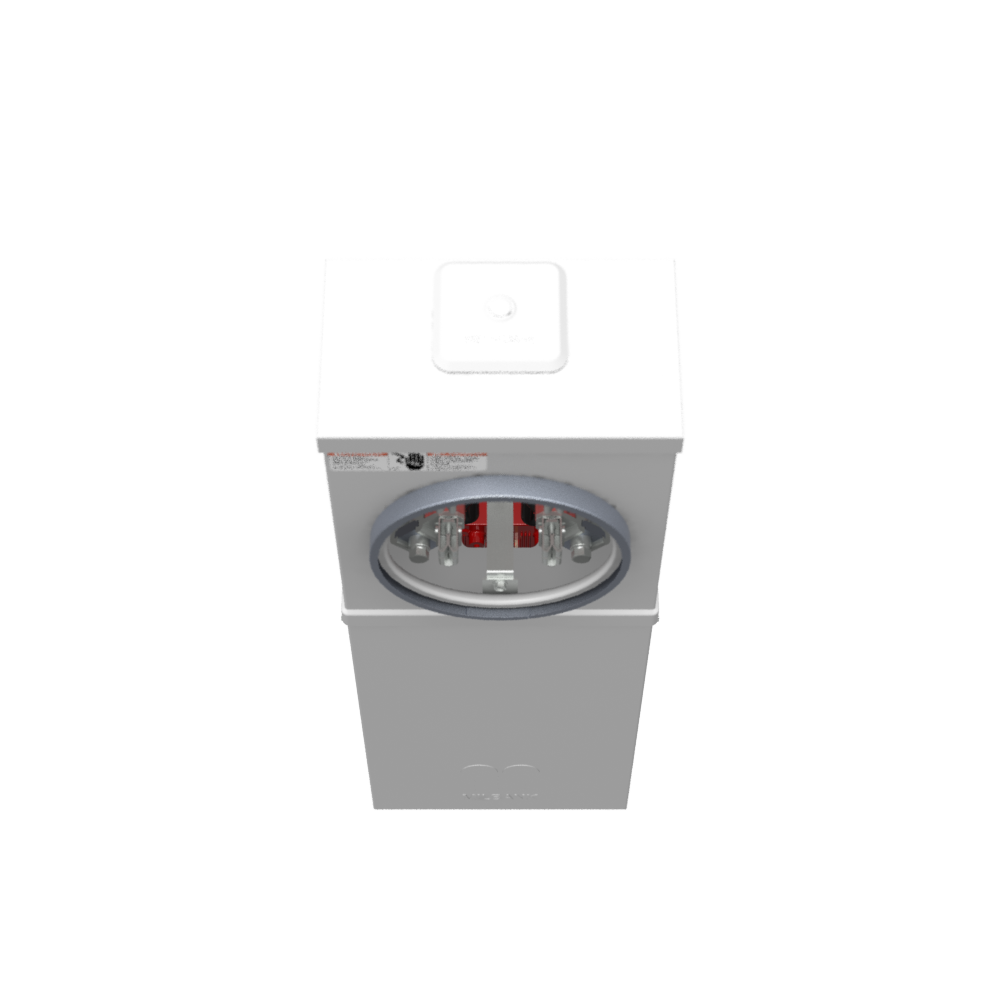

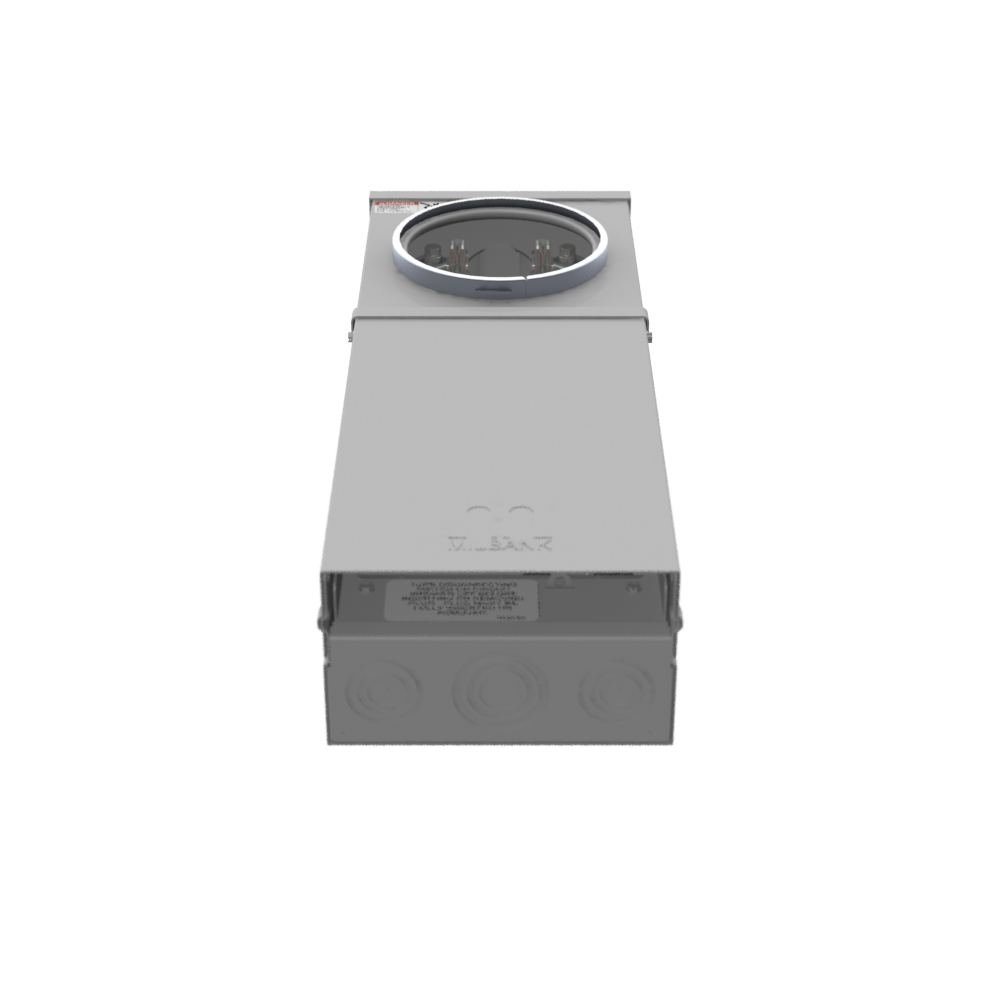

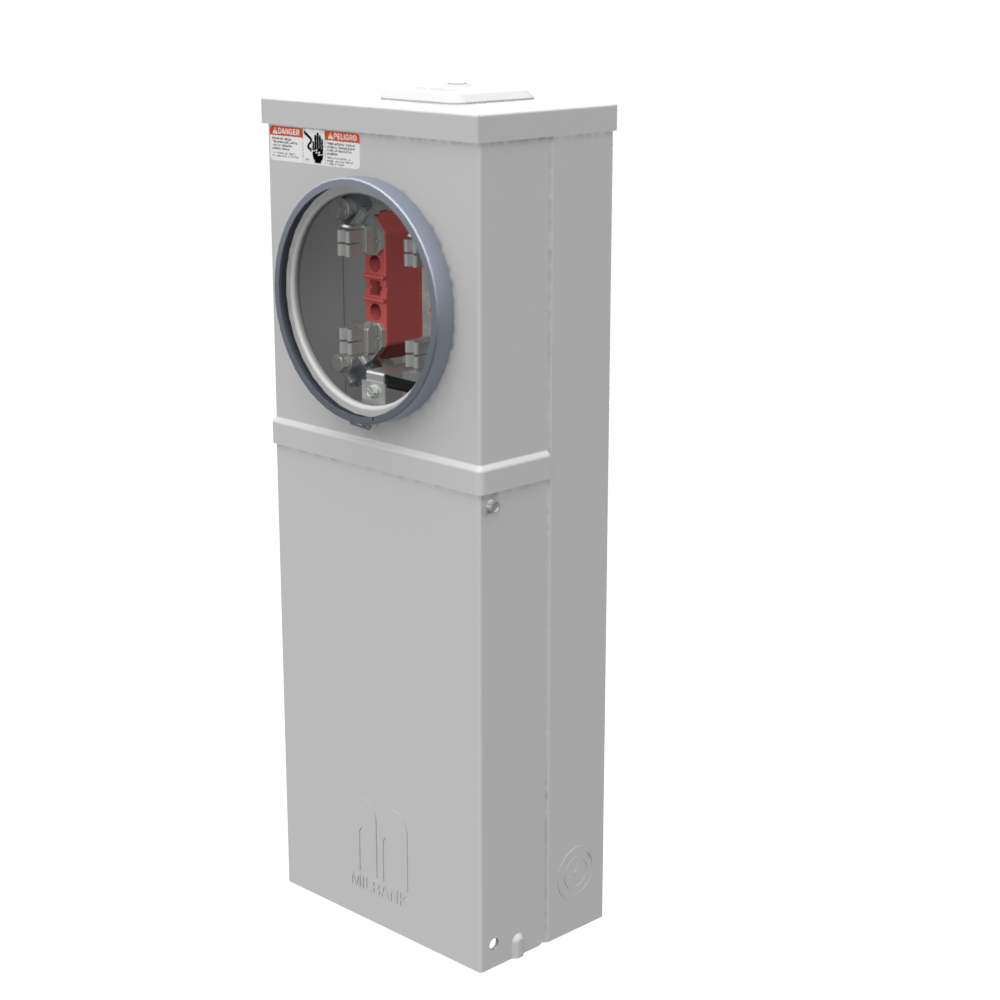

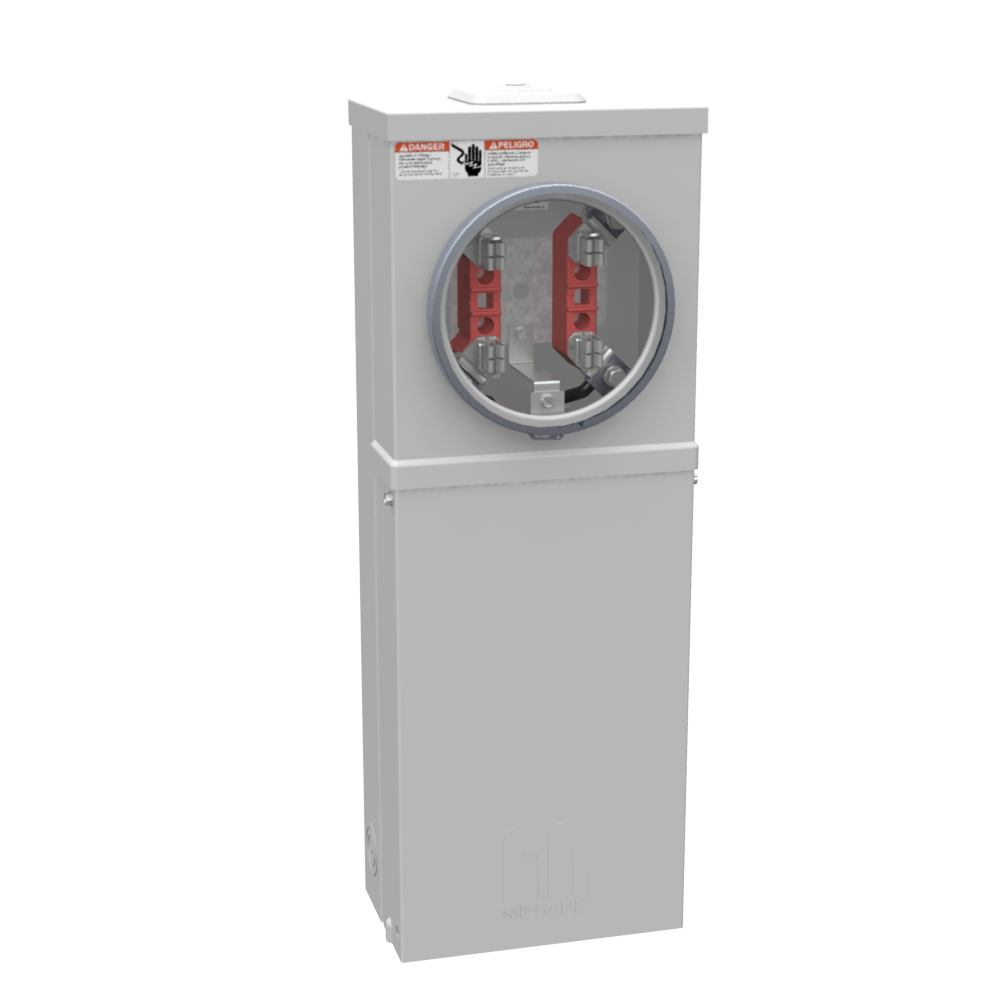

Type: Ring Type Meter Socket
Application: RV Power
Standard: UL Listed;Type 3R
Voltage Rating: Up to 240 Volts Alternating Current
Amperage Rating: 125 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 5.188L x 8.875W x 25H
Number Of Cutouts: 0
Cutout Size: Breaker Provision
Cable Entry: Overhead or Underground
Terminal: Lay in
Insulation: Glass Polyester

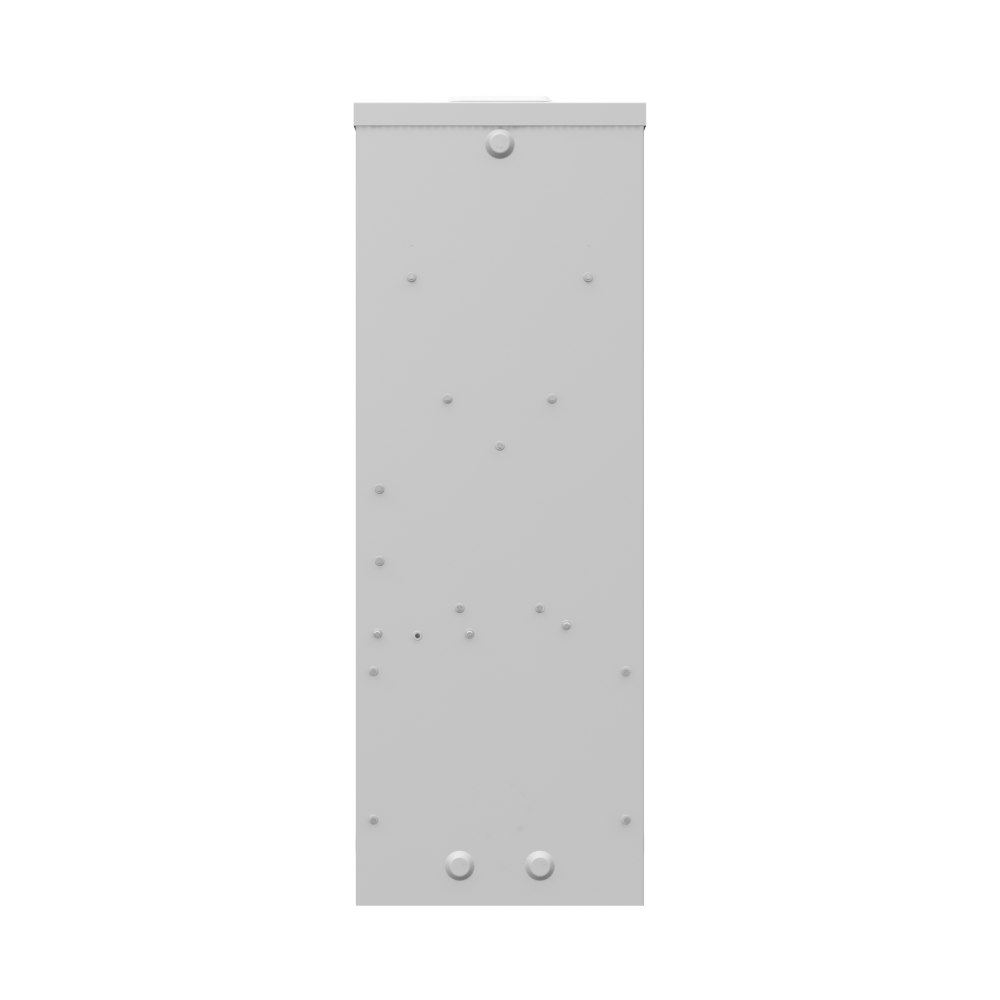

Mounting: Surface Mount
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: Single Power Head
Equipment Ground: Ground Bar
Hub Opening: Small Closing Plate
Line Side Wire Range: 6 AWG – 350 kcmil
Number Branch Circuits: 6
Number Of Receptacles: 0
