Catalog Number: U5300-O-55
UPC: 784572266421
Length (IN): 5.313
Width (IN): 8.688
Height (IN): 70.25
Brand Name: Milbank

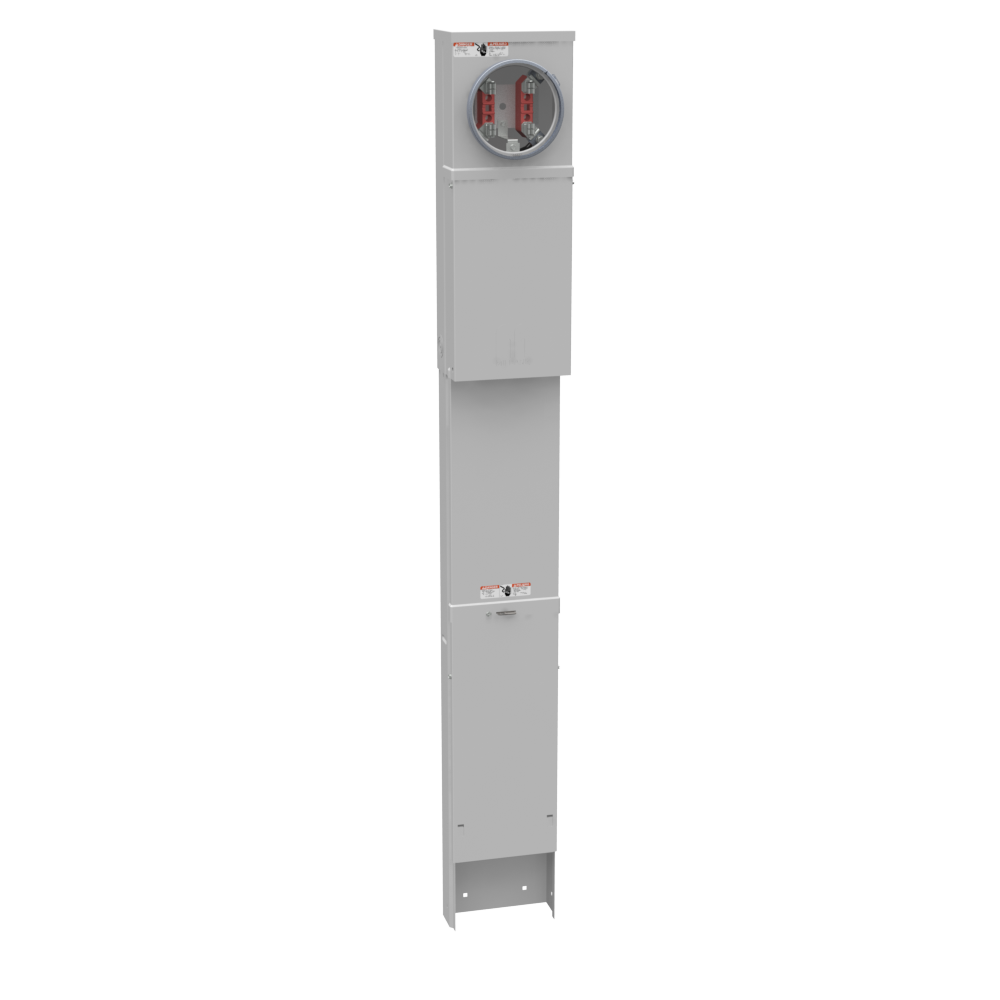

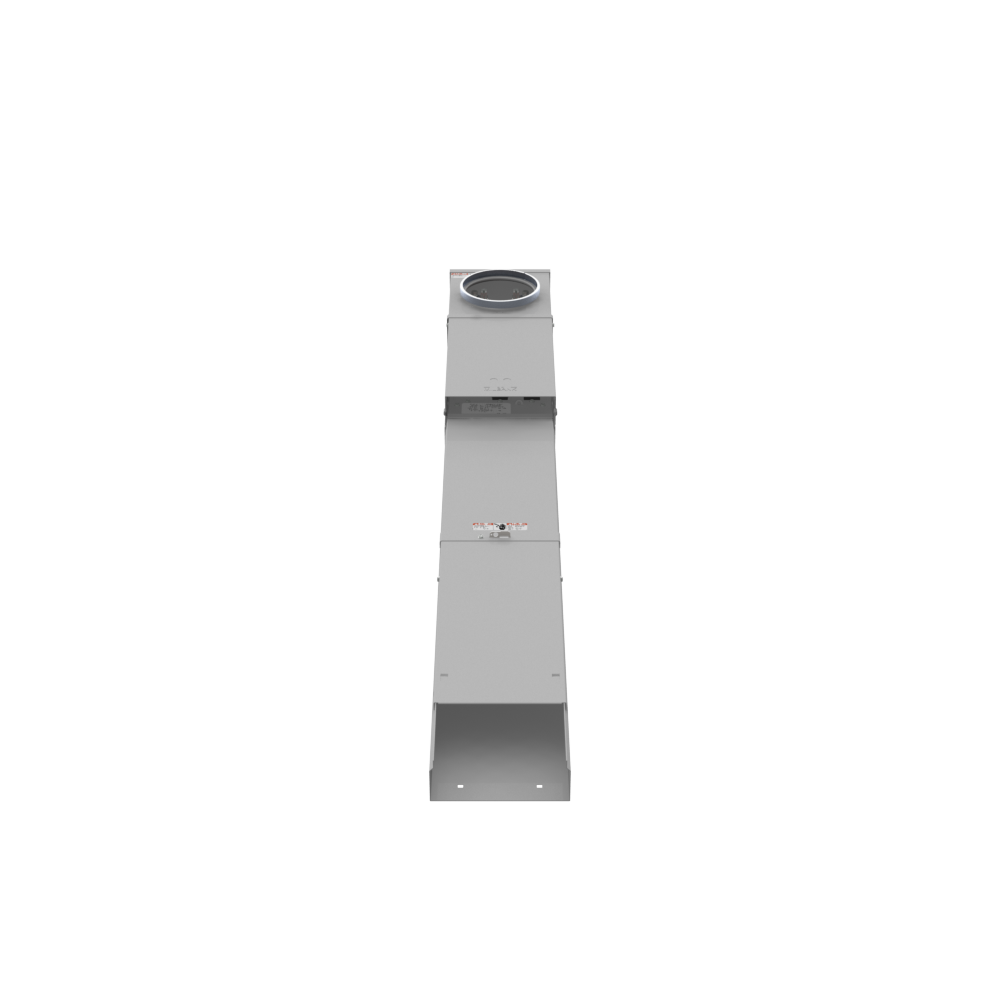

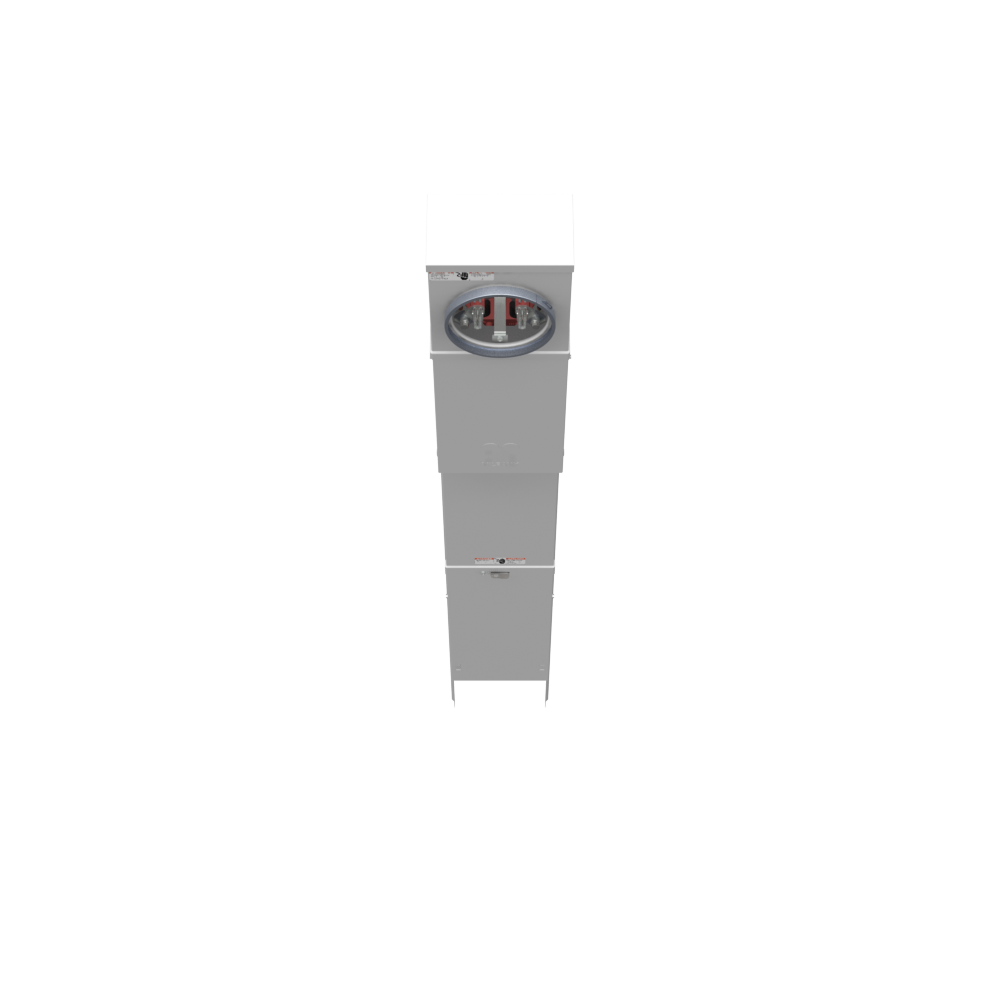

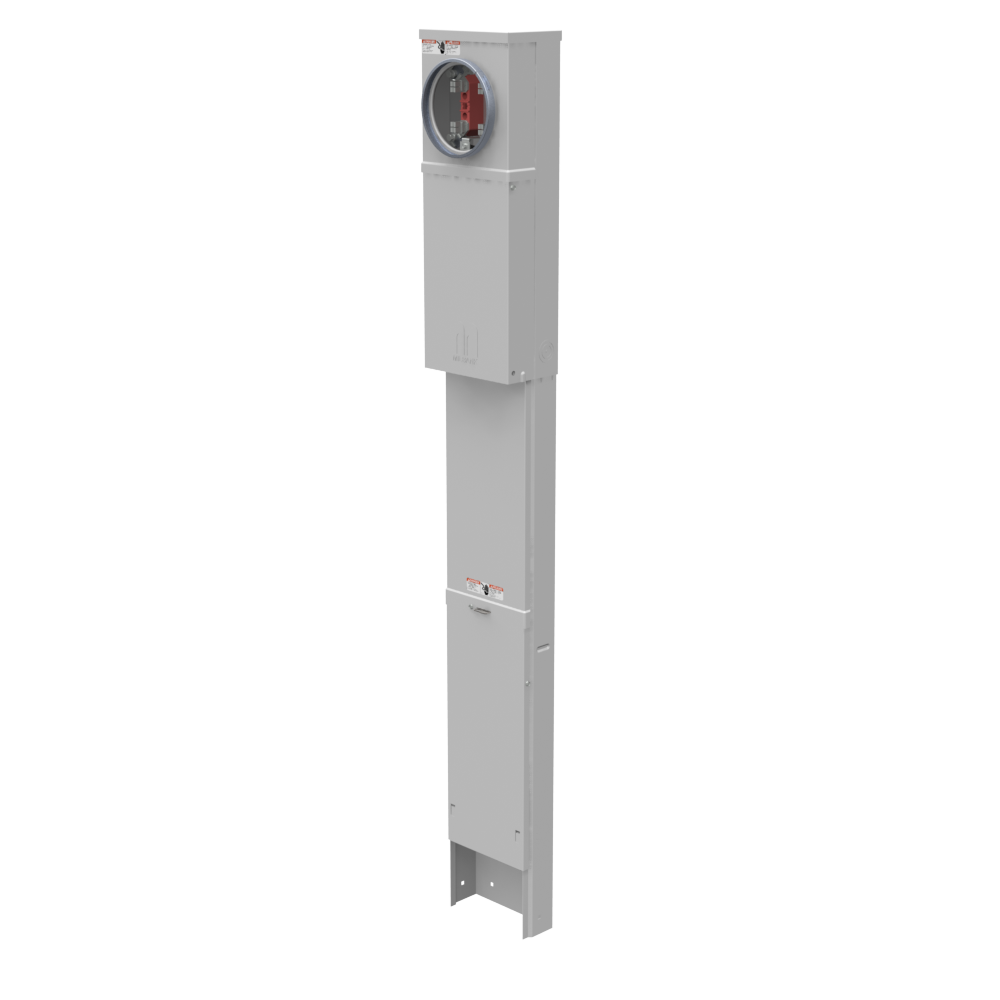

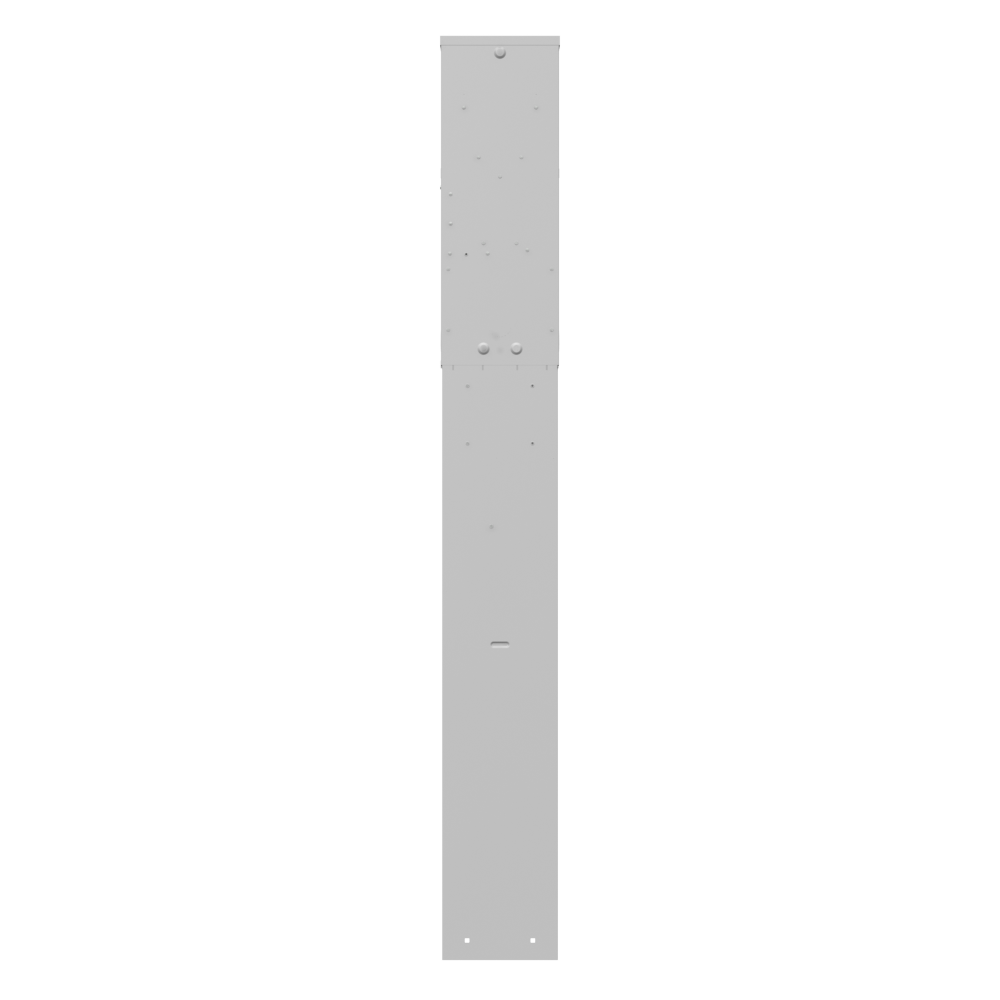

Type: Ring Type Meter Socket

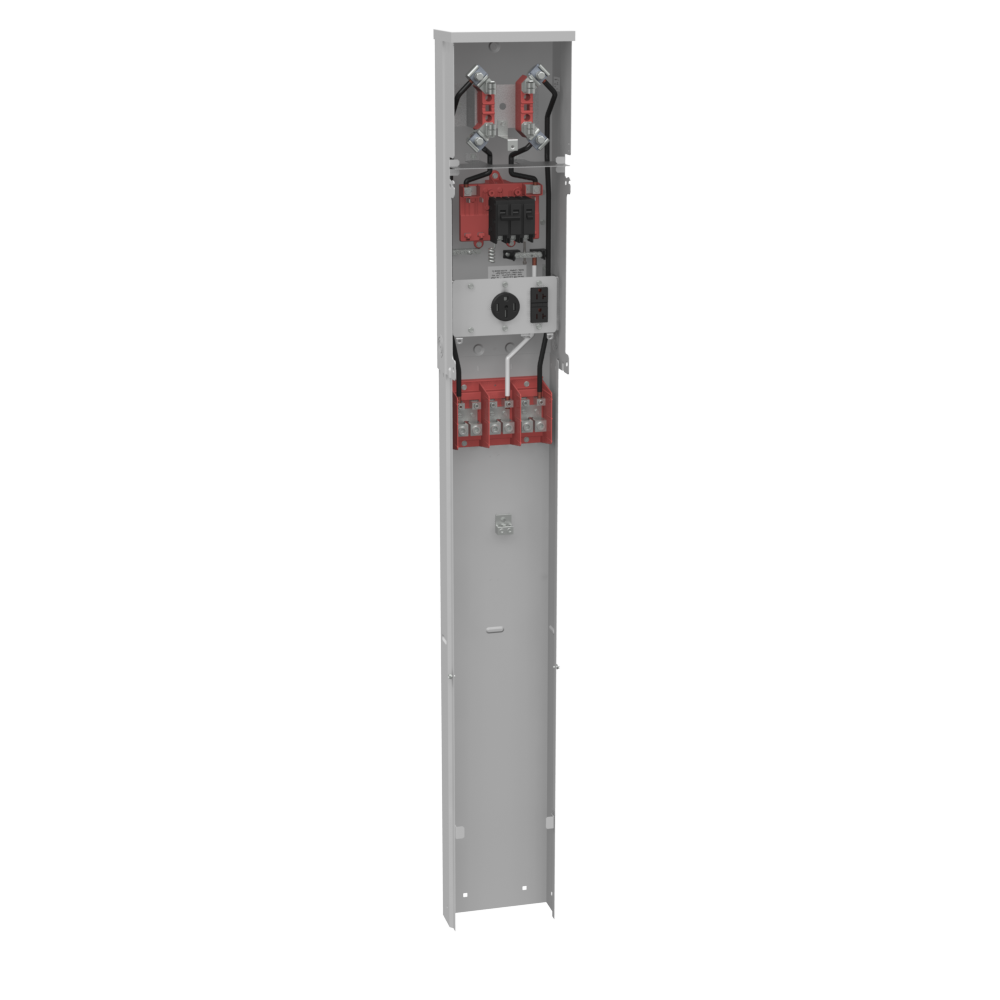

Special Features: One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker
Application: RV Power
Standard: UL Listed;Type 3R
Voltage Rating: Up to 240 Volts Alternating Current
Amperage Rating: 125 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 5.313L x 8.688W x 70.25H
Number Of Cutouts: 2
Cutout Size: One Single Pole 20 Ampere Breaker and One Double Pole 50 Ampere Breaker
Cable Entry: Underground
Terminal: Double Mechanical
Insulation: Glass Polyester
Mounting: Pedestal
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: Single Power Head
Equipment Ground: 2 Barrel Ground Lug and Ground Bar
Hub Opening: Plain Top
Line Side Wire Range: 6 AWG – 350 kcmil
Number Branch Circuits: 3
Number Of Receptacles: 2
Receptacle Configuration: One NEMA 14-50 and One NEMA 5-20 Ground Fault
