Catalog Number: U5953-O-41
UPC: 784572606012
Length (IN): 9.438
Width (IN): 8
Height (IN): 46
Brand Name: Milbank

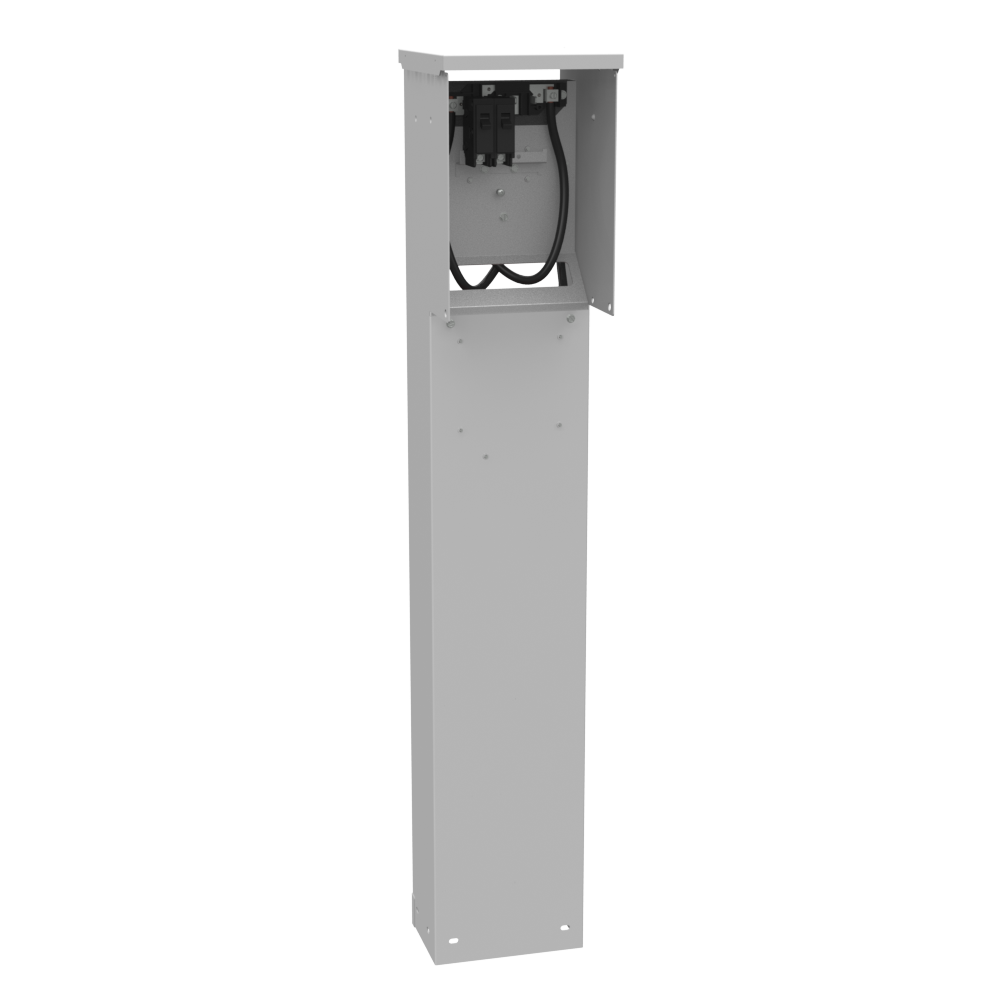

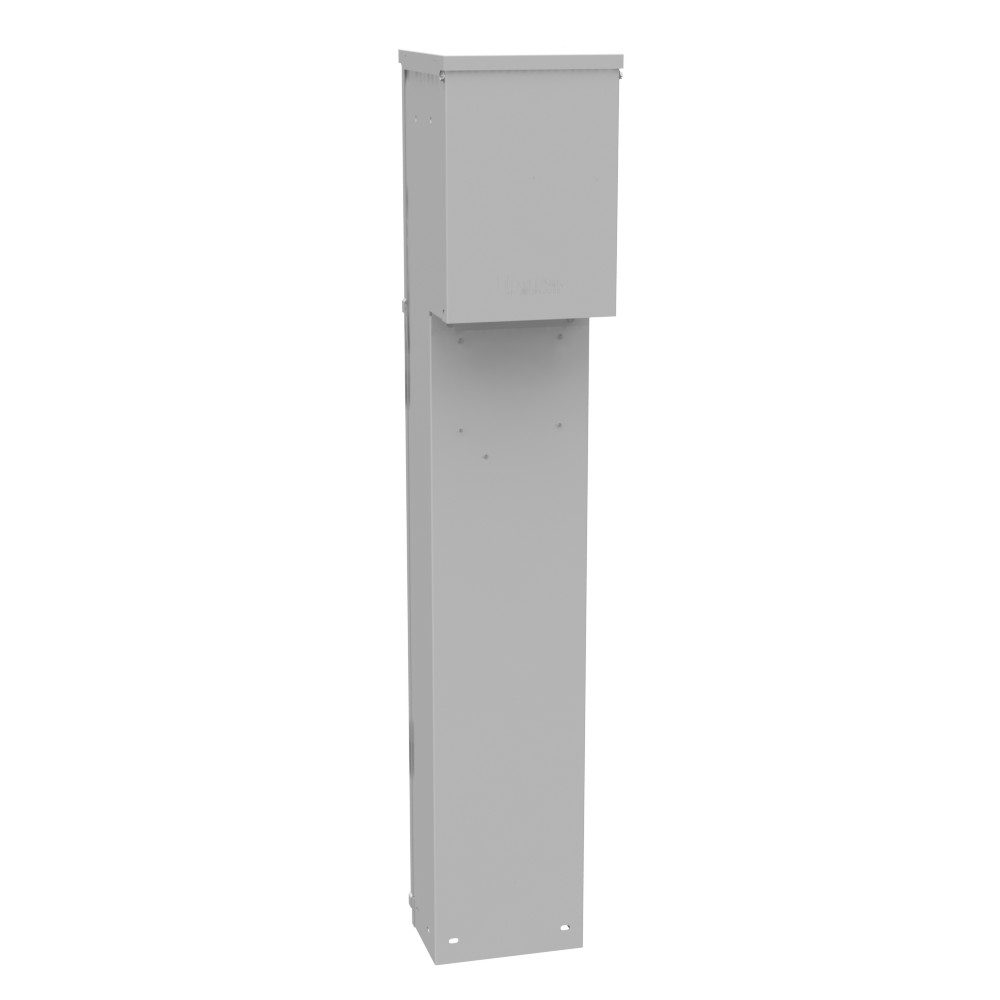

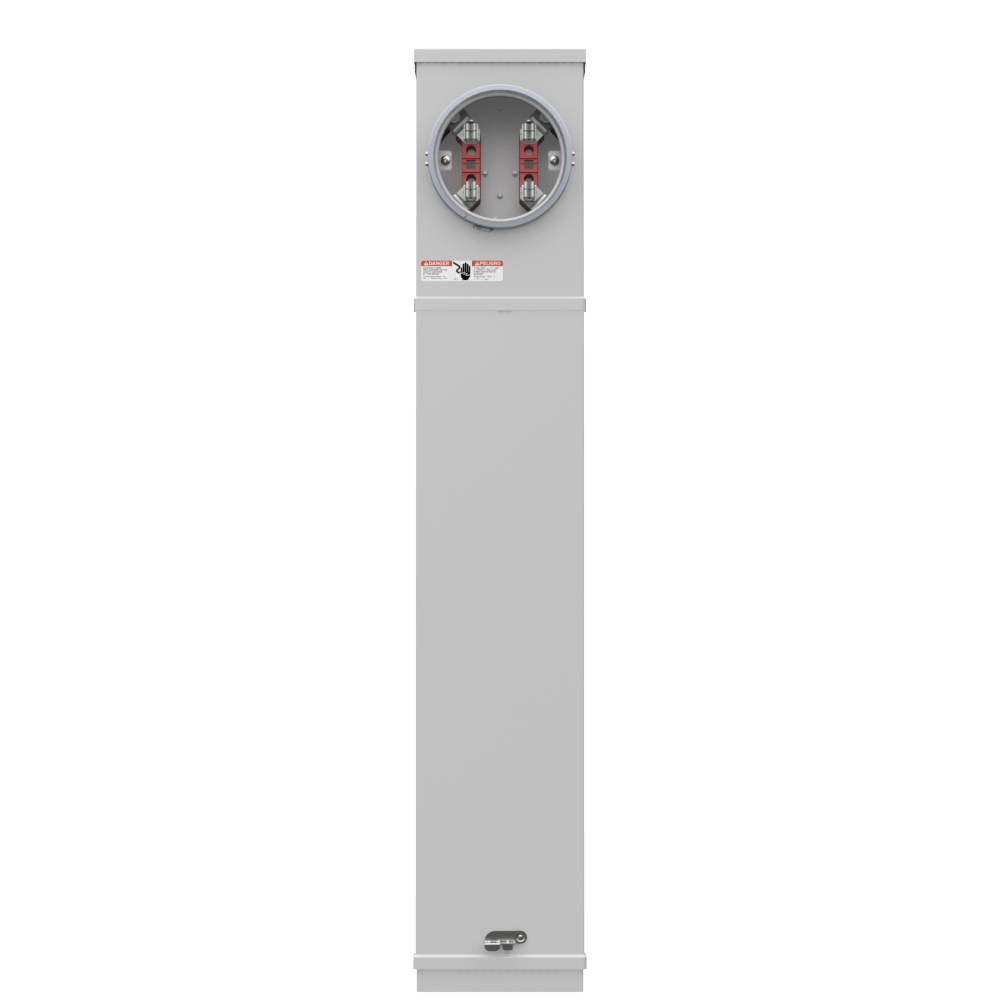

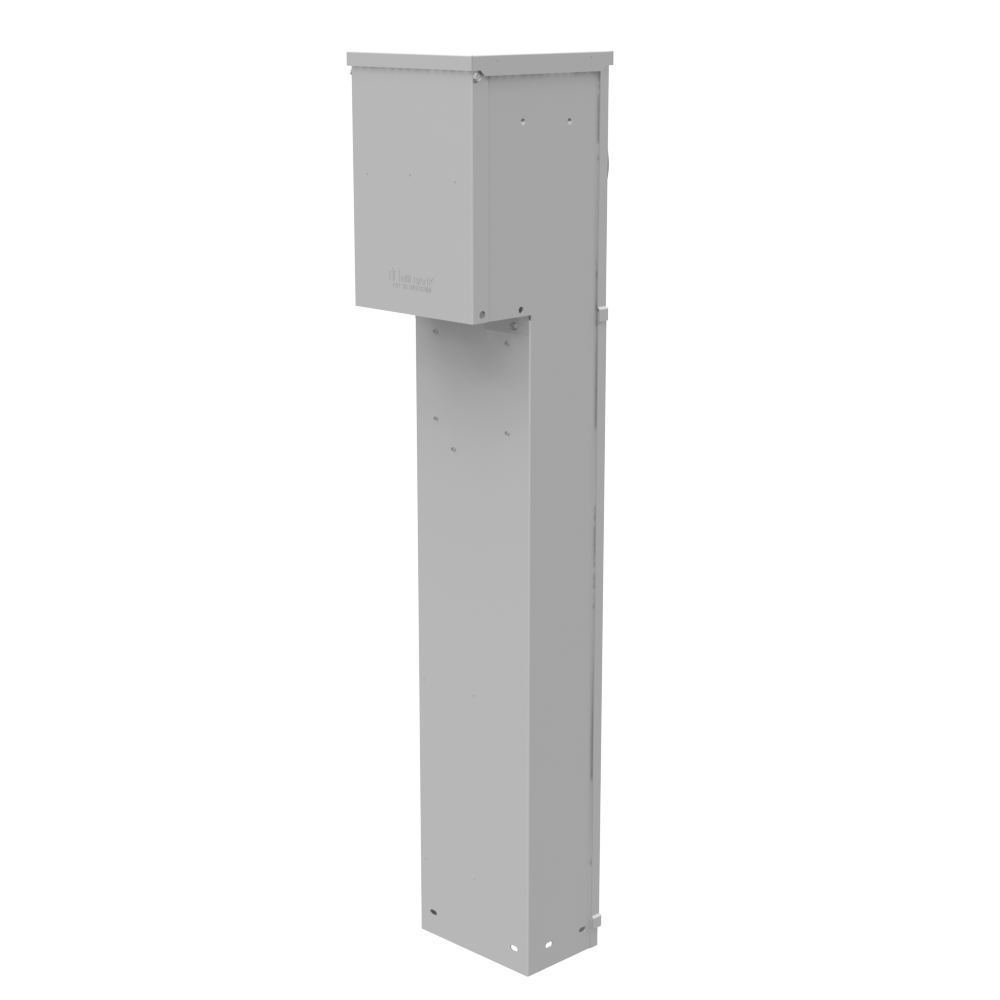

Type: Ring Type Meter Socket
Special Features: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker
Application: RV Power
Standard: UL Listed;Type 3R
Voltage Rating: Up to 240 Volts Alternating Current
Amperage Rating: 100 Continuous Ampere
Phase: 1 Phase
Frequency Rating: 60 Hertz
Size: 9.438L x 8W x 46H
Number Of Cutouts: 2
Cutout Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker
Cable Entry: Underground
Terminal: Double Mechanical
Insulation: Glass Polyester
Mounting: Pedestal
Enclosure: G90 Galvanized Steel with Powder Coat Finish
Jaw Quantity: 4 Terminal
Bypass Type: No Bypass
Number of Meter Positions: Single Power Head
Equipment: Ground 2 Barrel Ground Lug and Ground Bar
Hub Opening: Plain Top
Number Branch Circuits: 4
Number Of Receptacles: 2

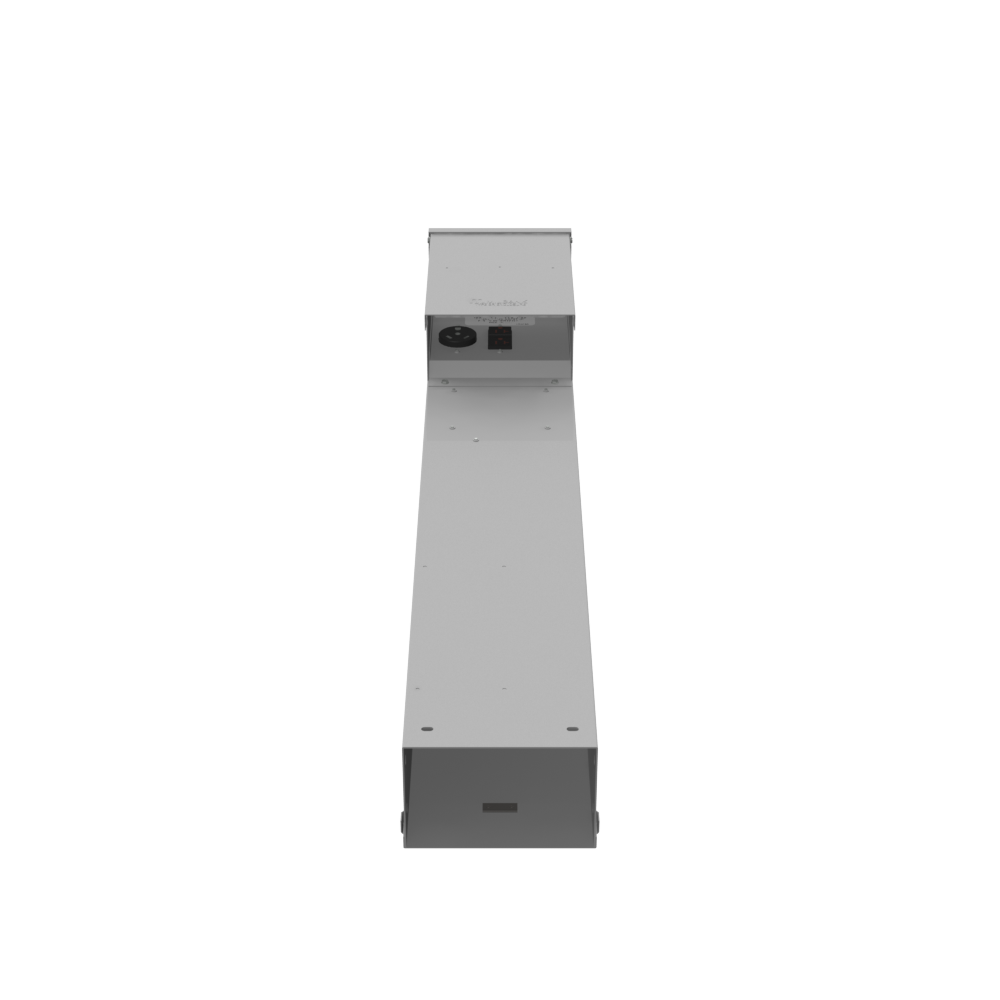

Receptacle Configuration: One NEMA TT30 and One NEMA 5-20 Ground Fault
