Description

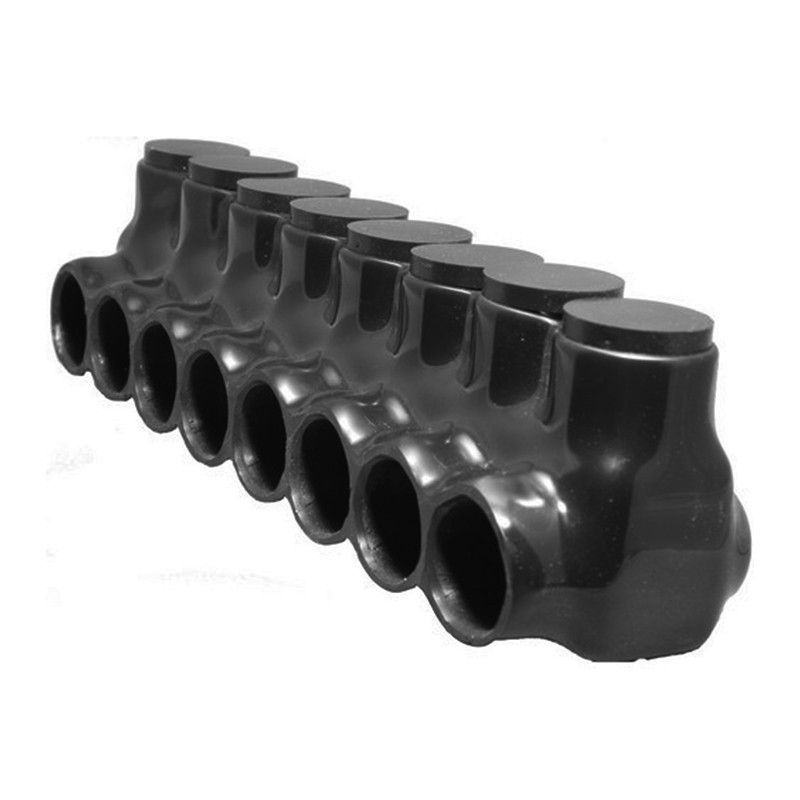

LS Performance 97568 Black Insulated Multi-Cable Connector Single Entry 8 Ports 600 – 250
Product Specifications:
Brand: LS Performance
Part Number: 97568
Wire Range: 600 – 250
Wires Enter the Same Side of the Connector
Insulated with rugged high-dielectric Rubber/Vinyl Coating
Pre-Filled with Oxide Inhibitor
Single Side Entry Cable Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
Easy Re-Entry for Changes, Inspection or Troubleshooting
Plugs Marked with Connector Max Wire Size for easy identification
One wire per terminal
Temperature Range of –49°F to 194°F (–45° to 90°C)
ANSI C119.4 & cULus 486b Listed thru 750MCM
Rated for use with 194°F(90°C Cables)
600 Volt
