Description

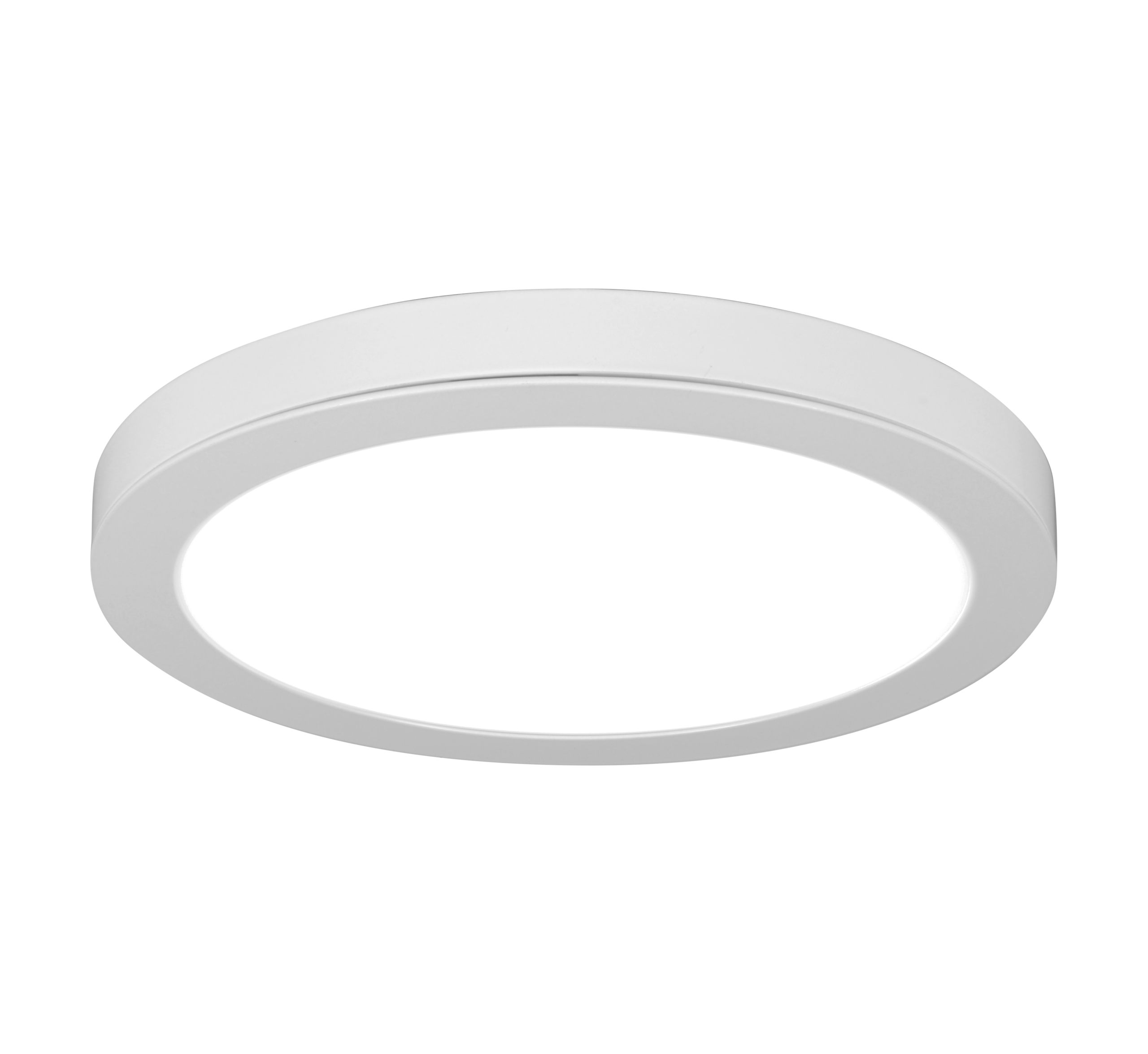

DSE Series Edge-Lit Selectable LED Surface-Mount, 11-inch, Version 3.0, 120VAC, with Selectable CCT (2700K-3000K-3500K-4000K-5000K), Round, with White finish.
Product Specifications:
Brand: Nicor Lighting
Part Number: DSE113120SRDWH
Size (in.): 11in
Shape: Round
Product Color: White
Finish: Matte
Primary Material: Injection-Molded Polymer Housing
Secondary Material: Aluminum Backplate
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Voltage (Input): 120VAC
Wattage: 15.9
Wattage Equivalent: 100
Lumen Output: 1523 (2700K), 1552 (3000K), 1569 (3500K), 1601 (4000K), 1588 (5000K)
Lumens Per Watt: 95.8 (2700K), 97.6 (3000K), 98.7 (3500K), 100.7 (4000K), 99.9 (5000K)
Color Temperature (CCT): 2700K 3000K 3500K 4000K 5000K Selectable
CRI: 90+
Light Source: LED
Output Technology: CCT Select
Dimmable?: Yes
Dimming Type: TRIAC, ELV
Dimming Range: Down to 5%
Compatible Dimmers: Lutron Skylark SCL-153P, Lutron Skylark SELV-300P, Lutron Diva DVCL-153P, Lutron Maestro MAELV-600, Lutron Diva DVELV-300P
Beam Angle: 113.6°
Spacing Criteria: 1.28
L70 Lifespan (Hours): >54,000
Listings/Certifications: cETLus Intertek Listed, ENERGY STAR Certified, TAA Compliant, Title 24, JA8, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), RoHS Compliant, FCC Class B, Wet-Location (ETL 1598)
Other Certifications: Testing performed in accordance with IESNA standards, Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use, Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated, emissions per ANSI C63.4:2014
Performance by Color Temperature:
| CCT | Lumens | Lumens/Watt |
|---|---|---|
| 2700K | 1523 | 95.8 |
| 3000K | 1552 | 97.6 |
| 3500K | 1569 | 98.7 |
| 4000K | 1601 | 100.7 |
| 5000K | 1588 | 99.9 |
