Description

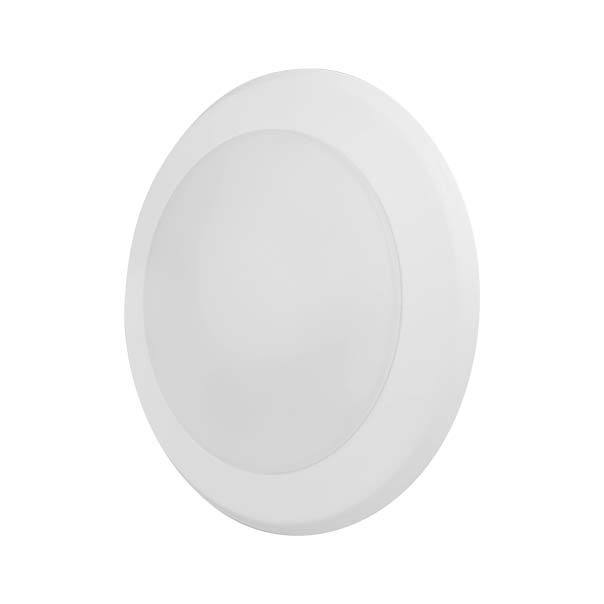

RCD Series Low-Profile Surface Mount LED Disk Light, 6 inch, Version 1.0, 120VAC, Selectable color temperature (2700K/3000K/3500K/4000K/5000K), 90 CRI, White finish.
Product Specifications:
Brand: Nicor Lighting
Part Number: RCD61120S9WH
Size (in.): 6in
Shape: Round
Product Color: White
Finish: Powder Coat
Primary Material: Stamped Steel Body
Secondary Material: Polymer Diffuser
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
Voltage (Input): 120VAC
Wattage: 15W
Wattage Equivalent: 75
Lumen Output: 910 (2700K), 977 (3000K), 1056 (3500K), 1060 (4000K), 1020 (5000K)
Lumens Per Watt: 60.7 (2700K), 65.1 (3000K), 70.4 (3500K), 70.7 (4000K), 68 (5000K)
Color Temperature (CCT): 2700K 3000K 3500K 4000K 5000K Selectable
CRI: 90+
R9: >50
Light Source: LED
Output Technology: CCT Select
Dimmable?: Yes
Dimming Type: TRIAC, ELV
Dimming Range: Down to 10%
Compatible Dimmers: Lutron Diva DVCL-153P
Beam Angle 0: 111.8°
Beam Angle 90: 112.1°
Spacing Criteria: 1.24
L70 Lifespan (Hours): >60,000
Listings/Certifications: cETLus Intertek Listed, Title 24, JA8, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), RoHS Compliant, FCC Class B, Wet-Location (ETL 1598)
Other Certifications: LM-79, LM-80 testing performed in accordance with IESNA standards
Performance by Color Temperature:
| CCT | Lumens | Lumens/Watt |
|---|---|---|
| 2700K | 910 | 60.7 |
| 3000K | 977 | 65.1 |
| 3500K | 1056 | 70.4 |
| 4000K | 1060 | 70.7 |
| 5000K | 1020 | 68 |
